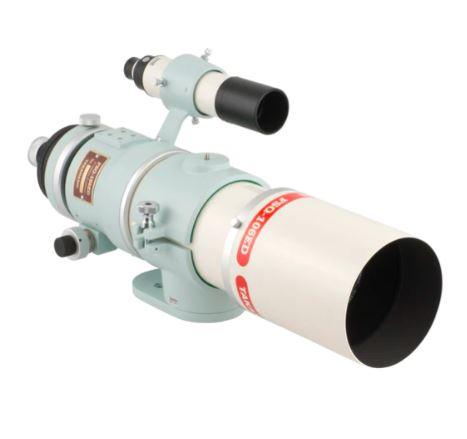

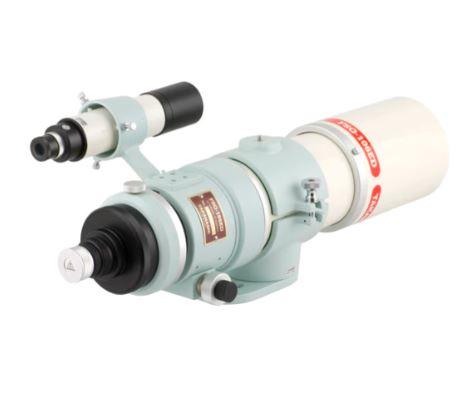

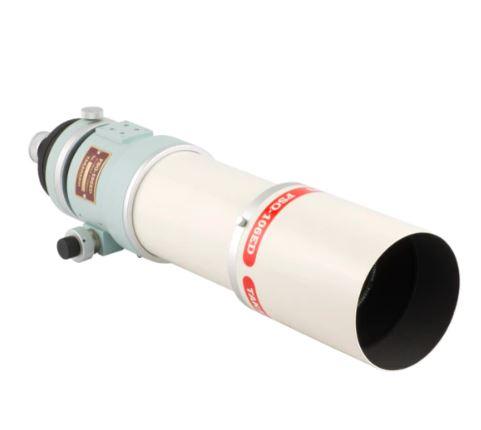

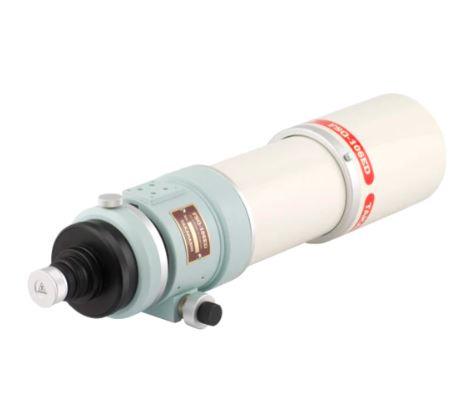

Takahashi FSQ-106EDX4 Quad APO f/5.0
The Takahashi FSQ-106EDX4 is a redesign of the popular FSQ-106 and is a superior flat-field super quadruplet refractor. This redesigned version features a flat field advanced Petzval quadruplet design, with extra-low dispersion (ED) glass for super color correction in the UV, visible and IR wavelengths. This optical design results in pin point star images and increased field illumination. Designed from the ground up for digital imaging, this new 4 element / 4 group design is also capable of stunning visual performance.
Some of the features of this outstanding design include:
- Completely new optics for digital imaging, featureing two premium ED elements for outstanding color correction
- An advanced Petzval design includes an almost full aperature G3 lens to ensure greater image illumination
- A flat field without the need for an additional flattener, across a large 88 mm image circle
- Generous 178 mm back focus allows the user to attach a variety of imaging cameras and accessories, 2 inch diagonals, and many other visual devices including bino viewers.
- A 4 inch, heavy duty focuser with a an included camera angle adjuster for precise rotation of CCD cameras
- An anti-torquing draw tube that uses a second rack located on the top of the tube and loaded with ball bearings to prevent any rotation when a heavy instrument package is attached.
- Airline portable, with a total length of less than 17 inches with the lens shade retracted
Optical Tube Assembly only (mount, tripod, tube holder and finder sold separately).
Technical Specifications
Aperture |
106mm |
Focal Length |
530mm |
Focal Ratio |
f/5.0 |
Optical Type |
Double ED Quadruplet |
Resolution |
1.09″ |
Limiting Magnitude |
11.9 |
Light Gathering Power |
229x |
Tube Diameter |
125mm |
Tube Length (with lens hood retracted) |
675mm |
Tube Weight |
7.0kg |
Metal Back Distance |
178.0mm |
Image Circle |
88mm |
In the Box
FSQ-106EDX4 OTA (mount, tripod, tube holder and finder sold separately)
Manual & Warranty
Takahashi 5-Years Warranty
Takahashi FSQ-106EDX4 Spot Diagrams
Takahashi Telescope Specifications
Takahashi Adapter Specifications
System Charts
Takahashi FSQ-106EDX4 Photo/Visual System Chart
