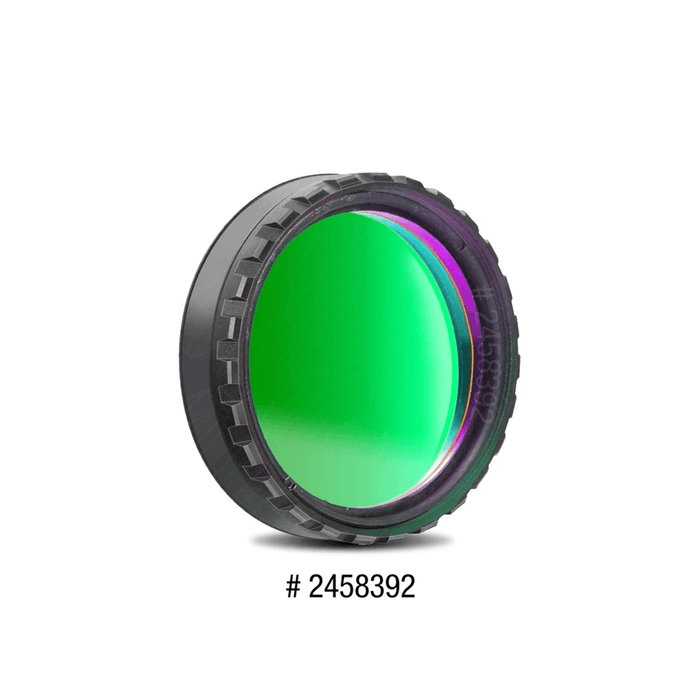

Baader Solar Continuum Filter 1¼" (double stacked)
- 1¼" Double Stacked Baader Solar Continuum Filter. 8nm / CWL 540nm.
- Includes 1x AstroSolar® Photo Film OD 3.8 20x29 cm. The filter includes two Baader Solar Continuum Filters in a single filter cell which have been stacked for even higher contrast.
- Enhances the contrast and reduces the effect of atmospheric turbulence.
- This filter must be used in conjunction with a Baader Herschel Wedge or Baader AstroSolar® Safety Film 5.0 (not included) for visual solar observations otherwise permanent visual and equipment damage may occur. The included Baader AstroSolar® Photo Film 3.8 must never be used for visual observation but only for solar photography (e.g. lucky imaging).
The new Baader Solar Continuum filter is designed to enhance the visibility of solar granulation and sunspot details. By transmitting a specific spectral region around 540nm, free of emission and absorption lines, the Solar Continuum filter is able to boost contrast and reduce the effects of atmospheric turbulence. With the Solar Continuum filter in place, images snap to focus, and granulation becomes regularly visible. Details at the limit of visibility become easier to hold, and image motion reduced.
The Solar Continuum filter works well in all types of telescopes, for both visual and imaging. Users of SCTs and achromatic refractors will find it particularly beneficial, as it completely excludes the red and blue wavelengths, and centers on the peak visual wavelengths where the telescope optics are sharpest and free from chromatic aberrations. For digital imaging, we also recommend the Continuum filter be combined with our UV/IR Cut Filter (to completely cut the defocused far infrared wavelengths).
The Solar Continuum filter also makes the perfect star test filter. It's narrow bandpass and complete blockage of longer and shorter wavelengths make it superior to standard green colored filters for testing refractors at their center design wavelength (and peak visual wavelength). With this filter, more accurate appraisals of optical quality can be made, without the effects of spherochromatism or secondary color error. Due to the narrow 10nm bandpass, star testing through the Solar Continuum filter will require a bright test star.
As with all Baader Planetarium Filters, the Solar Continuum possesses all the trademark Baader filter qualities. Optical, Physical, and Mechanical quality are superb. For a summary of filter features, please see the Filters page.
The combination of AstroSolar® Photo Film 3.8 and Solar Continuum filter is used exclusively for photography of the sun at high magnifications. This combination is highly apt to capture the finest solar surface detail and granulation at extremely high magnification while enabling ultra-short exposure (measured in milliseconds) in order to freeze atmospheric turbulence.
Please Note: For safe use, the Solar Continuum filter must be used in conjunction with a primary solar filter (ie, Herschel Wedge Prism, or Baader AstroSolar Film). It must be placed After the primary filter, and cannot be used alone, or permanent eye and equipment damage will result.
Technical Specifications
1.25"
| MANUFACTURER |
Baader Planetarium |
| SKU (#) |
2458390 |
| EAN CODE |
4047825009395 |
| WEIGHT (KG) |
0.059 |
| TRANSMISSION RANGE |
535 – 545 nm |
| FILTER THICKNESS (WITHOUT CELL) |
2 mm |
| HBW (HALFBANDWIDTH) |
10nm |
| CWL (CENTRAL WAVELENGTH) |
540 nm |
| AR-COATING |
dielectrically coated, planeoptically polished |
| FILTER SIZE |
1 25 inch |
| FILTER USAGE |
Contrast Enhancement, Solar |
| FILTER MOUNTED |
Mounted (LPFC 6mm) |
| TYPE OF FILTER |
Narrowband |
| SINGLE OR SET? |
Single Filter |
| FILTER SHAPE |
round |
In the Box
- Baader Planetarium Double Stacked Solar Continuum Filter - 1.25"
Warranty & Manuals
2-Year Warranty
