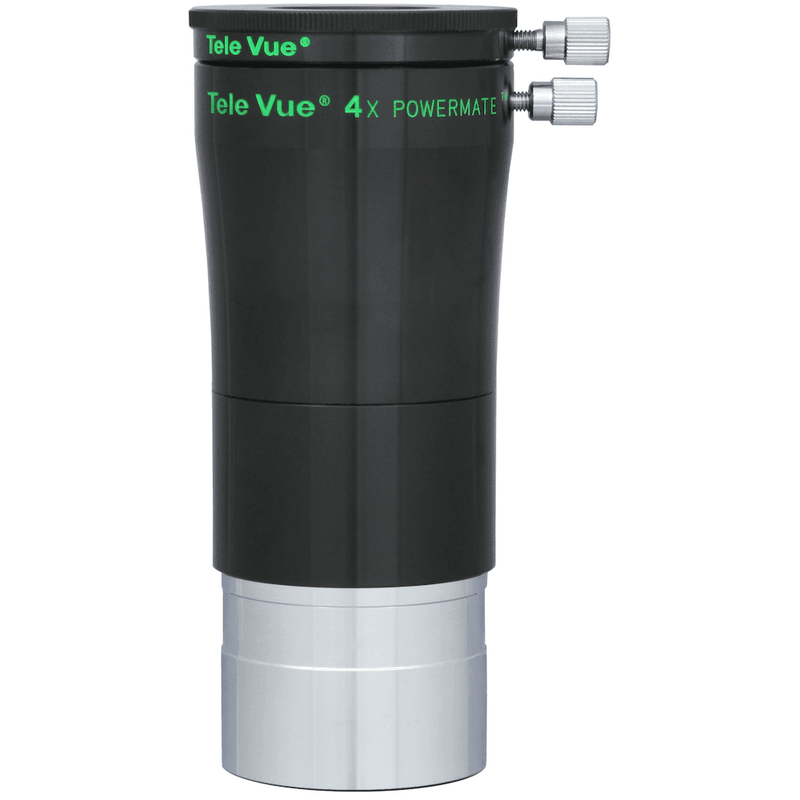

Tele Vue 4.0x 2" Powermate (PMT-4201)

Tele Vue 4.0x 2" Powermate

The Tele Vue 4.0x 2″ Powermate is a better choice for 2″ diagonals than Barlows, since it’s nearly parfocal. It is threaded for 48mm filters and its performance is excellent with every 1¼” and 2″ eyepiece we make (yes, even the 31mm Nagler Type 5!). Both the 2″ eyepiece holder and the special 2″ flat top adapter use our brass clamp rings for secure operation. And, it also has a very unique feature: you can unscrew the 2″ eyepiece housing and screw on a special T-ring adapter for solid, compact attachment of CCD or camera equipment.

Excellent with long eye-relief, 2″ eyepieces. Using the 4x model, imagine the quality of a 35mm Panoptic at 8.8mm with 25mm of eye relief! The Powermate™ is NOT a Barlow so the Panoptic-Barlow Interface is not needed! The 2″ Powermate™ fits all the way into 2″ Star Diagonals, requiring minimal refocus compared to a 2″ Barlow.

"While Barlows are powerful tools, the negative element defining them also limits their ability. The simple negative element Barlow increases eyepiece eye-relief. With short focal length eyepieces the effect is negligible. However, on long focal length eyepieces the exit pupil position moves well beyond the designer’s intended position, resulting in vignetting with many eyepieces. This is why “Shorty” Barlows in particular, with their strong negative element often vignette and degrade long focus eyepieces. My 4-element form picks up where the Barlow concept can go no further. Powermate™ is a technically universal solution, using a positive field lens to redirect field rays. The result is an exit pupil that stays where the eyepiece designer intended. With freedom from aberrations, greater magnification potential, and compact size, I hope you’ll agree Powermate™ raises the standard for image amplification." — Al Nagler

Al Nagler’s 4-element concept, continues the tradition of full-field sharpness with optimum aberration control. Like long eye-relief? Retain the eye-relief of long focal length eyepieces, while at high power. Enjoy, for example, the sharpness and comfort of the 32mm Plössl at up to 5 times the power!

Powermate™ vs. Barlow

To understand the Powermate™, we must first understand the Barlow lens. Barlows amplify the power of a telescope. They can be considered “focal reducers” for eyepieces, or “focal extenders” for objectives. Terence Dickenson, in his Barlow test report in Sky and Telescope, July 1997, says: “Technology has erased the old objections. A modern Barlow will not degrade your telescope’s optics. Anyone telling you otherwise is using outdated information. Moreover, the highly regarded Nagler eyepieces and their clones have built-in Barlows, ample evidence that the lens is not some detrimental intruder.” Thanks, Terence, for laying the myth of the degrading Barlow to rest.

A high quality Barlow must be properly designed and manufactured in order to avoid compromising a telescope’s color and spherical aberration corrections. The “invisibility” of Tele Vue’s 2-element Barlows has been noted in test reports in the astronomy magazines. However, by the nature of its negative power lens, a Barlow will do more than just increase magnification, regardless of the number of elements.

The diverging rays leaving the Barlow result in moving the exit pupil further out, thereby extending the eye relief. In short to medium focal length eyepieces the change is not noticeable. However, in the case of long focal length eyepieces, the increase can be significant and not without performance consequences.

Vignetting can occur due to the altered ray path, when the eyepiece’s lenses are not large enough in diameter to allow all the rays to make it through. Shorter Barlows, or ones with too much magnification, only exacerbate the problem because the ray path entering the eyepiece is steeper.

We had to go beyond the Barlow concept to achieve the goal of a compact, high power, fully corrected image amplifier. The Powermate™ consists of a negative doublet plus a positive “pupil-correcting” doublet. This 4-element system provides the magnifying function of a Barlow without its limitations by restoring the field rays back to their original direction, as if the Powermate™ were not there. The result is a pure magnification increase.

Unique Benefits and Applications for Powermates™

1. Vignetting, edge field aberrations and pupil movement – all introduced when using Barlows with long focal length eyepieces, are minimized.
2. Telecentric operation (field rays leave parallel to optical axis, unlike Barlow lenses which diverge rays). This is ideal for Hydrogen-alpha filter use such as with Daystar models.
3. High performance for image amplification, CCD or film (some of the finest Earth-based planetary imaging is being done with Powermates™).
4. Flexible for visual and imaging with all types of telescopes and eyepieces. Essentially Parfocal, and with nearly constant magnification regardless of image distance behind top surface (except 5x model which increases 1x for every 35mm of image distance increase).
5. Higher magnifications are possible with high optical performance compared to “doubling up” Barlows.
6. All will reach parfocal point in star diagonals, except for the 2″, 2x which comes very close.

In addition to full multi-coating, Powermates™ include other Tele Vue special touches such as safety undercuts where practical on the chrome barrel and captive lock screws that can’t fall out, and filter threads. Our 100% QC program at f/4 insures that Powermates™ will add dramatic power (and NOTHING ELSE) to your favorite eyepieces.

If, for example, you own a 24mm Panoptic, you’ll have the power of a 12mm focal length eyepiece with the 2.0x Powermate™, 9.6mm with the 2.5x Powermate™, a 6mm with the 4x Powermate™, or a 4.8mm with the 5x Powermate™!

Note for Dobsonian/Newtonian Owners : When using Tele Vue's Paracorr coma corrector, the 2.5x or 5x Powermate™ should be inserted into the Paracorr's 1¼" adapter (i.e., between the Paracorr and the eyepiece). For 2x and 4x 2" Powermates™, first insert the Powermate™ into the focuser, then the Paracorr into the Powermates™.
