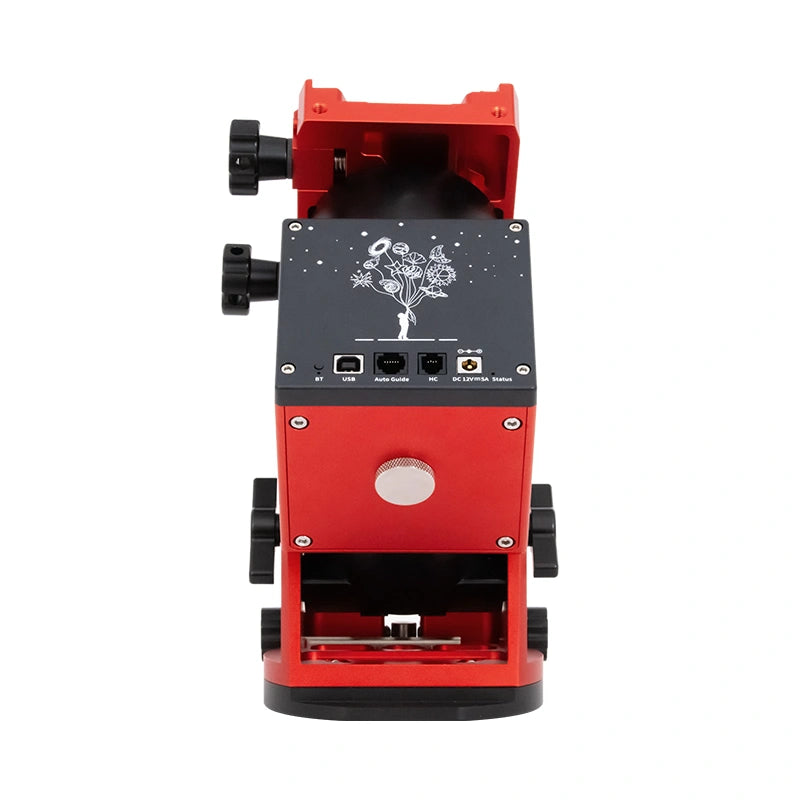

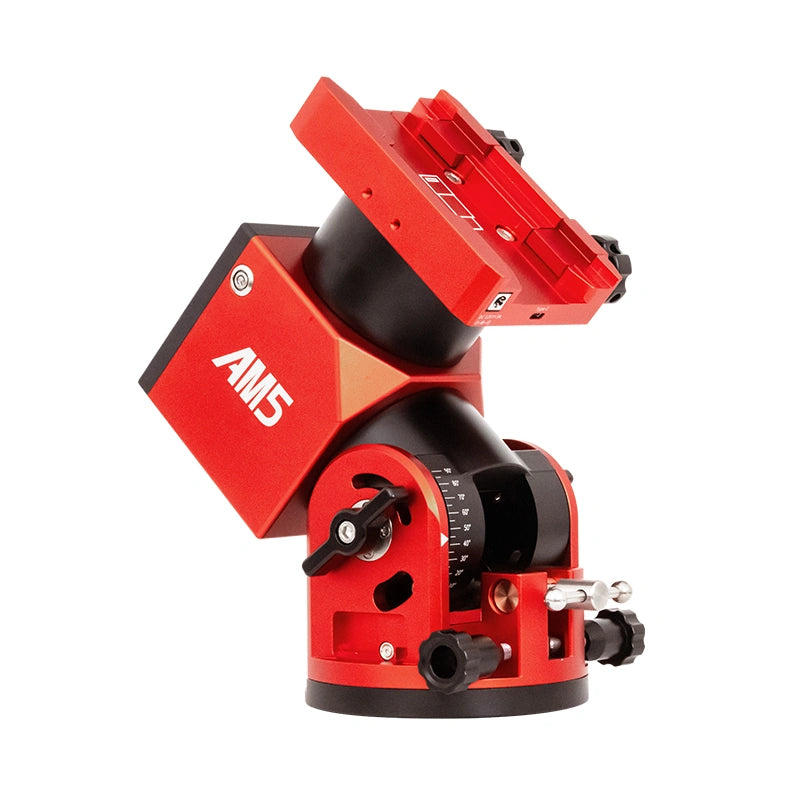

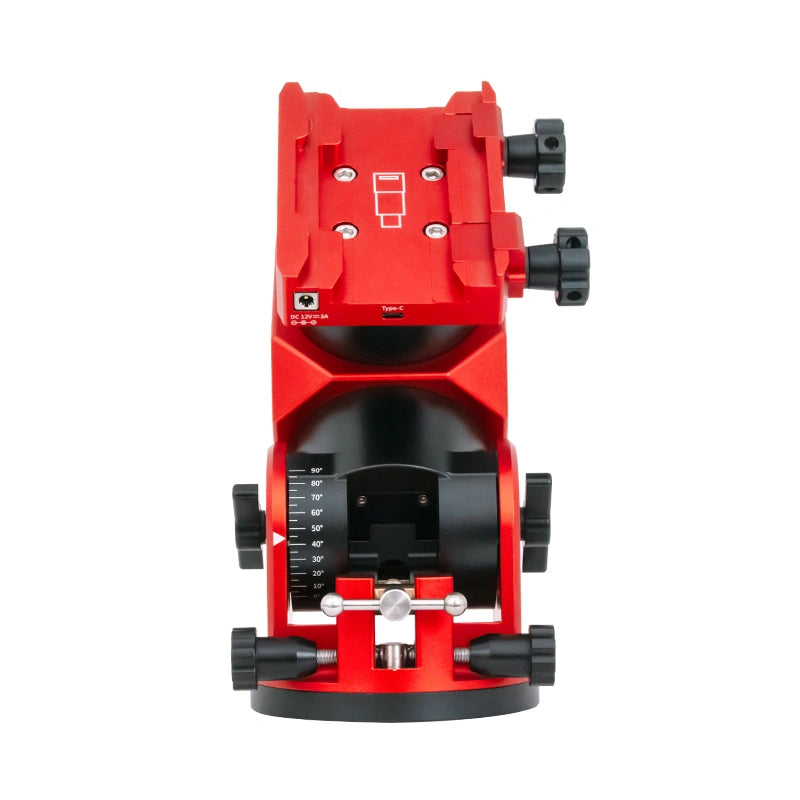

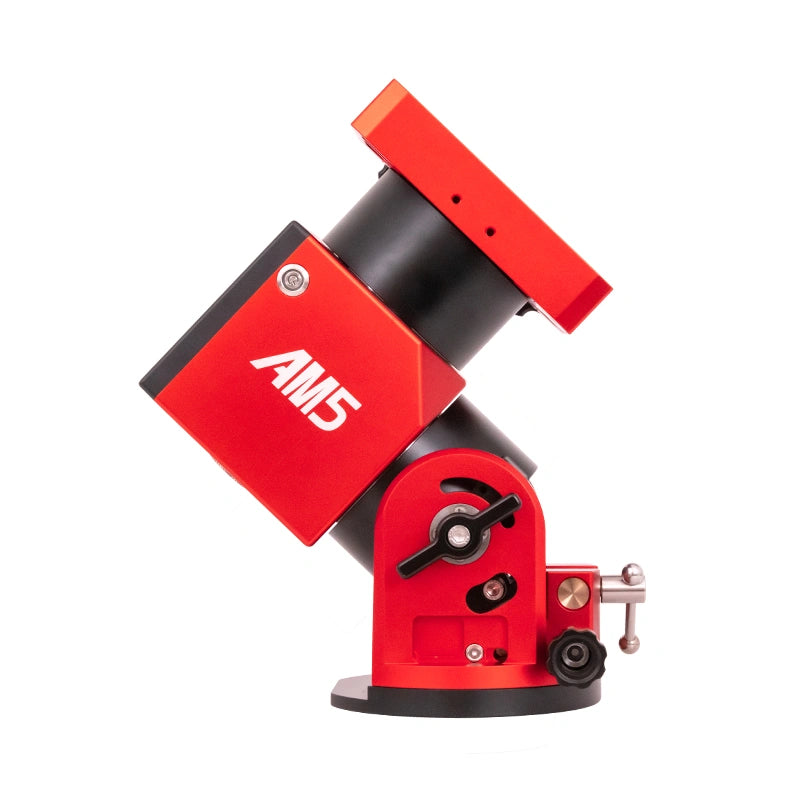

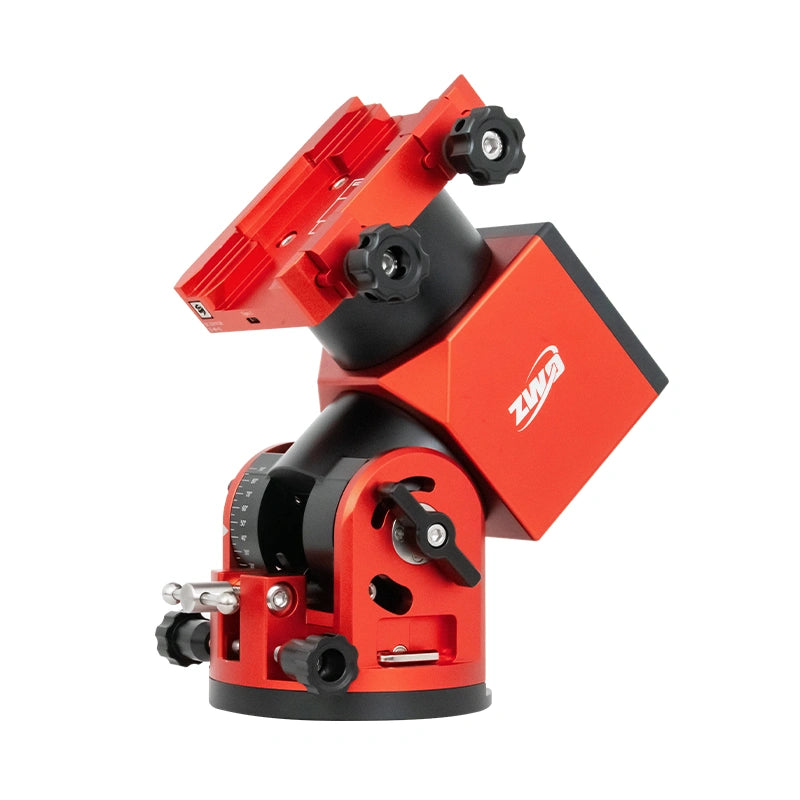

ZWO New AM5N Harmonic Equatorial Mount (AM5N)
More on the Way !!!
While the product may not be available right now, have no fear! The next shipment is on its way to us! We expect to receive it really soon.
Reserve yours now !
More on the Way !!!
While the product may not be available right now, have no fear! The next shipment is on its way to us! We expect to receive it really soon.
Reserve yours now !
The ZWO AM5N Harmonic Equatorial Mount enables the user to accurately observe celestial objects with its high-precision tracking.















*Note: The recommended operating voltage for the ZWO Harmonic Equatorial Mount is 12V. When the actual input voltage is below 10.8V, the mount will emit a beeping alarm to indicate under-voltage condition. To ensure proper functioning of the equipment, we recommend using the official ZWO power adapter and an appropriately sized power cable.
| Parameter | Specification |
|---|---|
| Mount type | Harmonic Drive Mount |
| Mount mode | Equatorial/Alt-Azimuth |
| Drive | Strain Wave Gear + synchronous belt (300:1 reduction ratio) |
| Periodic error | < ±10" |
| PE duration | 288s* |
| Drive (RA) | Stepper motor + synchronous belt + 17 type 100 reduction ratio strain wave gear + brake |
| Drive (DEC) | Stepper motor + synchronous belt + 17 type 100 reduction ratio strain wave gear |
| Payload | 15kg (without counterweight) / 20kg (with counterweight) @25cm |
| Mount weight | 5.5kg |
| Latitude adjustment range | 0° - 90° |
| Azimuth adjustment range | ±6° |
| Dovetail saddle | Losmandy & Vixen |
| Interface thread for counterweight bar | M12 × 1.75 coarse teeth |
| Resolution | 0.17" |
| Max slew speed | 6°/S |
| Slew speed | 0.5x, 1x, 2x, 4x, 8x, 20x, 60x, 720x, 1440x |
| Power port | DC5.5 - 2.1 (12V - 3A) |
| Power consumption | Standby: 12V/0.5A, Tracking: 12V/0.7A, GOTO: 12V/1.2A |
| Auto Guide port | ST4 |
| Communication | USB/Wi-Fi/Bluetooth |
| Zero position | Mechanical |
| Operating | -20°C - 40°C |
| Power-off brake | RA axis |
| Cable Management | Support |
Great! Looking forward to trying it in the field.
Integrates with NINA just fine.
Awesome mount.It's such a game changer in astrophotography.Expensive but well worth the price. Also Astronomy Plus amazing services as usual!
The AM5N mount is a fabulous device, making stargazing simpler and more enjoyable. There thousands of objects in its database, and one can add any number of new targets (e.g. comets) and click "goto" and it'll take you there effortlessly. Easy to get gong, seamlessly integrated with ASIAIR Plus and its respective app.
For years, I've been doing the "hunter & seeker" approach, manually targeting which remains fun, but the AM5N certainly adds another dimension to stargazing and astrophotography.
I am getting better RMS guiding values than with my heq5 and it is lighter and easier to move and setup. I am keen to travel to other locations to do AP.
Very solid mount, well made, easy to use, good tracking
