Components of C2 Camera system include:

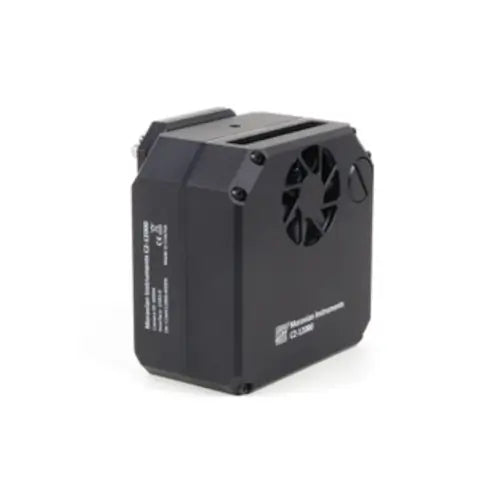

1. C2 camera head with Internal Filter Wheel (5 or 6 positions)

2. C2 camera head capable to control External Filter Wheel

3. External Filter Wheel “XS” size (7 or 8 positions)

4. External Filter Wheel “S” size (10 or 12 positions)

5. C1 guider camera

   Remark:

   C1 cameras are completely independent devices with their own USB connection to the host PC. They can be used either on C2 OAG or on standalone guiding telescope.

   C1 cameras can share the Moravian Camera Ethernet Adapter with up to 3 other Cx cameras to be accessed over TCP/IP network.

6. Off-Axis Guider with M48 × 0.75 thread

7. Off-Axis Guider with M42 × 0.75 thread (T2)

8. Thick adapter base, compensating EFW thickness to achieve proper back focal distance for cameras without filter wheel

9. 1.75” dovetail rail for C2 camera head

10. Camera Ethernet Adapter (x86 CPU)

11. Camera Ethernet Adapter (ARM CPU)

    Remark:

    Moravian Camera Ethernet Adapter allows connection of up to 4 Cx cameras of any type on the one side and 1 Gbps Ethernet on the other side. This adapter allows access to connected Cx cameras using routable TCP/IP protocol over unlimited distance.

12. 5-positions internal filter wheel for 1.25”/D31 mm filters

13. 6-positions internal filter wheel for 1”/D27 mm filters

14. 8-positions external filter wheel “XS” for 1.25”/D31 mm filters

15. 7-positions external filter wheel “XS” for D36 mm filters

16. 12-positions external filter wheel “S” for 1.25”/D31 mm filters

17. 10-positions external filter wheel “S” for D36 mm filters

18. 7-positions external filter wheel “S” for 2”/D50 mm filters

19. M42 × 0.75 (T-thread) or M48 × 0.75 threaded adapters, 55 mm BFD

    Remark:

    Other standard adapters are available, for instance threaded 2" barrel adapter etc.

20. Canon EOS bayonet lens adapter

21. Nikon bayonet lens adapter
