Name: PlaneWave CDK20 Astrograph f/7.7 (200127Q)
Brand: Planewave
SKU: PW-200127Q
Price: 55380.0 CAD
Availability: InStock

PlaneWave CDK20 Astrograph f/7.7 (200127Q) - Astronomy Plus

PlaneWave CDK20 Astrograph f/7.7 (200127Q)

by Planewave

SKU PW-200127Q

$55,380.00 - $55,380.00

$55,380.00

$55,380.00 - $55,380.00

$55,380.00

Quantity

IMPORTANT NOTE:

The price is subject to change, depending on the exchange rate at the time of delivery. A non-refundable down-payment will be taken after placing an order.

Shipping & Crate fees:

This product is excluded from free shipping, because it's oversize format. Large instruments may have Crate charges. Contact us for an estimate.

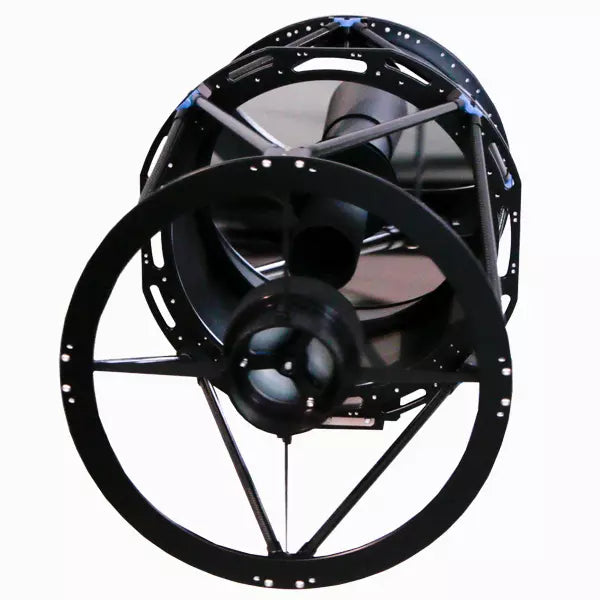

CDK20 Optical Tube Assembly (F/7.77)

The CDK20 is an innovative telescope for unsurpassed astroimaging, research, or satellite tracking.

Additional 1.79″ of backfocus and 497 mm of focal length compared to the standard CDK20 f/6.8 model.
f/7.77 and 3951 mm focal length.
No coma, no off-axis astigmatism, and no field curvature.
Pinpoint stars across a 52mm image circle.
Rock solid fused silica mirrors with low thermal expansion.
Carbon fiber optical tube assembly for rigidity and fast cooling.
Simple secondary mirror collimation thanks to the fixed primary mirror.
If you have a standard CDK20 you can order the replaceable lens cell to convert to the f/7.77 model.

Capturing the most stunning astrophotographs possible is something our team is passionate about. From design to manufacture, our goal with the Corrected Dall-Kirkham (CDK) 20″ telescope was centered around performance and ease of use. The CDK20 is an incredible breakthrough in telescope technology and produces no off-axis coma and no off-axis astigmatism. Additionally, the CDK20 provides a perfectly flat field so your astrophotographs will have stunning clarity from corner to corner of the image without field curvature degrading the photos. Offering the simplicity of single-mirror collimation, the stray light control of advanced baffles, structural performance created through finite element analysis (FEA), and decades of telescope design experience, the CDK20 is an exceptional diffraction-limited telescope. CDK20 users can experience pinpoint stars edge-to-edge and a 45 x 45 arcminute field of view when using large 16803 size camera sensors. When equipment fades into the background and simply performs, the astrophotography experience becomes even more fun and rewarding!

CDK20's Features

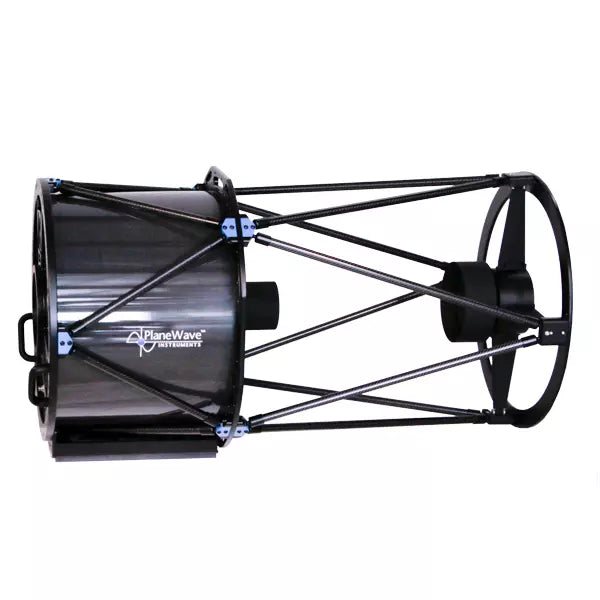

Carbon Fiber Truss Design

Minimizes thermal expansion which causes focus shift as temperature changes during an imaging session. Carbon fiber also reaches ambient temperatures quickly and is extremely lightweight and rigid to help ensure excellent imaging data is produced.

3D Printed Baffles

PlaneWave uses digital 3D printing technology to produce lightweight baffle tubes. 3D printers add successive layers of material to construct a baffle system with precision positioned internal stray light baffles to minimize vignetting and maximize image contrast. Quality baffling makes an incredible difference in overall image quality, so we ensured an optimal design was created for our telescopes.

Dovetail Expansion Joint

Allows for the difference in thermal expansion between carbon fiber and aluminum. The expansion joint allows the aluminum dovetail to expand and contract without stressing the carbon fiber lower truss. This results in images that are not distorted due to expansion, or contraction of the optical tube materials.

Delta-T Ready

For added dew prevention, the CDK20 is internally wired with polyimide film heater pads and temperature sensor, which is ready to be controlled with the Delta-T via PlaneWave Interface 3 software.

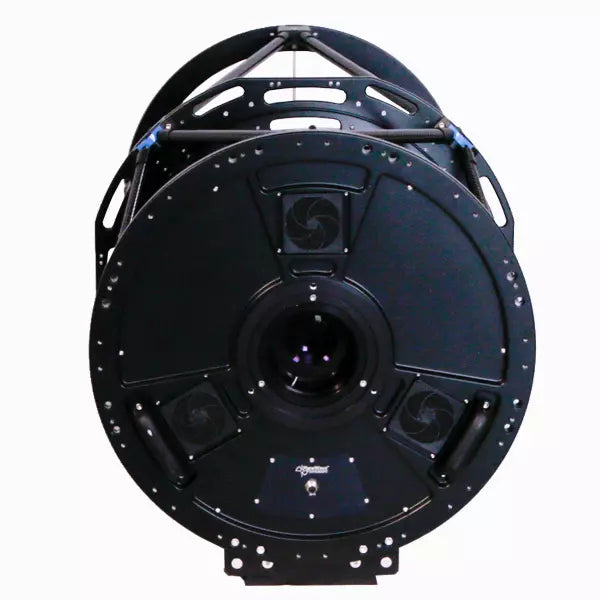

Cooling Fans

Three fans on the backplate of the optical tube pull air through the telescope and by the primary mirror. Three fans on the side of the optical tube also blow air across the primary to ensure a boundary layer of air does not distort images. These fans help the telescope reach thermal equilibrium quickly, further reducing any distortion in images due to temperature variations. The fans are controlled by a switch on the optical tube, or can be controlled by via PWI3 software if a PlaneWave Electronic Focus Accessory (EFA Kit) is purchased.

Technical Specifications

Optical System

Aperture	20 inch (508 mm)
Focal Length	3951 mm (155.55 inch)
Focal ratio	f/7.77
Central Obstruction	39% of the Primary Mirror Diameter
Back Focus from mounting surface	10.61 inch (269.49 mm)
Weight	140 lbs (63.5 kg)
OTA Length	47 inch (1,194 mm)
Upper Cage	Carbon fiber truss
Lower Cage	Carbon fiber truss with carbon fiber light shroud
Optimal Field of View	52mm image circle

Secondary Mirror

Diameter	7.5 inch (191mm)
Material	Fused silica (quartz)
Shape	Spherical
Coating	Enhanced Aluminum – 96%

Primary Mirror

Optical Diameter	20 inch (508 mm)
Outer Diameter	20.5 inch (521 mm)
Shape	Prolate ellipsoid
Material	Fused silica (quartz)
Coating	Enhanced aluminum – 96%

Lens Group

Diameter	90 mm (3.54 inch)
Number of lenses	2
Coating	Broadband AR Coatings (less than .5% reflected from 400 to 700nm)
Optical Diameter	20 inch (508 mm)

Standard Features

Carbon Fiber Truss Design	Minimizes thermal expansion which causes focus shift with changes in temperature
Dovetail Expansion Joint	Allows for the difference in thermal expansion between carbon fiber and aluminum. The expansion joint allows the aluminum dovetail expand and contract without stressing the carbon fiber lower truss
Cooling Fans	Three cooling fans ejecting air from the back of the telescope and four fans blowing across the boundary layer of the mirror surface. This helps the telescope to reach thermal equilibrium quickly. The fans are controlled by a computer if the optional Electronic Focus Accessory (EFA Kit) is purchased.

Shipping

Crated Shipping Weight	291 lbs (132.0 kg)
Crate Width	33 inch (838 mm)
Crate Height	33 inch (838 mm)
Crate Length	65 inch (1,651 mm)

Included Accessories

Primary Mirror Cover	To protect the primary mirror
PlaneWave Thumb Drive	Contains software and instructions for collimation and spacing the primary to secondary mirror
12VDC Power Supply	Provides power for the fans (Not included for European Orders)
Wrench Set (5812A35)	Standard hex wrenches (European orders only)

In the Box

Heating elements for dew prevention	The heating pads on the primary and secondary mirror require the 600195 Delta-T controller sold separately
OTA Cover	To protect the primary mirror and inside of the optical tube
Flashdrive	Contains software and instructions for collimation and spacing the primary to secondary mirror
Wrench Set (5812A35)	Standard hex wrenches (European orders only)
