Daystar Quark Prominence H-alpha Filter (DSZ4P)

by Daystar
SKU DAY-DSZ4P
Original price $1,748.00 - Original price $1,748.00
Original price
$1,748.00
$1,748.00 - $1,748.00
Current price $1,748.00

We Have it in Stock? We're on it, shipping your order on the same day. *(Ordered before 1PM & Business Hours only)

If the item is unavailable: It may be in transit to us or on order with the supplier. If not, we will promptly place the order. In case of delays, we will keep you informed.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Sebastian Sajaroff
Amazing !

I bought Daystar Quark Prominence and a Baader UV-IR cut filter for my 70 mm ED F/6 refractor. My eyepiece is a 32 mm Svbony Plossl.
I plugged the Quark, left it on its default tuning position ("12 o'clock") and waited for it to heat up (about 15 minutes). It was 24C (75F) outside.
I was completely stunned by the view at the eyepiece.
A generous full disk view (amber-bright red hue), prominences and spicules were obvious, generous details on them. The disk was rich in details, several filaments, complex patterns around and between sunspots, plus granulation everywhere. I even caught a flare forming in real time.
I was stuck to the eyepiece for one hour, watching prominences slowly evolve (their changes are visible after 15 minutes). It's an unforgettable experience.
Remember that you have 2 variables to play with : focus and tuning.
I live under jet stream, so I'm under lots of atmospheric turbulence.
Focus must often be adjusted, same as night time astronomy.
Tuning is not so obvious because it depends on temperature.
The day after, it was a bit hotter outside (27C, 80F), and noticed that the optimal position was at "11 o'clock".
Note that everytime you adjust tuning, you must wait another 10-15 minutes for the green light.
After that, I got a cooler session at 21C (70F) and realized the best
position was at "1 o'clock". You have to be patient and experiment.
The optimal tuning is obvious : it's where you get the most detailed view of the solar disk. If the Sun turns into a red dull disk, you went too far to one side or the other.

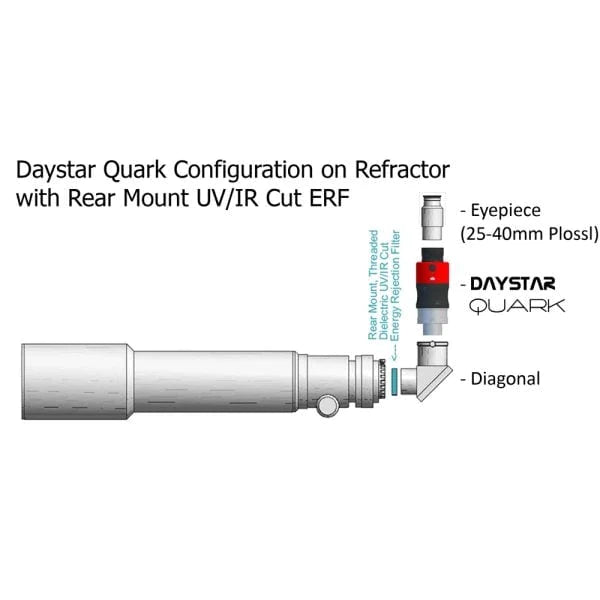

According to DayStar Quark documentation, I didn't need an UV-IR cut filter for a 70 mm refractor for short sessions. However, I knew I was going to be stuck for long sessions and preferred not to play with my eyesight. Better be safe and add the UV-IR cut filter.
Note that larger telescopes may need an ERF (front) filter.
In a few words : I strongly recommend it.

D
David Fram
Quark chromosphere

My Quark chromosphere can produce some excellent high-resolution images when paired with a good fast doublet scope, in this case an Explore Scientific ar127.Only a 1.25” UV/IR cut filter is used for energy rejection. The image shown (normal and inverted) illustrates the type of detail that can be attained in only average seeing. This was the first set of images I took with the Quark. A ZWO asi174mm was the camera used.
The Quark chromosphere/prominence can tend to be variable in the quality of it's etalon and mine may not be the best possible version, but it is very good. It does display some irregular banding which indicates the mica etalon is not perfectly uniform as well as some newtons rings. Daystar does offer a perfectly QC'd version at the cost of around $13,000. Processing techniques can fix most of the issues with the Quark. Perfect tuning can be time consuming. However, in terms of image quality, it compares quite well with my 2014 Lunt LS100Tha $6800 USD, which is a dedicated Ha scope with pressure tuning. My Lunt developed an internal leak which causes it to drift off band over time so is not usable for timelapse photography. Lucky imaging with the Lunt is still superb. Getting it repaired is not feasible hence the purchase of the Quark.
We are starting the period of solar maximum so it is the time to get out and do some solar imaging/viewing! The Daystar Quark makes that possible at a high level, for a reasonable price.
