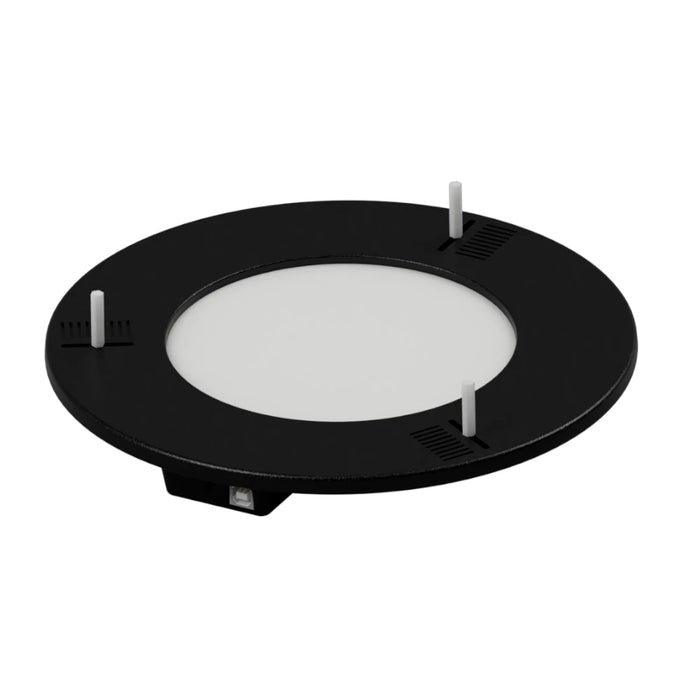

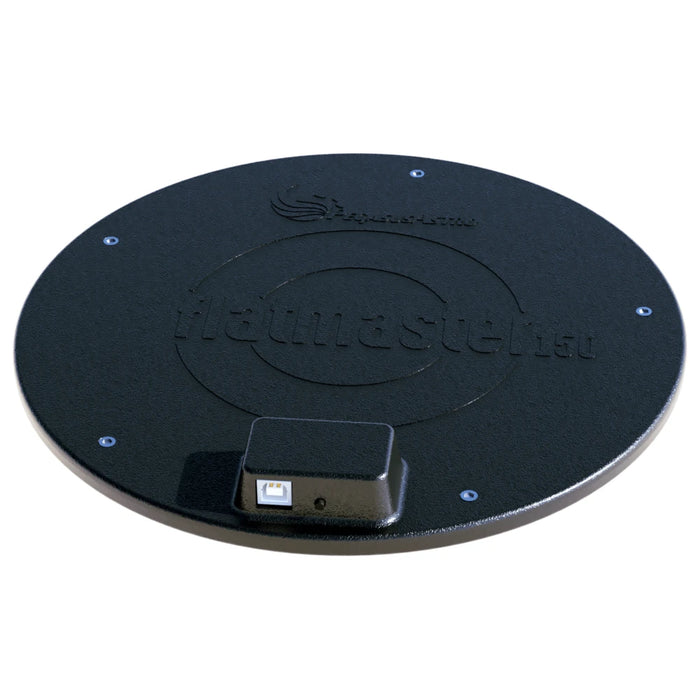

Pegasus FlatMaster 150L Wi-Fi
Flatmaster 150- Dimable LED Flat Panel (up to 5'' size) with WiFi functionality.
Our new LED flatfield panel provides a uniform source of illumination up to 150mm and produces high-quality flat field frames for astrophotography and photometric captures.
This updated model has Wi-Fi capabilities and can be used for telescopes up to 6 inches
Dimmable Panel
Unlike other panels in the market, the FlatMaster can adjust its brightness from 0 to 100%. Forget sheets of paper between your telescope and the panel. Remote control the brightness of your panel. Store the brightness per filter and immediately retrieve the value you need.
The Flatmaster 150L can go up to very high brightness levels so it can easily support short exposures (2-3 seconds at f/7) with 3nm narrowband imaging filters
Manual Button
The FlatMaster has a small push button that sets different gradual levels of brightness. In case you would like to manually operate the FlatMaster, no problem, just click the push button to control the brightness.
One cable operation
Only one USB type B cable provides power and control of your panel.
Carry bag
A carry bag is in the package allowing you to easily transfer the FlatMaster 150 to any location.
Wi-Fi support
New Flatmaster is Wi-Fi enabled, allowing you to control and monitor focus remotely from your mobile phone.
Notably, you can operate it simultaneously with USB or Wi-Fi, providing flexibility and ease of use for astronomers, all from the convenience of your smartphone.
ASCOM Alpaca, ASCOM 7 and Indi support
The FlatMaster device is fully compatible with ASCOM Alpaca, classic ASCOM, and INDI protocols.
FlatMaster Wi-Fi Dashboard
Once connected to the FlatMaster Wi-Fi hotspot, you can access the control the panel light brightness by simply entering “flatmaster.local” into any web browser
This feature is operating system-independent and works seamlessly alongside USB control, offering flexibility and convenience across a wide range of setups.
Technical Specifications
| Type |
Led Light Panel (White) |
| Dimmable |
Yes – (0-100%) |
| Material |
Strong black ABS plastic |
| Manual Push Button |
Different brightness levels |
| Usable diameter of circle |
150mm / 5.9 inches |
| Power requirements |
5V DC provided by USB mini cable (500mA max current) |
| Size |
Diameter 250mm x 8mm thickness |
| Weight |
350g |
| Wi-Fi Capabilities |
Access Point or Client (at 2.4GHz) |
In the Box
- 1 x FlatMaster 150 (suitable for any telescope with aperture up to 150mm or 5.9 inches)
- 1 x Carry bag
- 1 x Cable USB2 Type B 1.8m
Native support by most popular imaging software
- Sequence Generator Pro (SGPro)
- Voyager Astrophotography Automation
- Astrophotography Tool (APT)
- Nighttime Imaging ‘N’ Astronomy (N.I.N.A)
