Motic Moticam BTI

The Moticam BTI combines a space-saving camera hardware with new Wi-Fi technology.

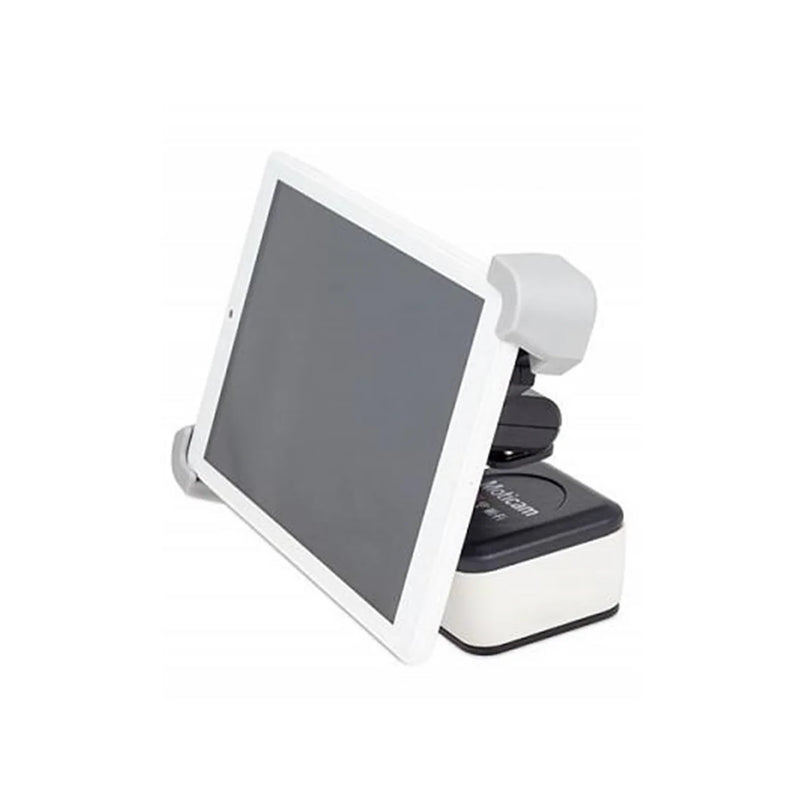

The 4MP Wi-Fi camera comes together with an Android tablet (up to 10") to deliver fast live images (up to 30 fps) on any microscope with a vertical photo tube.

This setup is perfect for the immediate presentation of image results to a greater public in your lab. Detaching the tablet for an even more flexible application is possible thanks to the Wi-Fi data transfer.

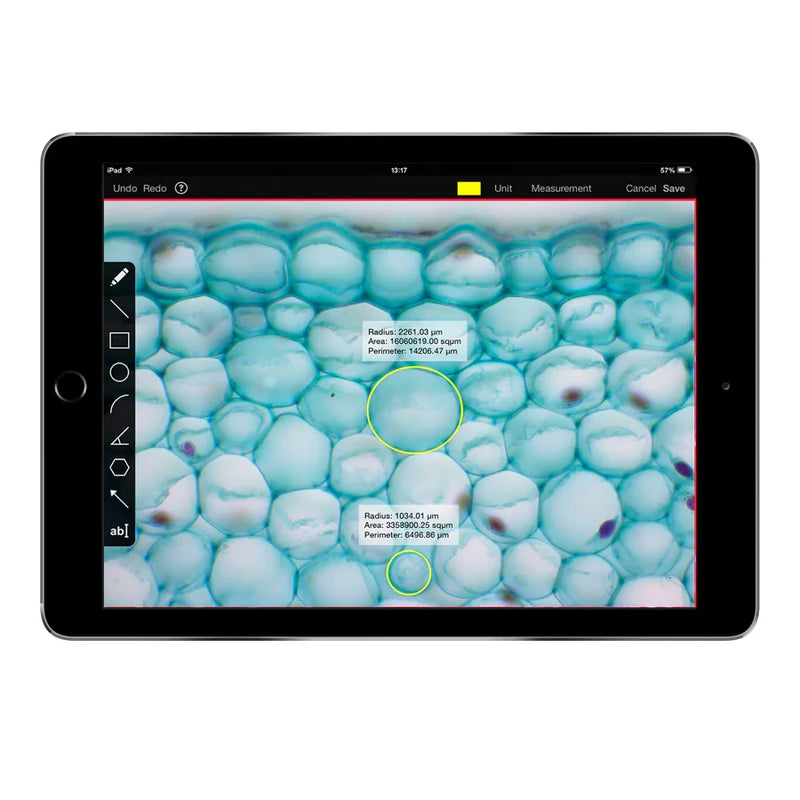

Use the pre-installed MotiConnect App and get ready to capture, edit and share your microscope images from the tablet in a few taps.

Technical Specifications

Model	Moticam BTI 8	Moticam BTI 10
Camera Specifications
Sensor type	CMOS	CMOS
Sensor size	1/3"	1/3"
Live resolution	1920x1080, 1280x720 (display resolution)	1920x1080, 1280x720 (display resolution)
Image capture resolution	4.0MP	4.0MP
Video capture resolution	720P (HD)	720P (HD)
Data transfer	Wi-Fi (2.4 or 5 GHz) and Ethernet (RJ45)	Wi-Fi (2.4 or 5 GHz) and Ethernet (RJ45)
Pixel size	2.0μmx2.0μm	2.0μmx2.0μm
Lens mount	C-Mount	C-Mount

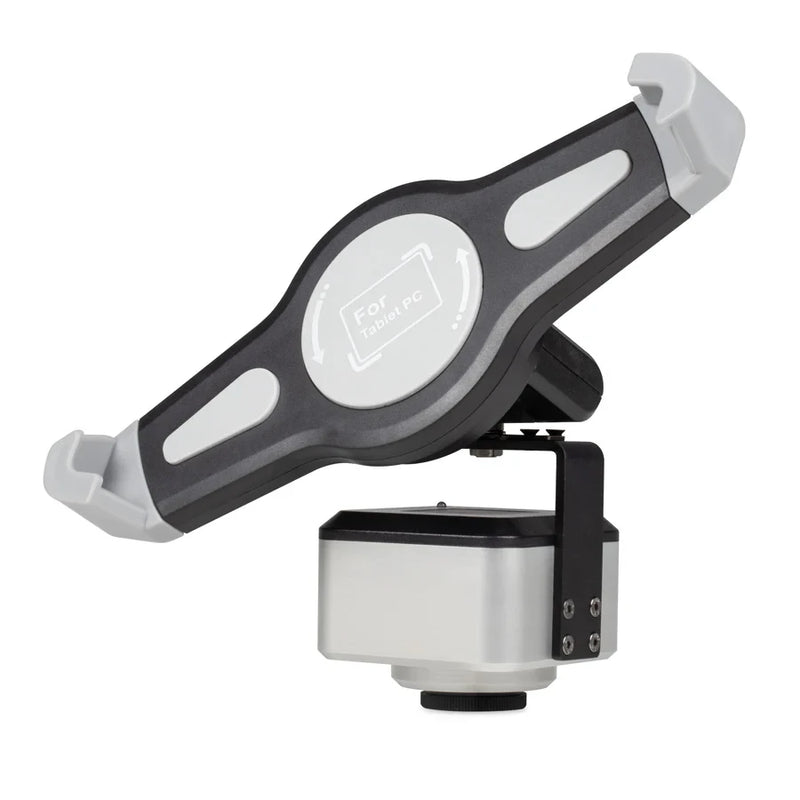

Tablet bracket holder	For tablets from 7" to 10"	For tablets from 7" to 10"
Tablet Specifications
Size	209x126x9.9mm	218x136x910mm
System	Android 5.1	Android 10
Pre-installed App	MotiConnect	MotiConnect
Language	Multi-Language	Multi-Language
CPU	1.3GHz Quad core	2.0GHz 8-core
RAM	1GB DDR3	6GB DDR3
NAND FLASH	8GB	128GB
Display	8" (IPS) 16:10 Ratio	1920x1200
Ports	MicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging)	MicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging)
Support display format	MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM	MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM
Support audio format	MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV	MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV
Picture format	JPEG, GIF, BMP, PNG	JPEG, GIF, BMP, PNG
Camera	Front (VGA) + Rear (2M Pixels)	Front (5M Pixels) + Rear (8M Pixels)
Package includes	USB Cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE)	USB Cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE)
