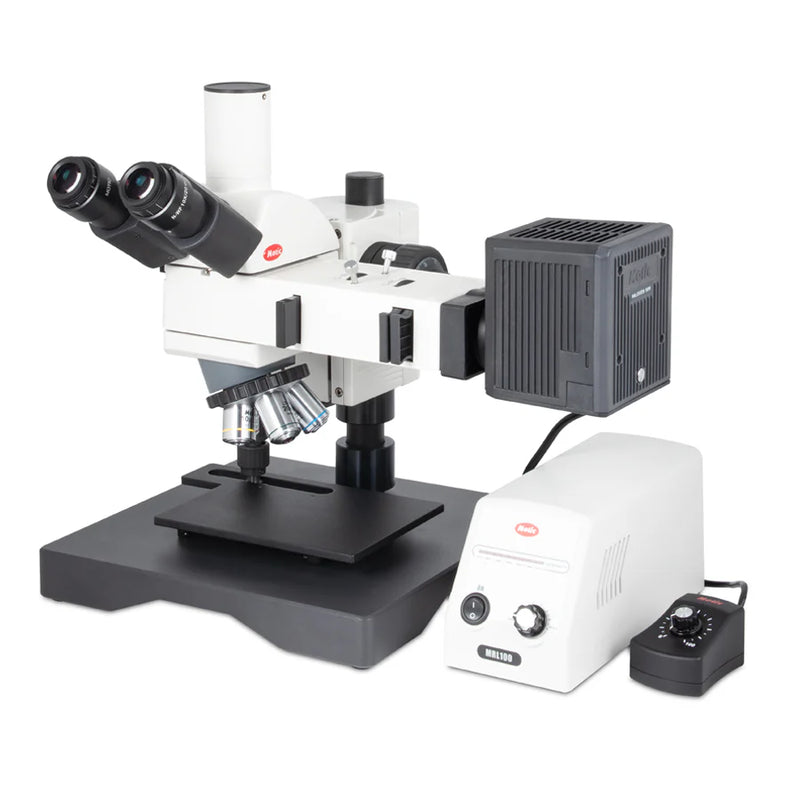

Motic BA310MET-H

Trinocular microscope setup for bulky samples from material sciences. The BA310 MET-H offers plenty of handing space due to a flexible focusing device. The LM Plan Achromatic objectives from Motic's CCIS® Infinity system evaluate reflective, flat surfaces of large workpieces from industrial quality control and technical schools.

Technical Specifications

Model	BA310MET-H Trinocular	BA310MET-H Trinocular (Erect Image)
Optical system	Colour Corrected Infinity Optical System (CCIS®)	Colour Corrected Infinity Optical System (CCIS®)
Observation tube	Trinocular head, Siedentopf type	Trinocular head, Siedentopf type
Inclination	30° inclined	30° inclined
Trinocular light split	100:0/20:80	Fixed 50:50 erect image
Interpupillary distance	55-75mm	55-75mm
Diopter adjustment	On both eyepieces, +/- 5 diopter	On both eyepieces, +/- 5 diopter
Eyepieces	Widefield N-WF10X/20mm with diopter adjustment	Widefield N-WF10X/20mm with diopter adjustment
Intermediate body	Epi-illuminator quartz halogen with integrated field and aperture diaphragms and external lamphouse	Epi-illuminator quartz halogen with integrated field and aperture diaphragms and external lamphouse
Nosepiece	Reversed quintuple	Side facing quintuple
Objective classification	CCIS® LM Plan Achromatic, DIN	CCIS® LM Plan Achromatic, DIN
Objectives	5X/0.13 (WD 11.5mm), 10X/0.3 (WD 6.8mm), 20X/0.40 (WD 11.1mm), 50X/0.55 (WD 8.2mm)	5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)
Objective mounting thread	W 4/5"x1/36" (RMS standard)	W 4/5"x1/36" (RMS standard)
Stand type	Upright with pole stand with focusing block and base	Upright with pole stand with focusing block and base
Stage	Mechanical stage, hard coated with coaxial stage control	Mechanical stage, hard coated with coaxial stage control
Stage size	180x140mm	180x140mm
Travel range X&Y	100x80mm	100x80mm
Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment	Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision	2μm	2μm
Focusing stroke	30mm	30mm
Incident illumination	Quartz halogen 12V/50W with integrated field and aperture diaphragms	Quartz halogen 12V/50W with integrated field and aperture diaphragms
Illumination interchangeability	Quartz halogen 12V/50W or LED 3W	Quartz halogen 12V/50W or LED 3W
Illumination features	External lamp house for Epi-illuminator	External lamp house for Epi-illuminator
Transformer	External	External
Power supply	100-240V (CE)	100-240V (CE)
Accessories included	Dust cover, power cord, Allen key	Dust cover, power cord, Allen key
Dimensions LxWxH	369x485x391mm	369x485x391mm
Base	300x300mm	300x300mm
Net weight	15.7kg	15.7kg

In the Box

Motic BA310MET-H

Warranty & Manuals

Motic - 5 Years Warranty

Specifications - BA310MET-H Trinocular

Instructions
