Walter QZA/QZB Zoom Stereo Microscopes

Name: Walter QZA/QZB Zoom Stereo Microscopes
Brand: Walter Products
SKU: WAL-QZA
Price: 702.0 CAD
Availability: InStock

by Walter Products

SKU

$702.00 - $805.00

$702.00

$702.00 - $805.00

$702.00

Quantity

Walter QZA/QZB Zoom Stereo Microscopes

The QZA/QZB Series offers a fully coated optical system which provides a sharp and clear image with extremely good flatness and contrast. It offers ergonomic features such as synchronized bi-lateral inter-pupillary distance adjustments, and is designed to fit with a variety of lens accessories to increase or reduce magnification. With a large zoom range and a long-working distance, it can produce the best reproduction and true color image. It is ideal for high-magnification, high-resolution observation in biological research, semi-conductor and other precision-oriented industries. The trinocular model is excellent for photo or video microscopy when connected with a digital camera. Comes with a 5-year limited warranty.

ITEM NO.	HEAD	EYEPIECE	MAGNIFICATION	ILLUMINATION

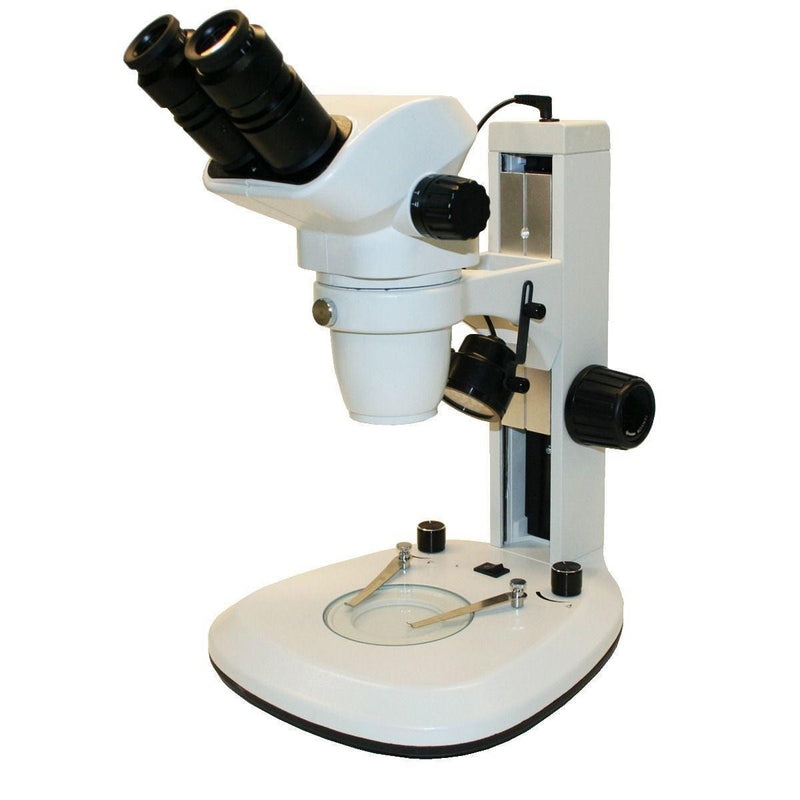

QZA	Binocular	10X WF	6.7X to 45X	LED Top & Bottom

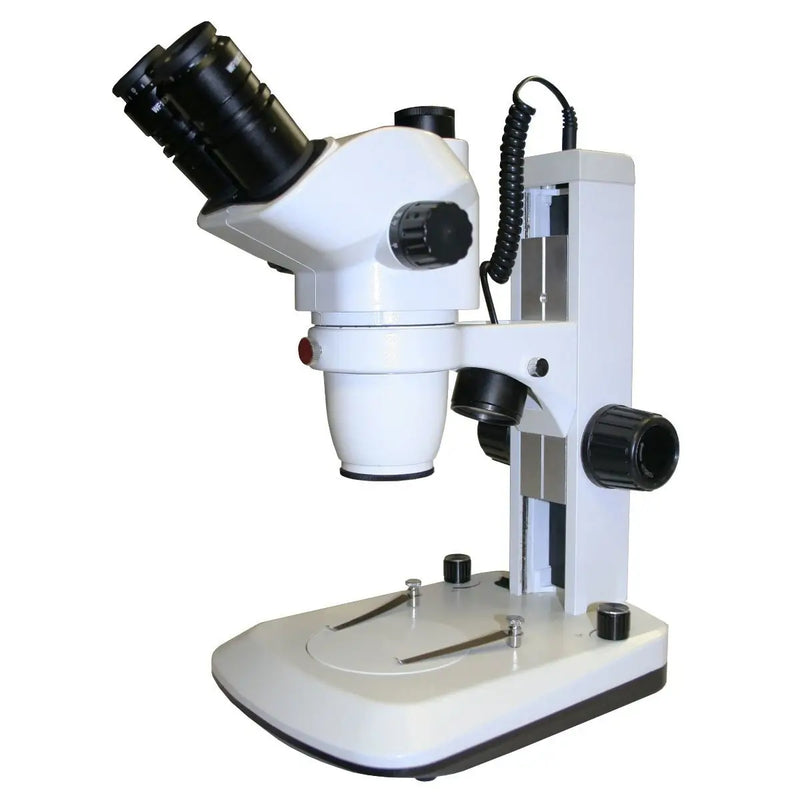

QZB	Trinocular	10X WF	6.7X to 45X	LED Top & Bottom

Choice of binocular or trinocular head (50/50 splitting ratio), both inclined at 45° with 360º rotation
Diopter adjustment of ± 5 on both ocular tubes
Zoom objective range of 0.67X to 4.5X; zoom ratio of 1:6.7
Parfocaled objective provides a sharp image throughout the zoom range
Includes one 95mm glass stage plate and one 95mm reversible black/white stage plate

Technical Specifications

Model	QZA	QZB
Body	All metal construction
Head	Binocular head, 45° inclined, rotates 360°	Trinocular head, 45° inclined, rotates 360° 50/50 light splitting ratio
Interpupillary Adjustment	Synchronized, bi-lateral adjustment of 54mm to 76mm
Eyepiece	Pared 10X WF high eyepoint eyepieces, rubber eye guards included, diopter adjustment of ±5 on both ocular tubes
Objective Range	0.67X to 4.5X
Zoom Ratio	1:6.7
Stage	95mm black/white stage plate, 95mm frosted stage plate, locked-on spring loaded stage clips
Focusing System	Heavy duty rack and pinon focusing with tension adjustment
Working Distance	105mm
Illumination	Top/Bottom LED illumination, separate light intensity control for each light, top light is diagonally adjustable
Power	3-wire grounded power cord
Accessories	Vinyl dust cover and user manual
Warranty	Limited 5 year

In the Box

Walter Microscope:

QZA
QZB

Manual & Warranty

Walter Product 5-Year Warranty
