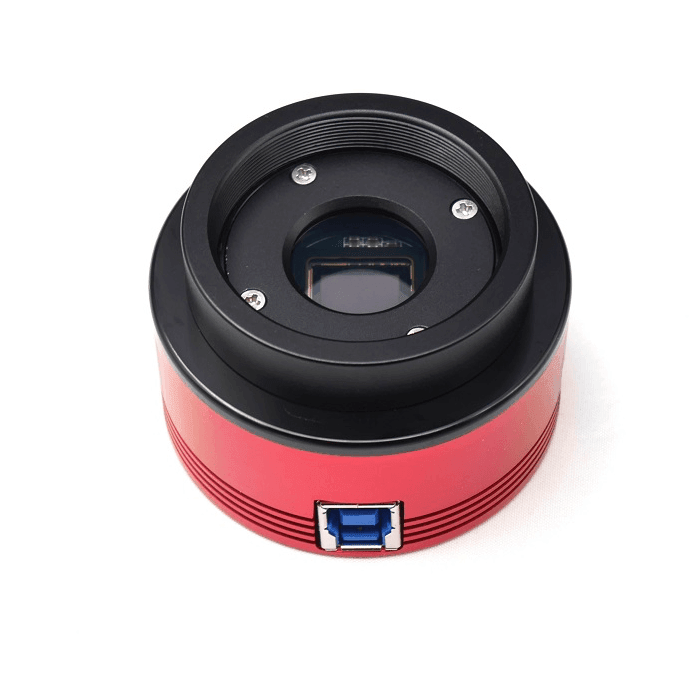

ZWO ASI174MM Mono USB3.0



The ZWO ASI174MM camera integrates Sony IMX174LLJ / IMX174LQJ 1/1.2″ sensor (11.3 mm x 7.1 mm). This camera has 1936 x 1216 pixels. The pixel size is 5.86 μm x 5.86 μm.  This camera provides 12bit ADC and its QE peak is 77%.


  • The Sony IMX174 monochrome CMOS sensor that separates the ASI174MM from previous ASI models. This type 1/1.2” Sony CMOS image sensor, with a 5.86µm unit pixel in a 1936 x 1216 array, has a lot of advantages when taking high quality solar, lunar, planetary, and deep sky object images.
  • Pregius Global Shutter function with analog memory permits the scanning of all pixels simultaneously. The Sony IMX174’s global shutter function provides improved image quality by making sure images of moving objects avoid focal plane distortion. This is especially helpful when performing solar or lunar imaging. Bad seeing, wind, or movement can alter the image if the readout speed is not quick enough (< 30fps).
  • Sony Exmor technology uses column-parallel A/D conversion for high speed processing, low noise, and low power dissipation.
  • ROI, or Region of Interest Mode lets you capture up to 16 areas inside the effective pixels. This ability allows for even higher frame rates.
  • High speed imaging with a max of 164.5 fps at 10 bit ADC, and max of 128.2 fps at 12 bit ADC

Camera Sensor

Our brand new ASI174MM CMOS Monochrome Imaging Camera is based on the Sony Exmor IMX174 2.35MP sensor with Pregius global shutter technology.


Astrophotography Performance


High QE

Absolute QE Curve, we estimate the Peak Value is about 77%.

174Mini VS 174MM

Compared with ASI174MM camera, 174mini has smaller outlook, lighter weight, and it can reach focus with eyepiece at the same position.

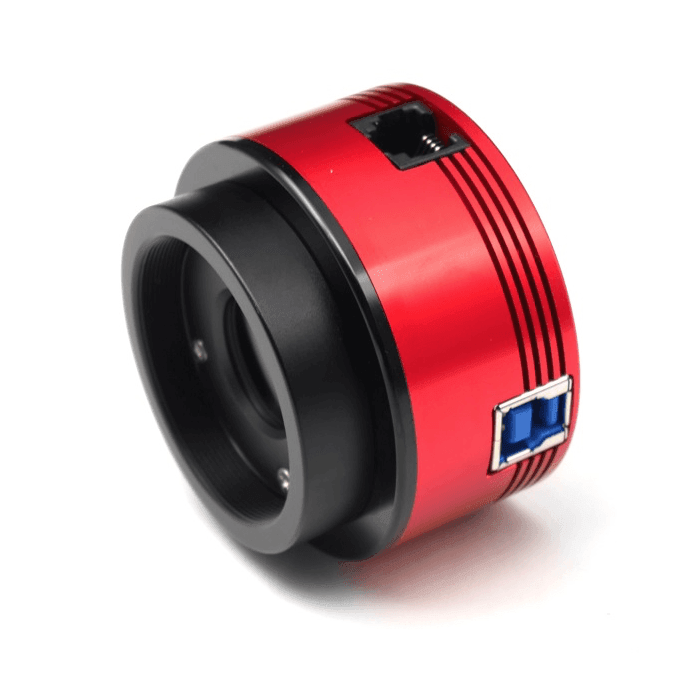

USB3.0Port & ST4 Port

USB 3.0 Port: can provide 5Gb bandwidth to let ASI174 run at 128 fps (12bit, normal mode) or 164 fps (10bit, high speed mode)  at full resolution(2.35Mega).

ST4 Port: can be used connect with auto guide port of mount, for guiding.



Back Focus

After remove T2 11mm ring, back focus length will be only 6.5mm.



Technical Specifications

Sensor 1/1.2″ CMOS IMX174LLJ / IMX174LQJ
Resolution 2.3Mega Pixels 1936×1216
Pixel Size 5.86µm
Exposure Range 32µs-300s
ROI Supported
Non-volatile memory/On camera storage Build-in total 192K byte user-accessible space(image size up to 480X320)
Interface USB3.0/USB2.0
Bit rate 12bit output(12bit ADC)
Adaptor 2″ / 1.25″ / M42X0.75
Dimension φ62mm X 41mm
Weight 140g
Working Temperature -5°C—45°C
Storage Temperature -20°C—60°C
Working Relative Humidity 20%—80%
Storage Relative Humidity 20%—95%
Supported Resolution 10bit ADC Binning 1×1
1936X1216@128FPS
640×480@309FPS
320×240@577FPSBinning 2×2
968×608@128FPS
Supported Resolution 12bit ADC Binning 1×1
1936X1216@164FPS
640×480@397FPS
320×240@740FPSBinning 2×2
968×608@164FPS

In the Box

Camera
11mm T2 Spacer (installed on camera)
1.25″ cover
2m USB3.0 Cable
ST4 Cable
1.25″ Nosepiece
Quick Guide


Manuals & Warranty

ZWO 2-Years Warranty

ZWO General Product & Software Manuals

ZWO ASI174MM Manual

ZWO ASI174MM Mechanical Drawing
