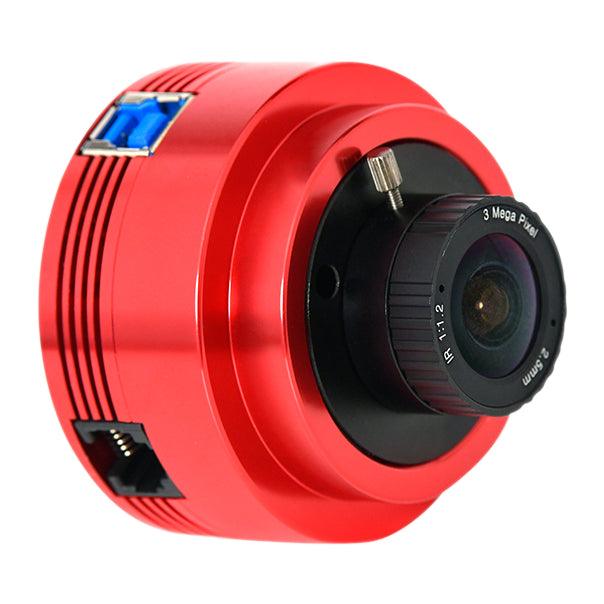

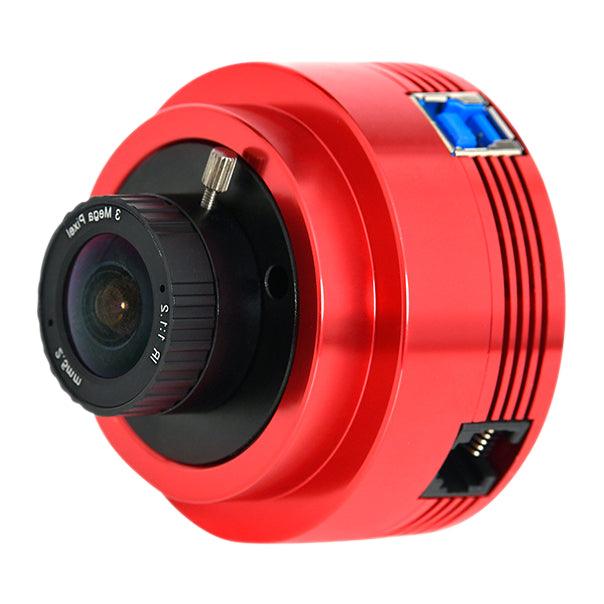

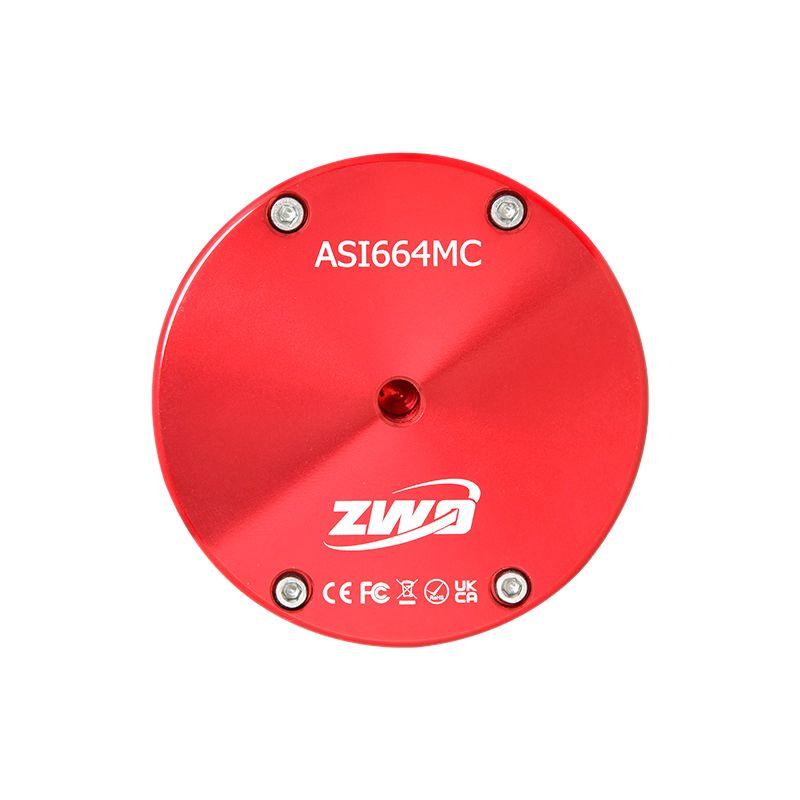

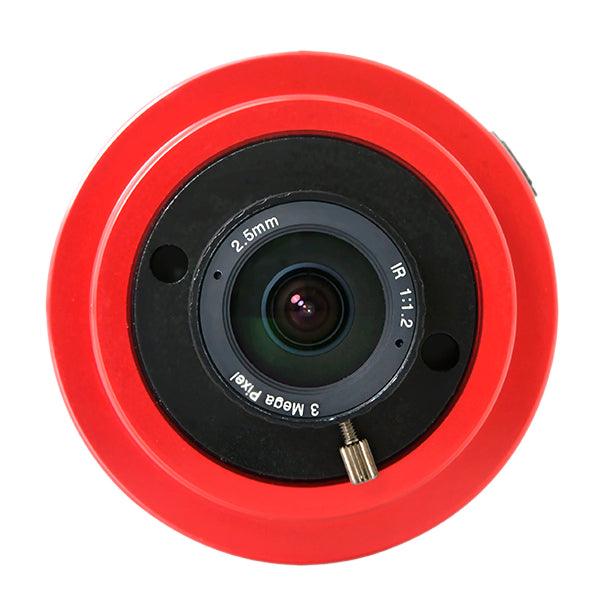

ZWO ASI664MC Color Camera (ASI664MC)

ZWO ASI664MC Color Camera

This ASI664MC delivers peak astrophotography performance though it’s incredible features. Take advantage of its outstanding signal collection for sharp images filled with clarity and contrast. Through its large resolution, quality Sony sensor, and special circuitry, this camera has been engineered to bring your astrophotography to the next level!

Thanks to the innovation from ZWO, this highly sensitive planetary camera captures images brimming with detail. Assembled with Sony STARVIS 2 technology, be impressed by the high peak QE value, low readout noise, and 4.15MP of resolution. This camera has been crafted with calculated hardware that eliminates amp glow and allows for rated transfer speeds of up to 95FPS! The USB 3.0 paired with the onboard memory cache ensures smooth and stable data transmission from the camera to your computer. Enjoy imaging our solar system or even deep space objects with this ASI664MC from ZWO!

Sony IMX664 CMOS Sensor

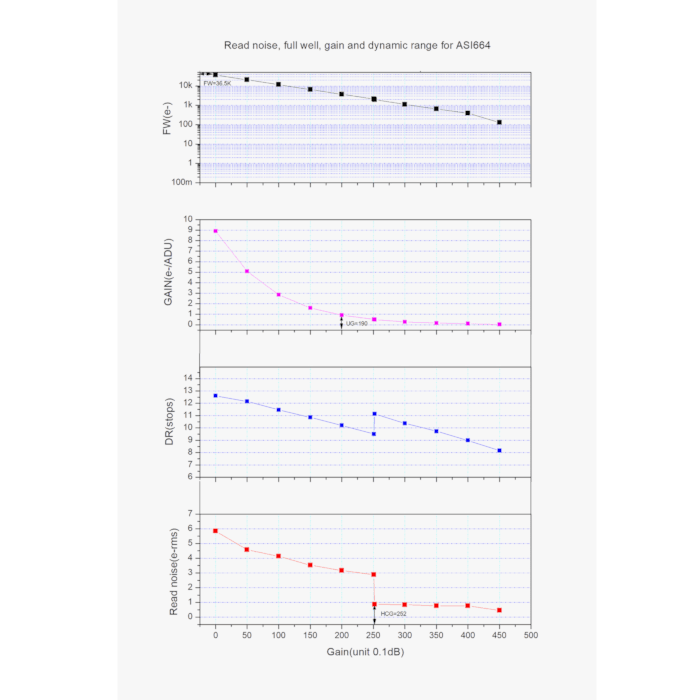

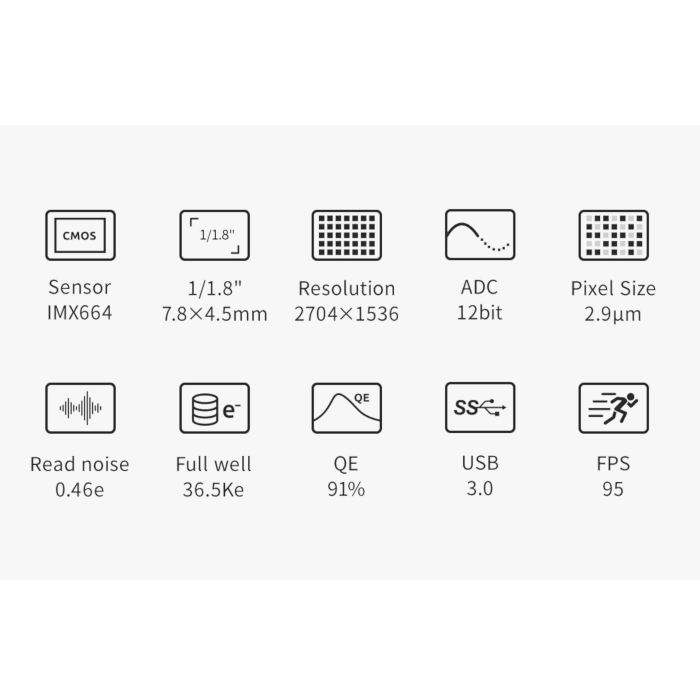

Equipped with Sony STARVIS 2 technology, the ASI664MC produces exceptional image quality through its back illuminated sensor design. The increased sensitivity to near infrared (NIR) offers heightened performance in low light for an enhanced astrophotography experience. This 4.15MP Sony IMX664 sensor includes a small pixel size of 2.9um, a large full well capacity of 36.5Ke, and 12bit ADC for highly detailed images packed with dynamic range. The low readout noise of 0.46e and high peak QE of 91% provides an excellent signal to noise ratio within the frames captured.

Electronic Highlights
Typical CMOS sensors feature circuitry that allows light from within the camera itself to leak into the frames captured. This light is referred to as amp glow, and requires calibration frames to eliminate the effects of it. Adopting no-glow circuitry, the ASI664MC removes this issue all together for cleaner images! Also integrated into this camera is a DDR3 memory buffer. This extra 256MB of internal memory significantly reduces buffer speeds during image transfer, allowing for a high speed imaging in a smooth, seamless manner.

USB 3.0 and ST4 Guide Port
During high speed imaging, it’s important to have a reliable system in place to transfer your data safely and securely. The onboard USB3.0 comes furnished with a large bandwidth, fully supporting the high frame rate of 95MP at full, 4.15MP. Needing an upgraded guide camera? Connect the ASI664MC directly to your mount through the ST4 port to assist in tracking accuracy!
