Technical Specifications
| Optical Info |
|
| Optical Design |
Newtonian |
| Mirror Coatings |

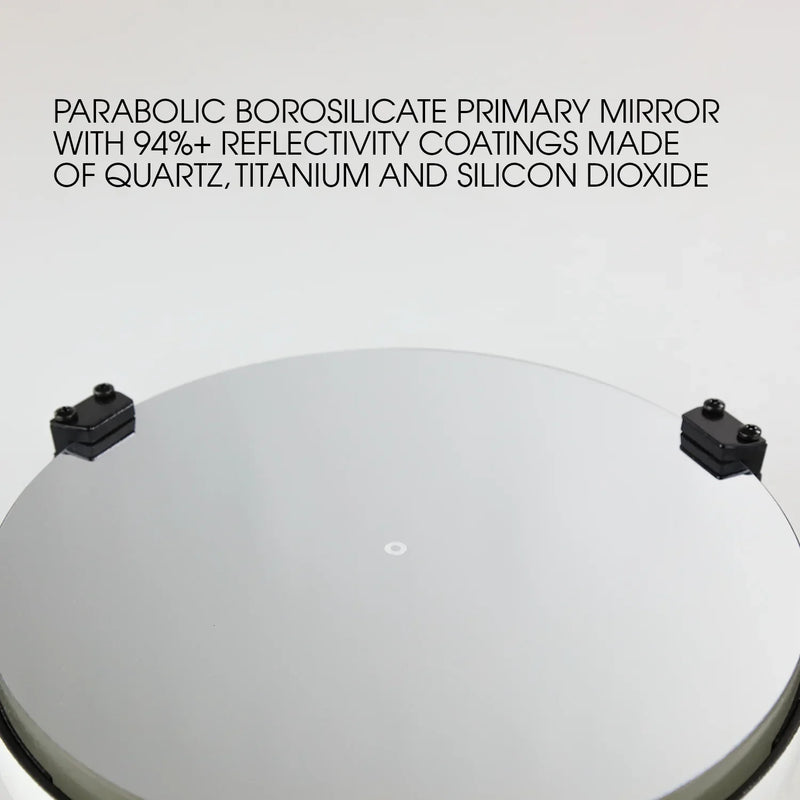

Radiant Aluminum Quartz (RAQ)™ coatings with 94% reflectivity |
| Glass Type |
Borosilicate |
| Primary Aperture (mm) |
203 |
| F/Ratio |
5.9 |
| Focal Length (mm) |
1200 |
| Secondary Diameter |
48mm |
| Secondary Obstruction (by diameter) |
24% |
| Secondary Obstruction by Area |
6% |
| Observational Info |
|
| Dawes Limit |
0.57 |
| Rayleigh Limit |
0.69 |
| Limiting Mag. |
14 |
| Minimum Magnification |
29 |
| Maximum Magnification |
400 |
| Light Gathering (compared to next size down) |
78% |
| General Info |
|
| Focuser |
2" Crayford |

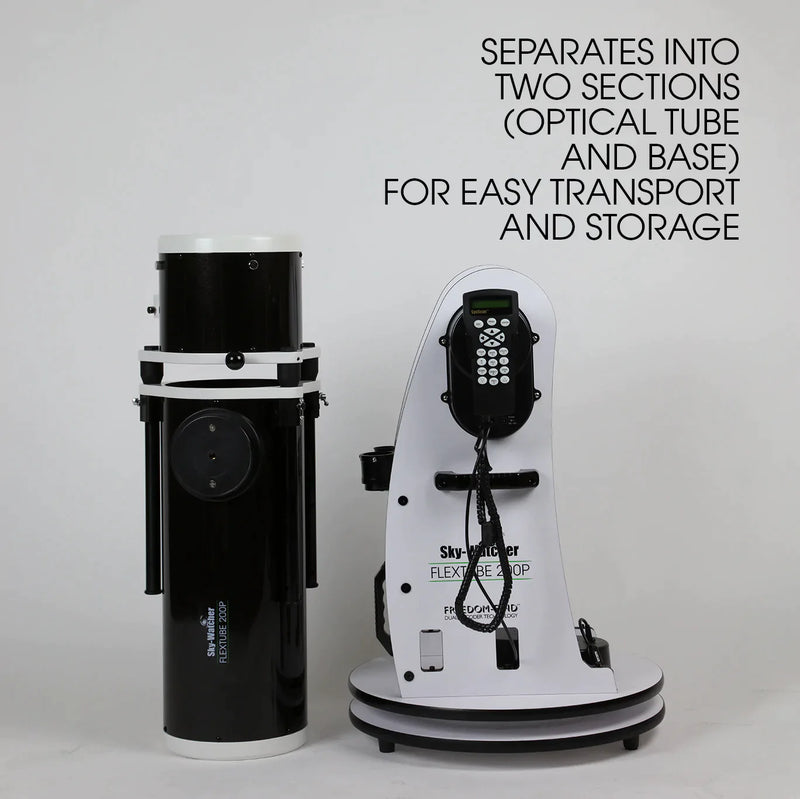

| OTA Length (Retract/Ext.) |
33"/44" |
| OTA Outer Diameter |
9.375" |
| OTA Weight (with accessories) |
24.2 |
| Dob Base Weight |
33 |
| Dob Base Measurements |
30"x20" |
| Zenith Eyepiece Height |
47" |
| Accessories |
|
| Included Finder |
9x50 Finder |
| Included Diagonal |
No |
| Included Eyepieces |
25/10 Plossl |
| Magnification w/ Included Eyepieces |
48x/120x |
| Included Case |
No |
| Corrector |
No |
In the Box

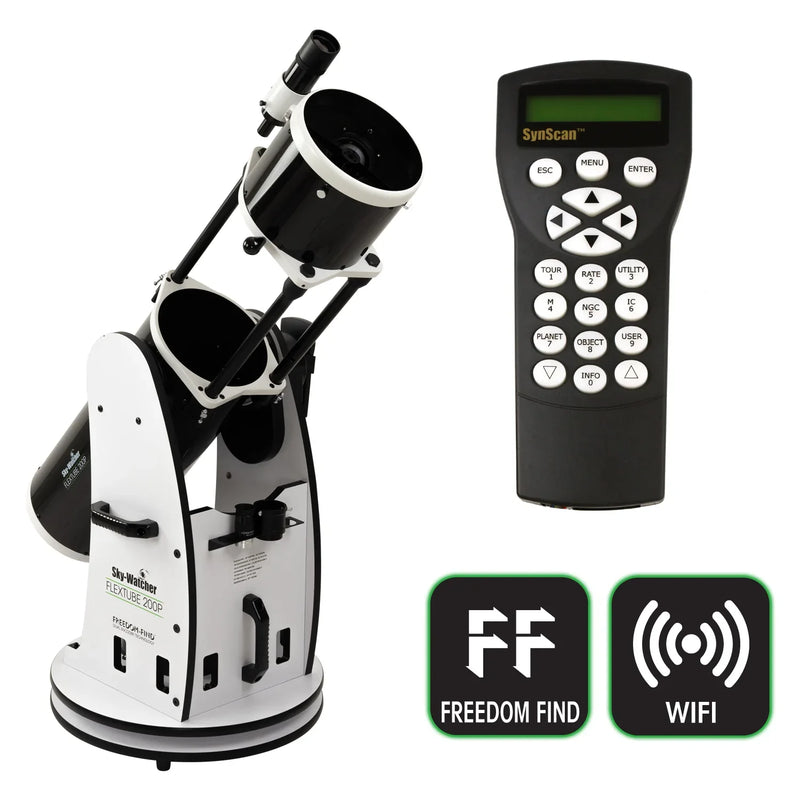

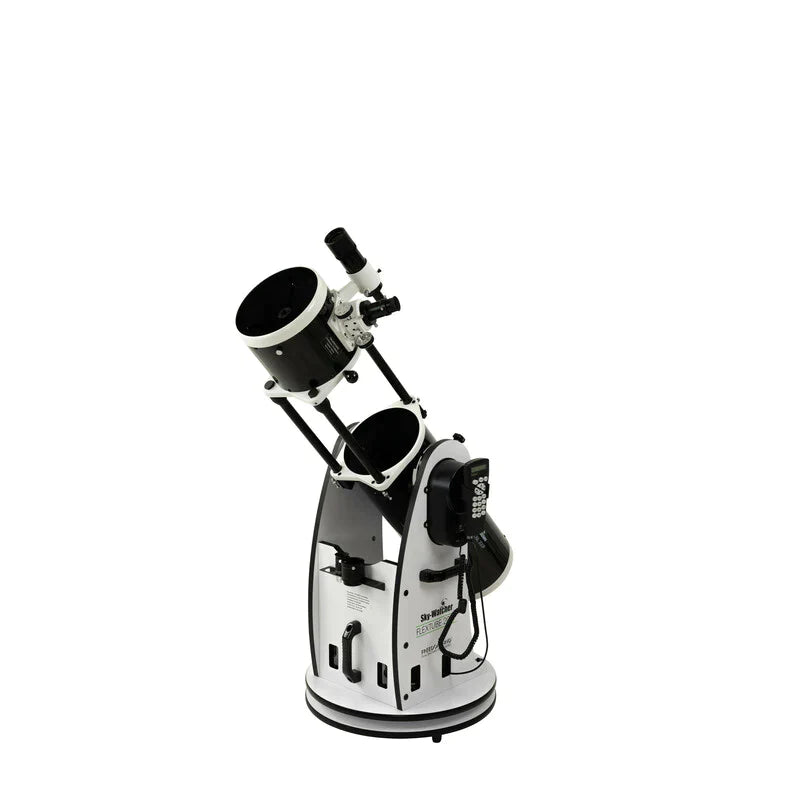

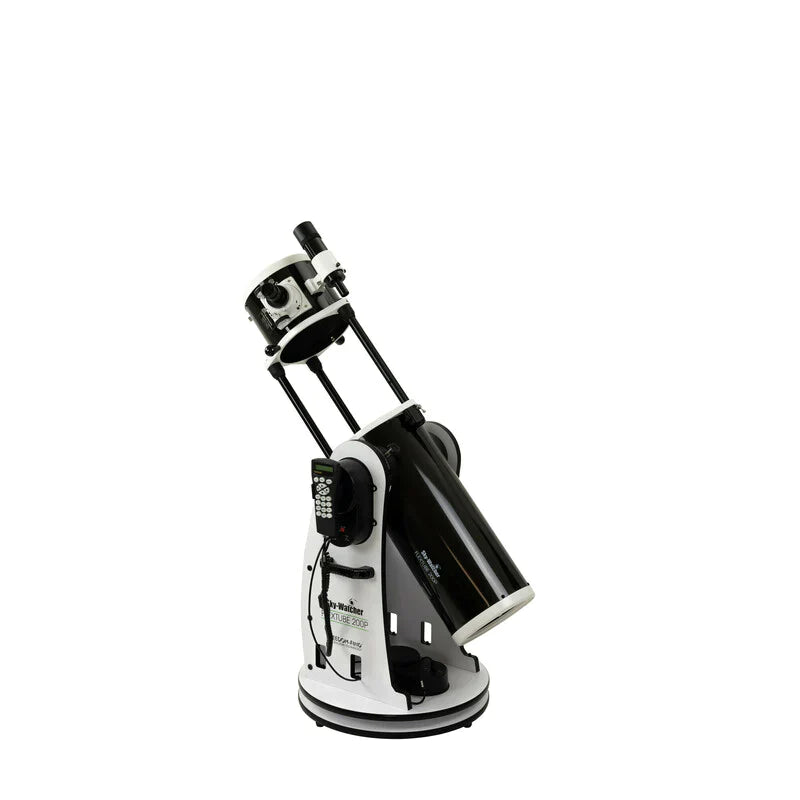

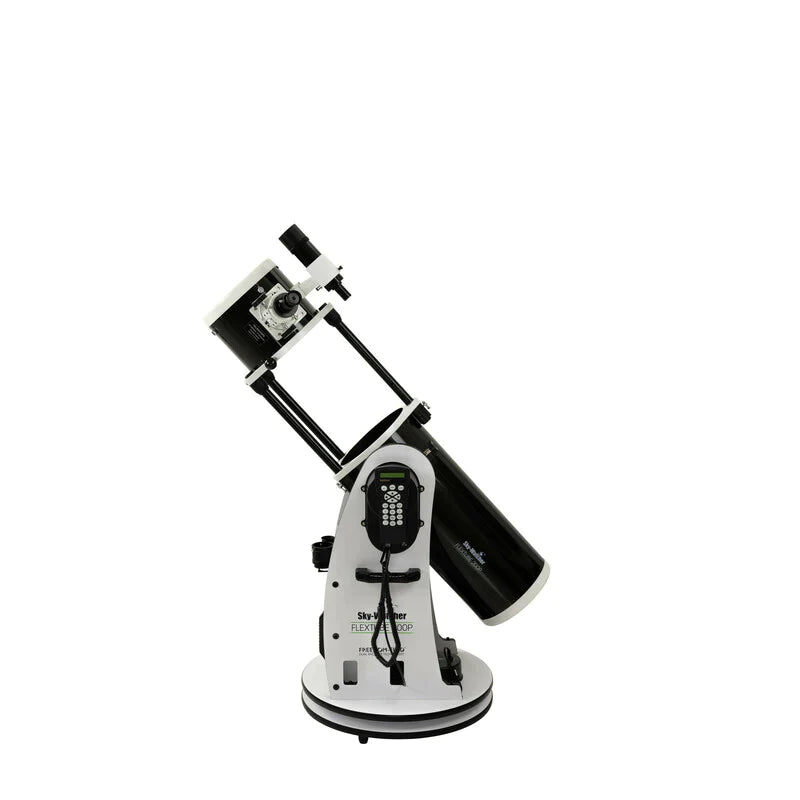

- Sky-Watcher Flextube 200P Synscan Dobsonian
- GoTo Dobsonian Base
- 9x50 Straight-Through Finderscope

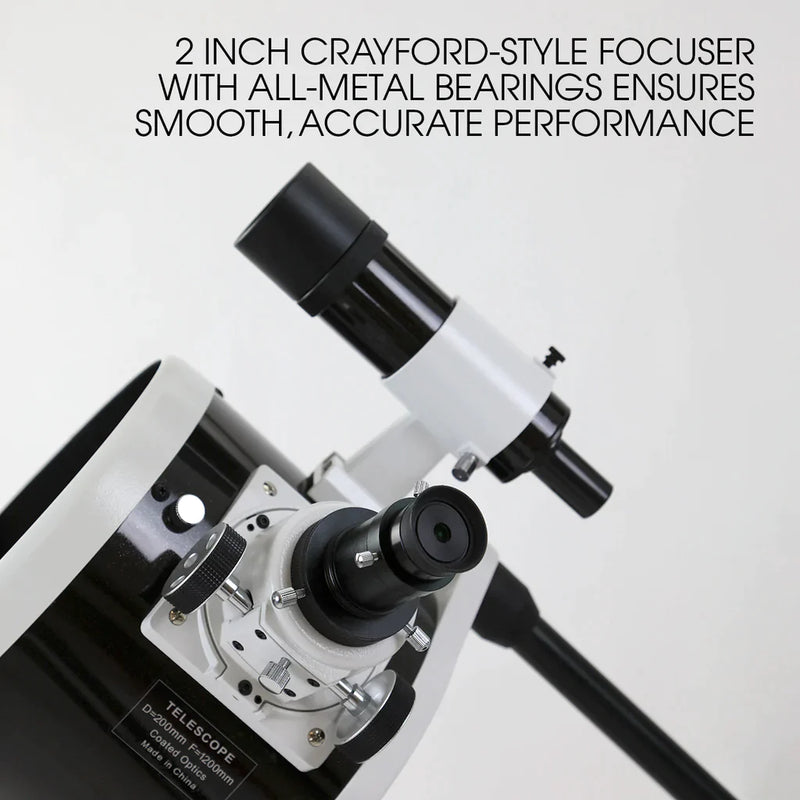

- 2" Crayford-Style Focuser with 1.25" Adapter

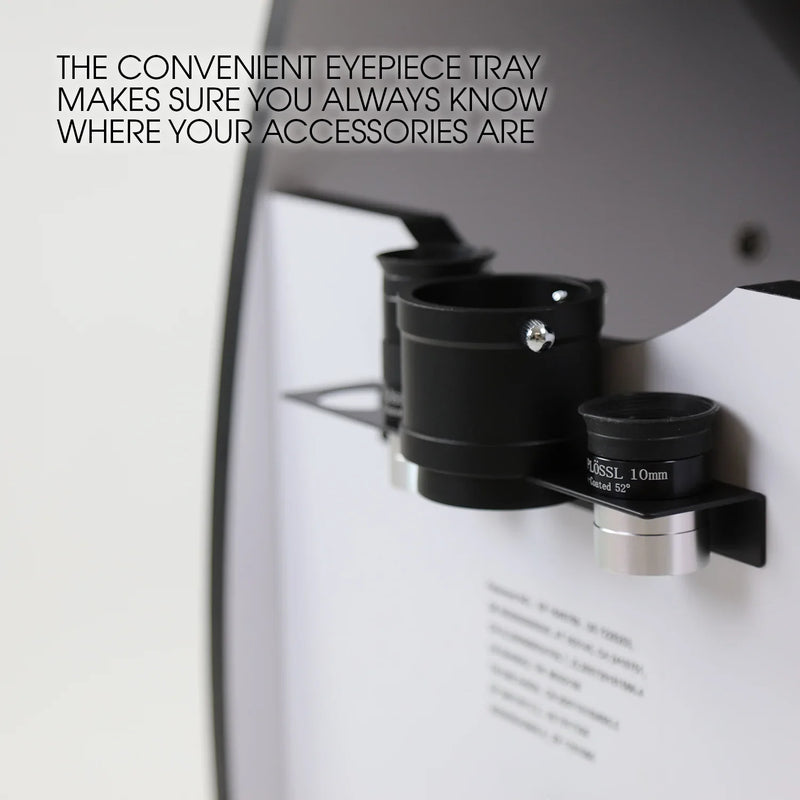

- 25 mm Plossl Eyepiece - 1.25"
- 10 mm Plossl Eyepiece - 1.25"

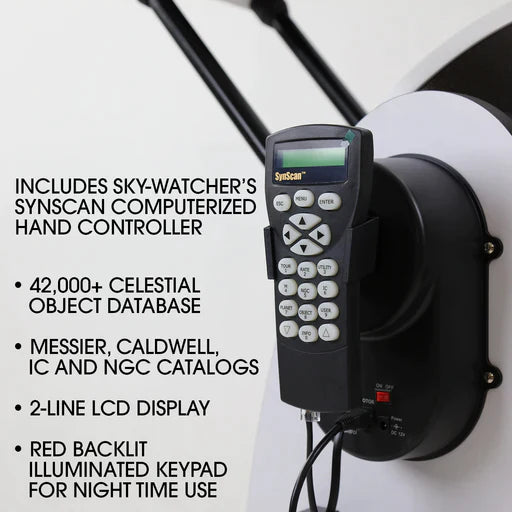

- SynScan Hand Controller with 42,000 Object Database
Warranty & Manuals
Sky-Watcher 2-Year Warranty
