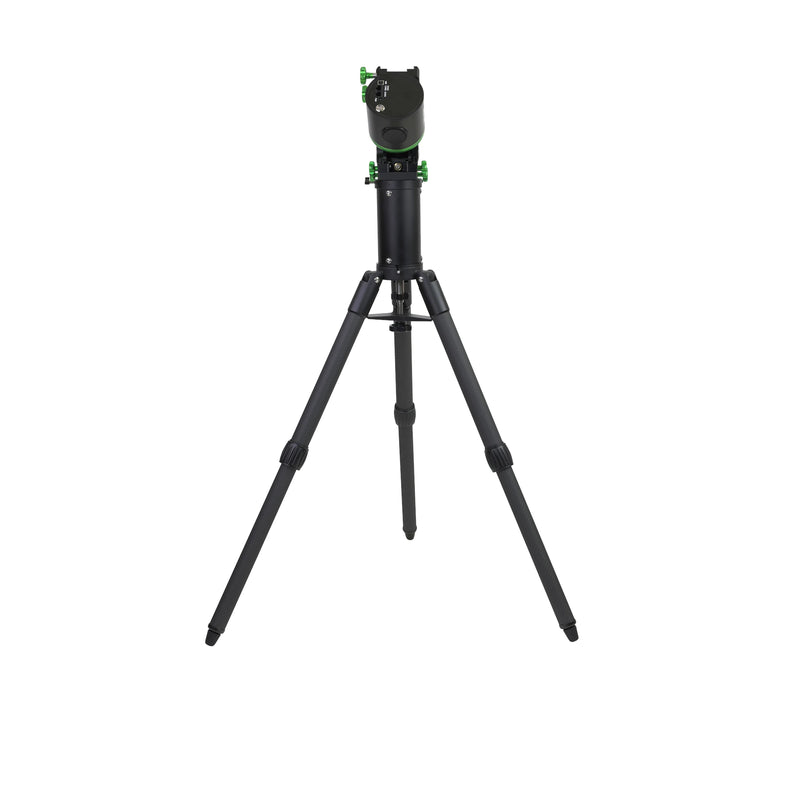

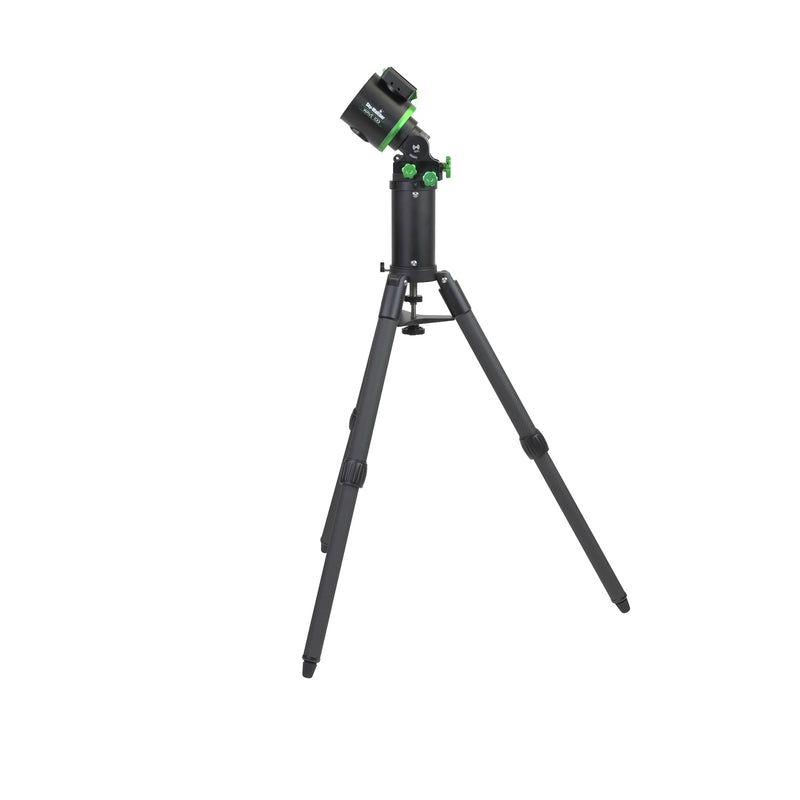

Sky-Watcher Wave 100i with Carbon Fiber Tripod & Extension Tube
The Sky‑Watcher Wave 100i Strainwave Mount with carbon fiber tripod and extension tube is a compact and highly portable GoTo telescope mount designed for astrophotography and visual observing. Built around advanced strain wave drive technology, it delivers smooth, precise tracking while remaining lightweight and travel-friendly. The mount head weighs about 4.3 kg (9.5 lb) and provides a payload capacity of approximately 10 kg (22 lb) without counterweights or up to 15 kg (33 lb) with an optional counterweight, allowing it to support a wide range of refractors, astrographs, and compact telescopes.
The mount operates in both equatorial and alt-azimuth modes and includes dual Vixen/Losmandy-style hybrid saddles, enabling flexible telescope configurations and even dual-scope setups in alt-az mode. It features RA and DEC home positions, a latitude adjustment range from 0° to 90°, and a fast slewing speed of up to about 7.5° per second. Connectivity options include Wi-Fi, Bluetooth, USB-B, and an ST-4 autoguider port, allowing control through the SynScan app, hand controller, or third-party astronomy software such as ASCOM-compatible platforms. The system also includes a red-illuminated latitude scale and bubble level for easier polar alignment and setup in the dark.
The included carbon fiber tripod provides a strong yet lightweight support platform with excellent vibration damping. Its carbon fiber legs and rubber feet improve stability while keeping the overall system easy to transport. The tripod typically weighs around 2.4 kg and can support loads of up to about 20 kg, with adjustable legs that allow a working height of roughly 50 to 74 cm.
The extension tube raises the mount above the tripod to provide additional clearance for longer telescopes and accessories, improving ergonomics and preventing collisions between the telescope and tripod during slews. When combined, the mount, carbon fiber tripod, and extension tube create a stable, portable platform ideal for traveling astrophotographers or observers who need a lightweight yet capable tracking system.
Technical Specifications
Wave 100i
| Category |
Specification |
| Mount Type |
Harmonic/strainwave GoTo mount |
| Operating Modes |
Equatorial (EQ) or Alt-Azimuth (AZ) |
| Payload Capacity (no counterweight) |
10 kg (22 lb) |
| Payload Capacity (with counterweight) |
15 kg (33 lb) |
| Mount Head Weight |
4.3 kg (9.5 lb) |
| Mount Dimensions |
128.4 × 171 × 235.5 mm |
| Transmission System |
Belt-driven stepper motors with harmonic reducer |
| Gear Reduction Ratio |
300:1 on both axes |
| Maximum Slew Speed |
Up to 2400× (~7.5–10°/sec) |
| Tracking Rates |
Sidereal, Lunar, Solar |
| Latitude Adjustment Range |
0° – 90° |
| Saddle Type |
Dual-fit Vixen / Losmandy dovetail |
| Home Position |
RA and DEC mechanical stop / home position |
| Connectivity |
Wi-Fi, Bluetooth |
| Ports |
USB-B, USB-A, ST-4 autoguider, SynScan handset, power |
| Software Compatibility |
ASCOM, INDI, SynScan Pro, Stellarium, SkySafari |
| Power Requirement |
12V DC, 2A |
| Power Consumption |
~0.4A idle, ~1.8A during GoTo |
| Operating Temperature |
−10 °C to +50 °C |
| Safety Features |
RA power-off braking system |
| Included Accessories |
Carry case, cables, LED-illuminated bubble level |
Carbon fiber tripod
| Category |
Specification |
| Material |
Carbon fiber legs with metal hardware |
| Tripod Weight |
~2.4 kg (5.3 lb) |
| Load Capacity |
Up to 20 kg |
| Minimum Height |
500 mm |
| Maximum Height |
737–747 mm |
| Leg Sections |
2 |
| Leg Diameter |
40 mm / 35 mm |
| Mount Connection |
3/8"-16 center bolt |
Extension tube
| Category |
Specification |
| Purpose |
Raises mount above tripod for additional clearance |
| Compatibility |
Wave 100i and Wave 150i mounts |
| Mount Interface |
Tripod-to-mount adapter column |
| Typical Height |
~7 in (≈180 mm) extension |
| Benefit |
Prevents telescope/tripod collisions and improves ergonomics |
In the Box
-
Sky‑Watcher Wave 100i Strainwave Mount mount head
-
Secondary dual Vixen / Losmandy dovetail saddle
-
Carbon fiber tripod compatible with Wave mounts
-
Sky‑Watcher Wave Extension Tube (pier extension)
-
LED-illuminated bubble level
-
12V cigarette-lighter power cable
-
USB-B connection cable for firmware updates / PC control
-
Hard carrying case with foam interior
-
Instruction manual / documentation
Warranty
Sky-watcher 2-Year Warranty
