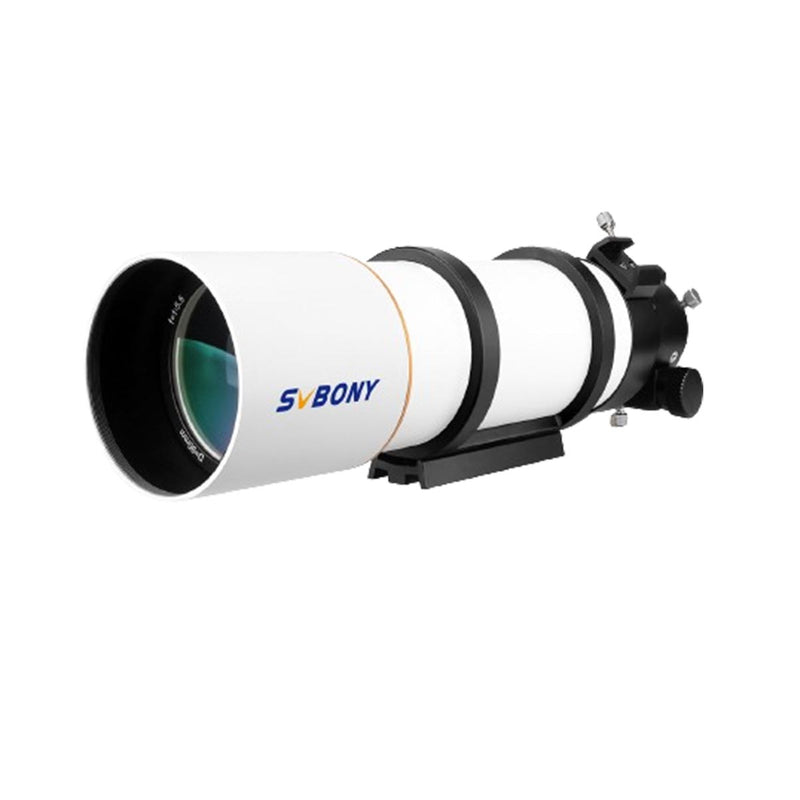

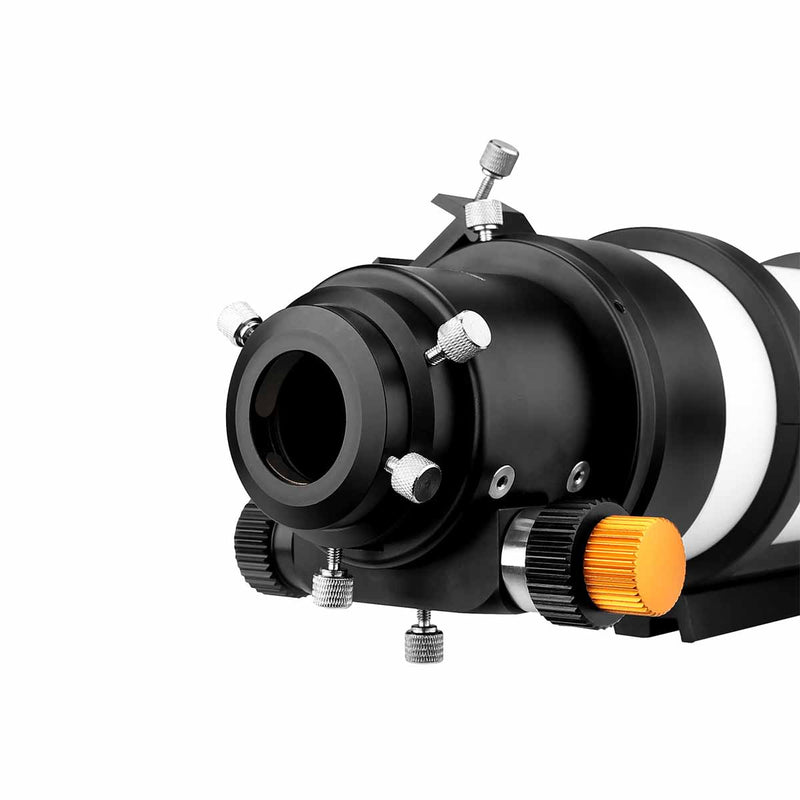

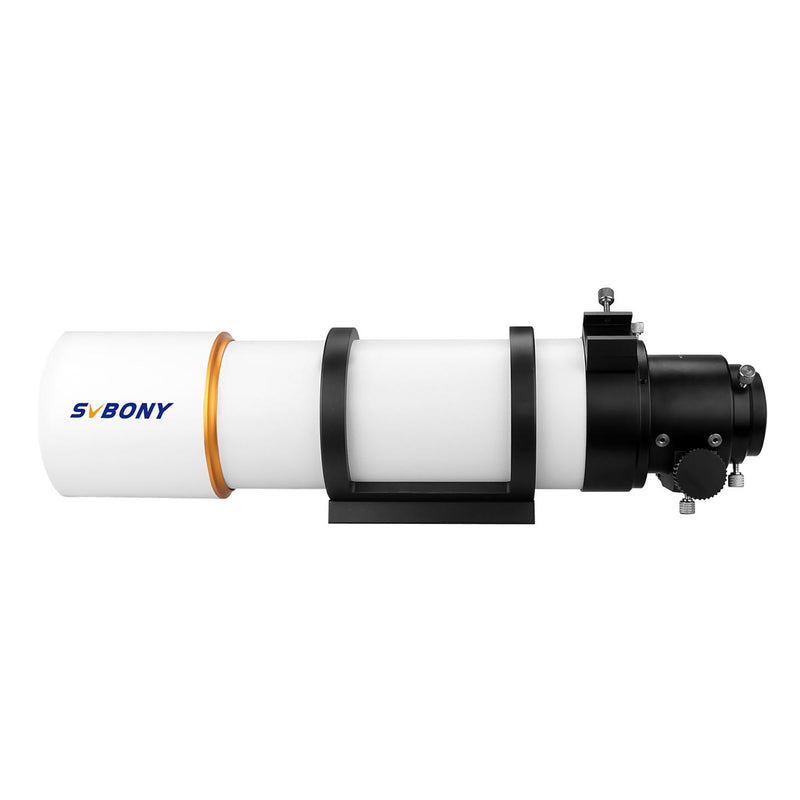

The SV48P telescope has outstanding optics, high-quality mechanical components. The doublet air-spaced achromatic lens fully multi-coated lens provides great optical performance, maximizing light transmission while eliminating false color. The 2-inch rotatable dual-speed focuser has a smooth operation, offers you a great feel and precise adjustability. Compare to the original SV48, we bring an upgrade to SV48P this time. Now there is a bracket for the tube which makes it more stable on your mount also with the 130mm dovetail base. For the focuser, the toothed focusing knob makes it more friendly for viewing with naked eyes.
Technical Specifications
Model
|
SV48P |
Optical Design |
Refractor |
Aperture |
90mm |
Optic Coated |
FMC |
Objective Lens |
Doublet air-spaced achromatic design |
Focal Length |
500mm |
Focal Ratio |
F/5.5 |
Eyepiece Barrel Diameter |
2-inch (w/ 1.25 inch adapter) |
Focuser |
2 inch R&P Double Speed Focuser |
Millimeter markings on focuser drawtube |
Yes |
360-degree rotatable |
Yes |
Dust plug |
One 1.25" dust plug included |
Finder scope Bracket |
Yes |
Mount Type |
Dovetail Plate |
Dovetail Plate Length |
130mm |
Net Body Weight |
2730g / 96.3oz |
The front cap size |
109mm, thread size: M103.5×1-6h |
In the box
SV48P 90F5.5 Refractor
130mm Dovetail
2 inches Focuser with 1.25 inch adapter
Warranty & Manuals
Svbony 1-Year Warranty
