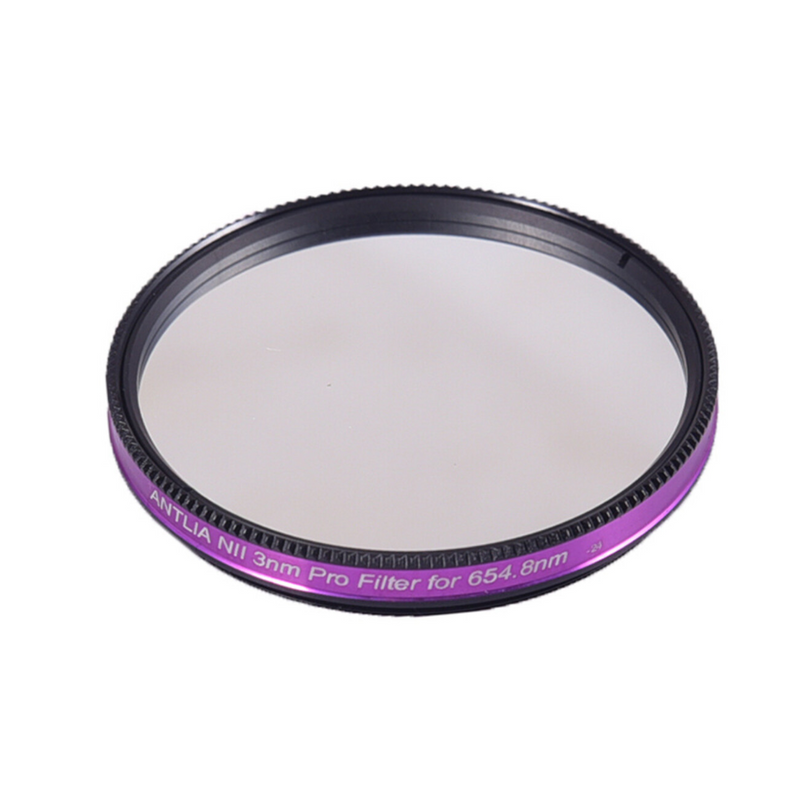

Antlia NII 3nm Pro Narrowband Filter - 2" (NII-2)
Antlia NII 3nm Pro Narrowband Filter - 2" (NII-2) is backordered and will ship as soon as it is back in stock.
Pickup available at ASTRONOMY PLUS
Usually ready in 2 hours
FREE SHIPPING FOR ORDERS OVER $500* 🆓🚚
FREE SHIPPING FOR ORDERS OVER $500* 🆓🚚
*Some exceptions may apply. More info
We Have it in Stock? We're on it, shipping your order on the same day.
We Have it in Stock? We're on it, shipping your order on the same day.
*Ordered before 2PM ET & Business Hours only / This is an estimation and may vary
What if the product is not in stock?
What if the product is not in stock?
🛫 If the item is unavailable: It may be in transit to us or on order with the supplier. If not, we will promptly place the order. In case of delays, we will do our best to keep you informed. Don't hesitate to email us for delays.
🇨🇦 Canadian Authorized Dealer
🇨🇦 Canadian Authorized Dealer
Buy with confidence from a trusted Canadian astronomy retailer. We provide full pre-sale and after-sale support, expert advice, warranty assistance, and real technical help from passionate astronomers.
Antlia NII Pro 3nm Filter – Maximum Narrowband Performance
The Antlia NII Pro 3nm filter is engineered to deliver exceptional performance in narrowband astrophotography, featuring an ultra-narrow 3nm bandwidth (FWHM). This tight bandpass significantly enhances contrast in emission nebulae by effectively suppressing unwanted background light.
With an impressive 88% transmission at the NII line (654.8nm), this filter ensures maximum signal capture and reveals fine, well-defined nebular structures.
The out-of-band blocking is rated at OD5 (0.001%), providing excellent signal-to-noise ratio (SNR) by minimizing interference from unwanted wavelengths. Its steep spectral profile is specifically designed to reduce halos around bright stars, a common issue in narrowband imaging.
Key Features of the Nitrogen Filter
- Ultra-narrow 3nm bandwidth for maximum contrast
- High transmission (up to 88%) for strong signal capture
- Excellent halo reduction with steep spectral cutoffs
- OD5 out-of-band blocking for superior SNR
- Single substrate design to minimize internal reflections
- Edge-blackened (unmounted versions) to reduce stray light
- Compatible down to f/3 with minimal signal loss
- High optical reliability, reducing post-processing needs
Applications
- Ideal for NII emission nebulae
- Effective in both light-polluted and dark sky conditions
- Allows for extended imaging sessions even under moonlight
Important
This filter is designed specifically for deep-sky objects emitting in the NII wavelength and is not suitable for targets without NII emission.
NII (Nitrogen II – 654.8 nm)
- Captures nitrogen emission, often located near Hα regions
- Reveals fine structures and filaments not always visible in Hα
- Adds depth and contrast when combined with Hα and SII
- Less commonly used alone, but very powerful in advanced imaging
Best for: enhancing detail in emission nebulae and advanced narrowband combinations

Filter Ring:
2’’ (M48*0.75)
Ultra-thin filter cell to minimize vignetting by maximize possible clear aperture
Black Anodized Finish
Laser Engraving No Fading
Not Recommended:
Solar imaging
Night visual observation
Not Permitted:
DO NOT LOOK AT THE SUN WITH THIS FILTER DIRECTLY
Serious eye damage will result if you fail to observe the warning.
Technical Specifications
|
NII 3nm Pro |
|
|
FWHM (Full width at half maximum): |
3nm |
|
CWL (Central Wavelength) |
654.8nm |
|
Peak Transmission |
88% |
|
Blocking |
> 5 OD (out of band blocking) @ 300-1100nm |
|
Filter Thickness |
2mm+/-0.05mm |
|
Basic Substrate |
Optical, Single / Non-glued substrate |
|
Surface Quality |
S/D (scratch/dig)= 60/40 (Refer to MIL-O-13830 |
|
Transmitted Wavefront |
Lambda/4 or better. |
|
Parallelism |
less than 30 arcsec |
|
Filter Ring |
2'' (M48*0.75) |

In the Box
- NII 3nm Pro Narrowband Filter - 2''
Warranty & Manuals
Antlia 3-Years Warranty Against Delamination
