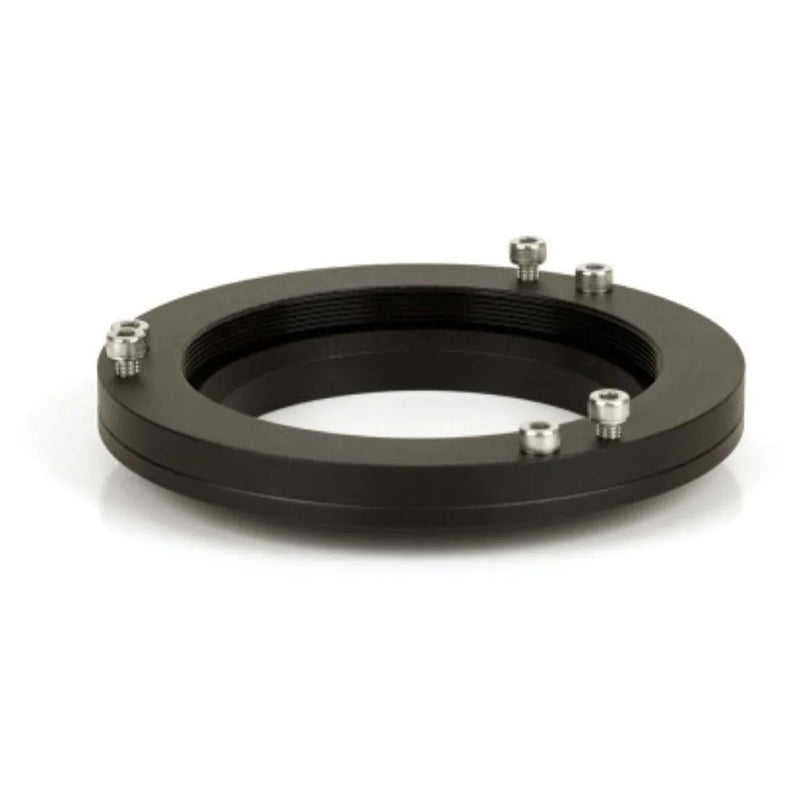

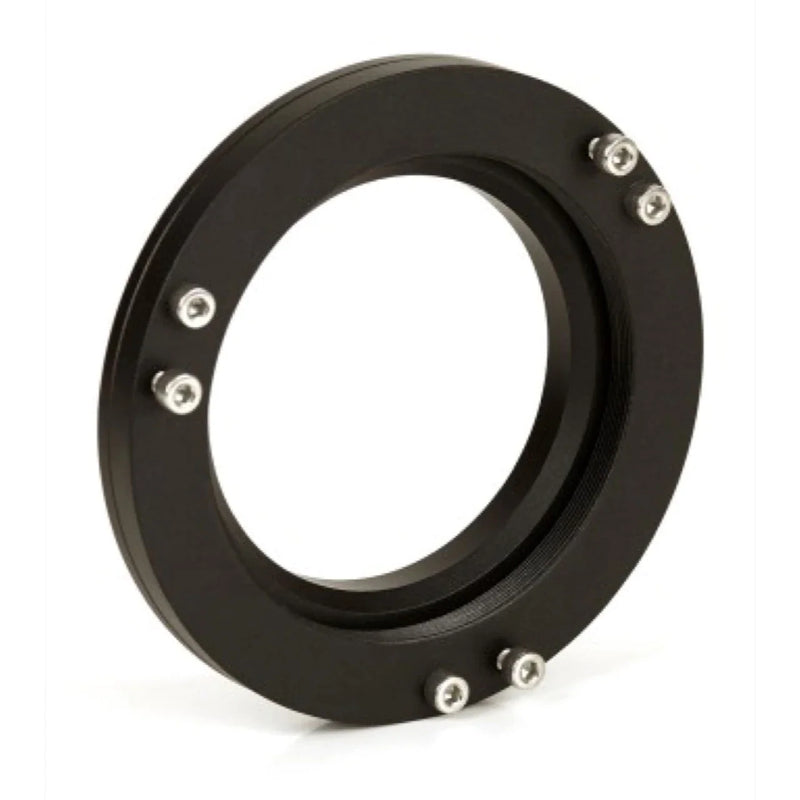

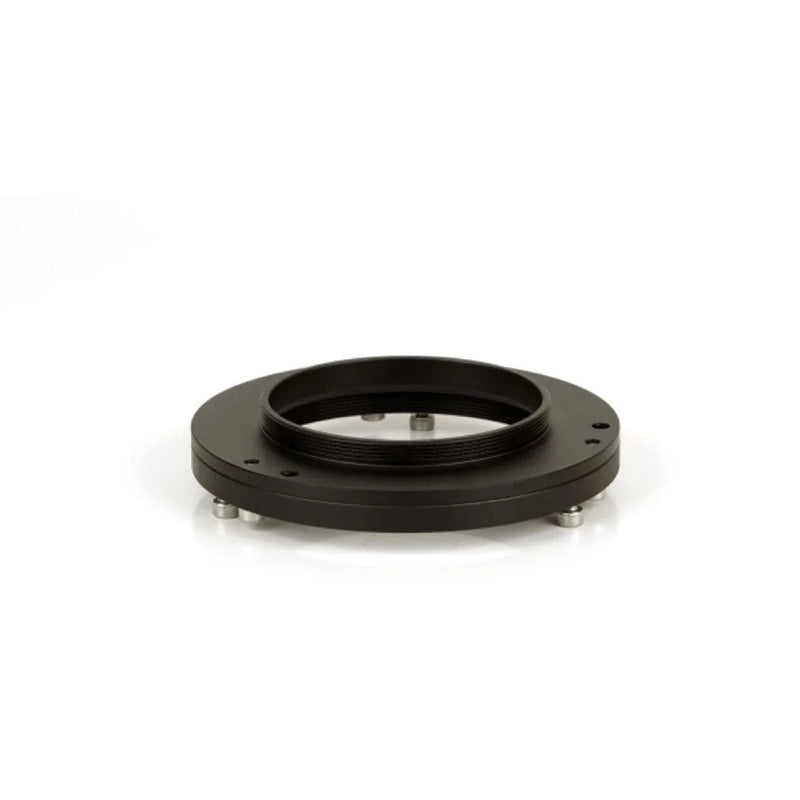

APM Adjustment Flange for M82 Reducer

With our tilt adapter you can correct a possible tilting of your camera sensor in the beam path. Tilting can be caused by the focuser, decollimation of the primary optics or by clamped sleeves or inclined screw connections. By inserting the tilt adapter, you can carefully correct the sensor position and achieve a optimal result.

With 3 pairs of push-pull screws you can correct the angle of the sensor by a fraction of a millimeter. With the appropriate software, tilts can be identified and can now effectively removed by test exposures between the adjustment steps.

Characteristics:

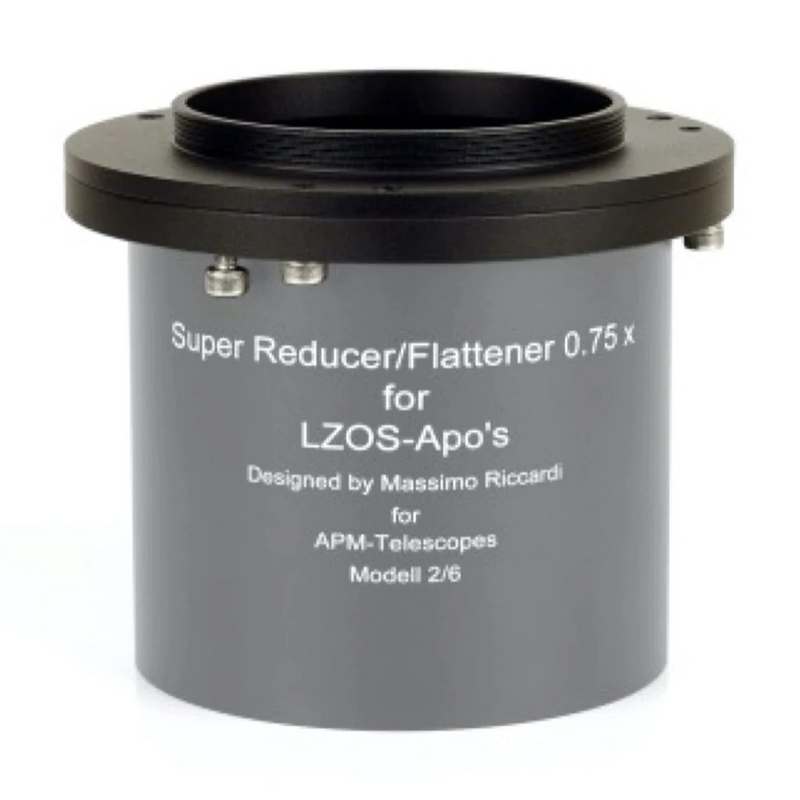

• Usable with the APM M82 reducer/flattener
• 3 push pull screw pairs for fine adjustment
• Stable and reliable construction for maximum setup stability

Technical Specifications
