Baader Planetarium  |  SKU: BAA-2458381-U
New arrival

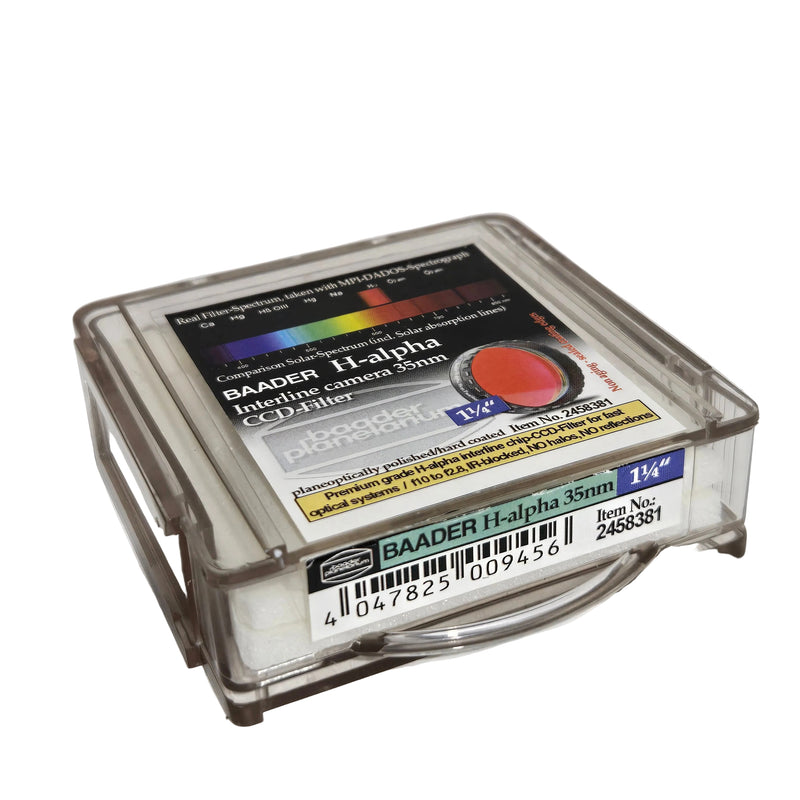

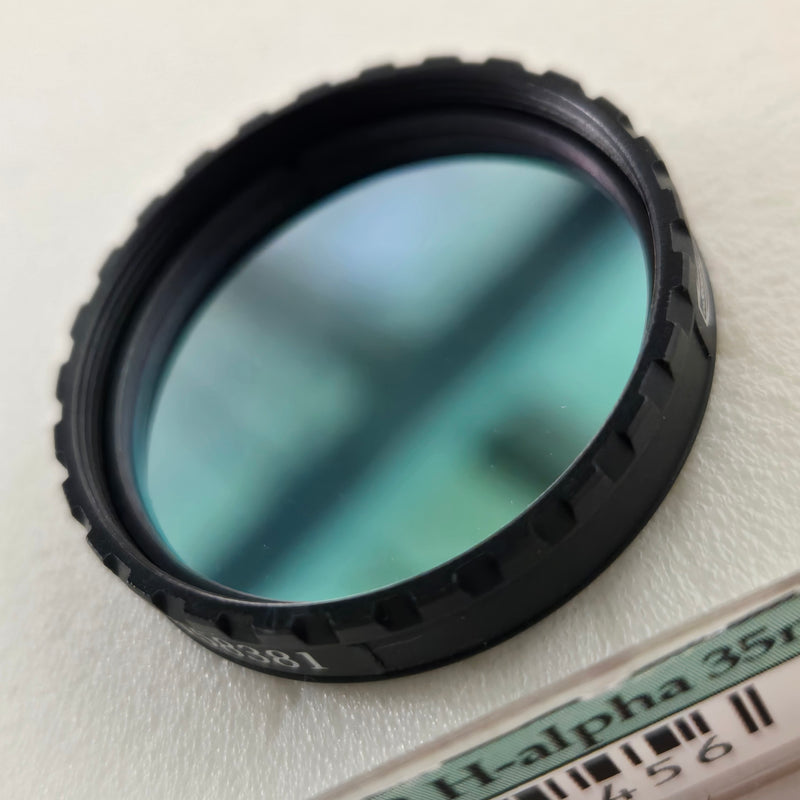

Baader 1.25'' H-alpha 35nm CCF Filter - USED (2458381-U)

Regular price $3500
Shipping calculated at checkout.

Pickup available at ASTRONOMY PLUS

Usually ready in 2 hours

FREE SHIPPING FOR ORDERS OVER $500* 🆓🚚

*Some exceptions may apply. More info

We Have it in Stock? We're on it, shipping your order on the same day.

*Ordered before 2PM ET & Business Hours only / This is an estimation and may vary

What if the product is not in stock?

🛫 If the item is unavailable: It may be in transit to us or on order with the supplier. If not, we will promptly place the order. In case of delays, we will do our best to keep you informed. Don't hesitate to email us for delays.

🇨🇦 Canadian Authorized Dealer

Buy with confidence from a trusted Canadian astronomy retailer. We provide full pre-sale and after-sale support, expert advice, warranty assistance, and real technical help from passionate astronomers.

Baader 1.25'' H-alpha 35nm CCF Filter - USED

  • Premium grade H-alpha interline chip CCD-filter for fast optical systems f/10 to f/2.8
  • IR-blocked
  • NO halos, NO reflections, NO ghosting
  • Non-aging sealed coating edges

Baader's new H-Alpha passfilter enables high-contrast deep sky images of H-II regions (such as the N. American Nebula). Its medium 35nm FWHM bandwidth is ideal for interline CCD cameras ( like SBIG ST-2000/STL11000). The lower sensitivity of interline transfer CCDs benefits from the more efficient 35nm FWHM. The sharp bandpass and > 90% high efficiency coatings make the Baader H-Alpha filter superior to the common colored-glass based filters, all at a reasonable price.

The Baader H-Alpha filter shares the same outstanding features as all the other Baader imaging filters. Unmatched optical quality, and high efficiency hardened multicoatings result in the sharpest and highest contrast images possible.

Technical Specifications

MANUFACTURER Baader Planetarium
SKU (#) 2458381
EAN CODE 4047825009456
WEIGHT (KG) 0.059
COLOUR Black
TRANSMISSION RANGE H-alpha
FILTER THICKNESS (WITHOUT CELL) 2 mm
HBW (HALFBANDWIDTH) 35nm
CWL (CENTRAL WAVELENGTH) 656,3 nm
AR-COATING dielectrically coated, planeoptically polished
FILTER SIZE 1 25 inch
FILTER USAGE H-alpha, Interline-CCD, IR-Cut
FILTER MOUNTED Mounted (LPFC 6mm)
TYPE OF FILTER Narrowband
SINGLE OR SET? Single Filter
FILTER SHAPE round



In the Box

 1.25'' H-alpha 35nm CCF Filter - USED
