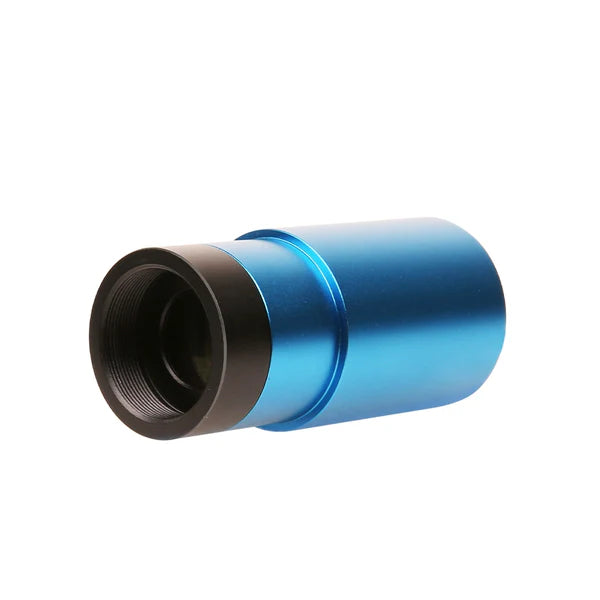

Touptek IMX290M Mono Guiding Camera
The ToupTek GPCMOS02000KMA is a high-sensitivity, compact astronomical camera designed for precision guiding and versatile astrophotography — ideal for telescopes, guiding scopes, off-axis guiders, and planetary/star imaging systems.
Technical Specifications
-
Sensor Type: Sony IMX290 CMOS (monochrome)
-
Sensor Size: 1/2.8″ (approx. 5.6 × 3.1 mm; 6.4 mm diagonal)
-
Resolution: 1920 × 1080 (2.1 MP)
-
Pixel Size: 2.9 µm × 2.9 µm
-
ADC: 12-bit
-
Exposure Range: 0.105 ms – 1000 s
-
Frame Rate (Full Resolution): ~16–18 fps
-
Read Noise: ~0.53 – 0.84 e-
-
Quantum Efficiency (Peak): ~81 %
-
Full Well Capacity: ~11,200 e-
-
Maximum SNR: ~40 dB
-
Shutter Type: Electronic rolling shutter
-

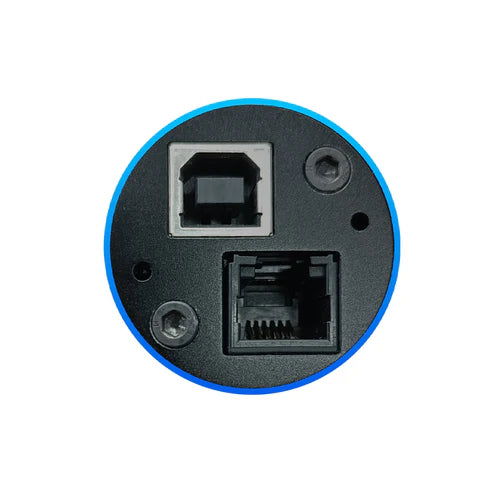

Data Interface: USB 2.0
-
Autoguiding Port: ST-4 compatible
-
Power Supply: USB powered (5 V)
-
Telescope Connection: 1.25″ barrel
-
Mount Thread: C-mount / CS-mount (adapter dependent)
-
Protective Window: Anti-reflective coated optical window
-
Body Diameter: ~35 mm
-
Body Length: ~62 mm (depending on adapters)
-
Weight: ~70 g
In the Box
-
ToupTek GPCMOS02000KMA Monochrome Astronomy Camera
-
USB 2.0 Cable
-
ST-4 Autoguider Cable
-
1.25″ Adapter / Barrel (and optional C-mount adapter depending on package)
-
Dust Cover
