IDAS  |  SKU: IDA-M54 OL7.5

IDAS M54 Filter Holder for RASA 8 (M54 OL7.5)

Regular price $15500
Shipping calculated at checkout.

Option

IDAS M54 Filter Holder for RASA 8 (M54 OL7.5) - Filter Holder Only is backordered and will ship as soon as it is back in stock.

Pickup available at ASTRONOMY PLUS

Usually ready in 2 hours

FREE SHIPPING FOR ORDERS OVER $500* 🆓🚚

*Some exceptions may apply. More info

We Have it in Stock? We're on it, shipping your order on the same day.

*Ordered before 2PM ET & Business Hours only / This is an estimation and may vary

What if the product is not in stock?

🛫 If the item is unavailable: It may be in transit to us or on order with the supplier. If not, we will promptly place the order. In case of delays, we will do our best to keep you informed. Don't hesitate to email us for delays.

🇨🇦 Canadian Authorized Dealer

Buy with confidence from a trusted Canadian astronomy retailer. We provide full pre-sale and after-sale support, expert advice, warranty assistance, and real technical help from passionate astronomers.

IDAS M54 Filter Holder for RASA 8

The IDAS M54 OL7.5 frame holds the IDAS filters series, and is an frame adapter with an optical path length of 7.5mm.

It is designed to be used directly between a Celestron RASA 8 and a standard M54 camera with a 17.5mm flange back (FB). It can also be used in combination with other standard M54 adapters.

Key Features

  • Optimized 7.5mm Optical Path Length
    Designed to fit perfectly between a RASA 8 and a 17.5mm FB camera.
  • Generous Clear Aperture (CA) 47mm
  • The large aperture design allows it to be used with ZWO dual-sensor cameras and full-frame sensor cameras without worrying about vignetting (peripheral light fall-off).

Usage & Connection Examples

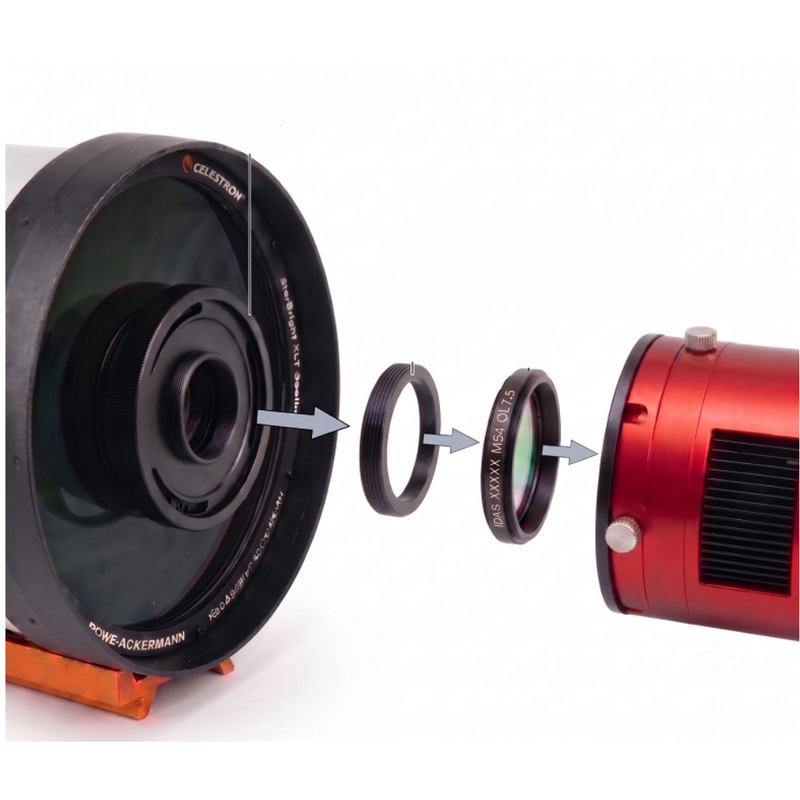

[Usage with RASA 8 ]
Use an "M42 to M54 Adapter Ring" on the RASA 8 telescope side to connect an M54 standard camera with a 17.5mm flange back.

(M42-to-M54 adapter ring is bundled to M54 OL7.5 "ADP", but no bundled to M54 OL7.5 (wihtout "ADP" suffix).


Technical Specifications



Specification Value
Product Type Filter frame adapter
Compatible Filter Series IDAS filter series
Model M54 OL7.5 Frame
Thread Interface M54
Optical Path Length 7.5 mm
Clear Aperture (CA) 47 mm
Primary Compatibility Celestron RASA 8
Camera Compatibility Standard M54 cameras
Camera Flange Back Compatibility 17.5 mm
Mounting Position Between the RASA 8 and a standard M54 camera with a 17.5 mm flange back
Additional Compatibility Compatible with other standard M54 adapters
Maximum Recommended Sensor Size Full-frame (including dual-sensor cameras)
Vignetting Performance Large 47 mm aperture minimizes adapter-induced vignetting for full-frame and dual-sensor cameras (does not account for inherent RASA 8 vignetting)
RASA 8 Connection Requirement Requires an M42-to-M54 adapter ring between the RASA 8 and the M54 frame
Included Adapter (ADP Version) M42-to-M54 adapter ring included with M54 OL7.5 ADP version
Included Adapter (Standard Version) M42-to-M54 adapter ring not included with the standard M54 OL7.5 version


In the Box

  • IDAS M54 Filter Holder

Or :

  • IDAS M54 Filter Holder
  • M54M to M42F Adapter
