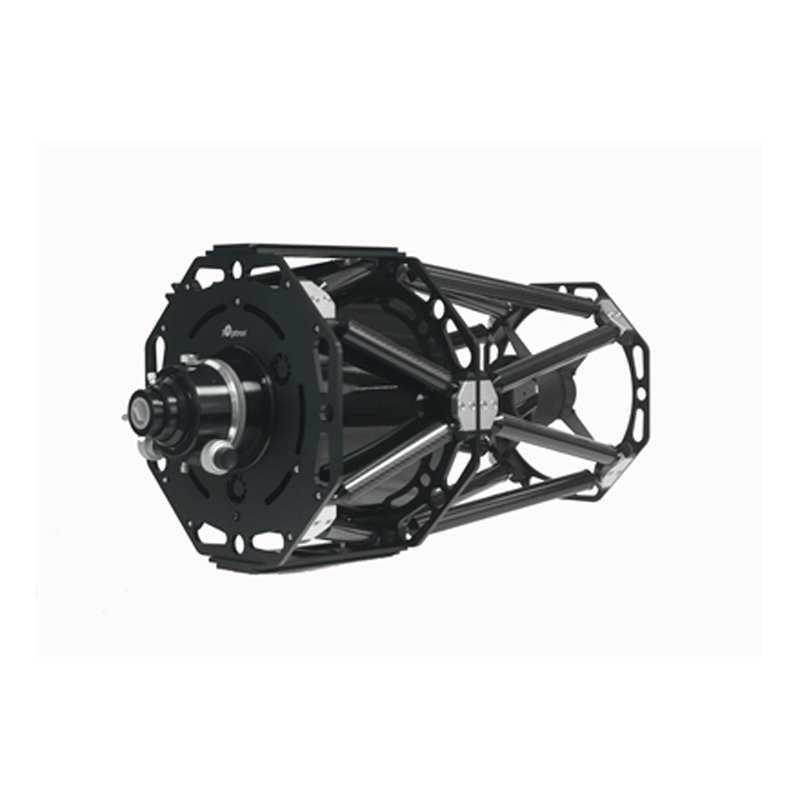

iOptron Photron 10" Ritchey-Chrétien Truss (6114)

The Photon line of Ritchey-Chretien astrograph telescope has been expanded with the addition of four new truss tube models (10,12,14 and 16 inch). Designed for today's astro imager, Photron truss tube RC telescopes deliver a sharp clear image from one edge to the other. The truss tube models are designed t carry on our long standing reputation for creating and manufacturing solid, stable, accurate tracking mounts, in a high quality RC astrograph telescope.

iOptron® Photron truss tube RC telescopes feature low thermal expansion quartz primary and secondary mirrors with highly reflective dielectric coatings maximizing the light getting to your eyepiece or imagine device. The RC optical design delivers coma, spherical and chromatic aberration free results, perfect for color and monochrome imaging. A fixed position primary mirror eliminates image shift that occurs when focusing from other telescope designs. With 1/12th wave or better primary mirror our RC scopes delver images and views that are out of this world.

Each Photron truss tube instrument comes equipped with a dual-speed linear bearing Crayford focuser that can facilitate our optional ASCOM compliant electronic focus control. Three focuser extension rings are provided for a “flex-free” solid extension as a means to take up any unneeded back focus. Its backbone, made up of strong, light, carbon fiber truss supports hold the optics firmly in place while keeping weight to a minimum. It's open air design results in rapid cooling, reducing the "wait time" before use. Photron by iOptron, RC truss tube telescopes are sure to meet or exceed even the most discriminating imager or observers expectations.

Features

• Coma free, chromatic aberration-free, spherical aberration-free optics
• 10" (254mm) optical aperture
• 2032mm focal length
• f/8 focal ratio
• Fixed primary
• Low thermal expansion quartz mirrors
• 3" Dual-speed Crayford focuser
• Optional iOptron Electronic Focuser (#8451)

Technical Specifications

Optical Design Ritchey-Chretien Clear Aperture 10" (254mm) Focal Length 2032mm Focal Ratio f/8 Focuser 10:1 Crayford dual-speed Focuser size 3” Dovetail Bar Losmandy-style Mounting Bar (Top) Losmandy-style Tube material Carbon truss tube Tube Length 650mm Tube Weight 34 lbs OTA Primary Mirror Cooling Fan Yes (three built-in fan, with battery holder) Other Accessories 1" long extension tube X2 2" long extension tube X1 Gross Weight 50 lbs Warranty One year limited

In the Box

• iOptron Photron 10" Ritchey-Chrétien Truss

• 3" dual-speed Crayford focuser
• 2X 1" (25.4mm), 1X 2" (50.8mm) focus extension rings
• Cooling fan battery holder
• Primary and secondary mirror covers

Warranty & Manuals

iOptron 1-Year Warranty
