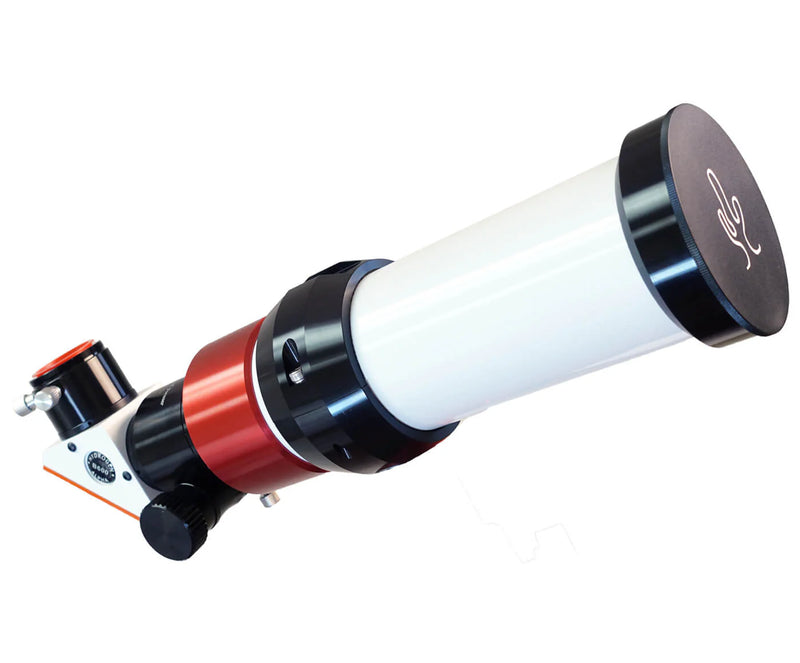

Lunt LS50THa Single Stack Solar Telescope Pressure Tuned
Feather Touch is sold Separately HERE
The LS50THa from Lunt Solar Systems is a 50mm H-alpha, unobstructed, pressure-tuned, dedicated Hydrogen-alpha telescope with a bandpass of <0.75 A. The excitement of viewing our Star through a dedicated solar telescope is sure to provide many many hours of visual enjoyment and educational insights. Furthermore, this package is fully upgradeable at any time without ever having to go back to the factory. Therefore, as the Sun becomes increasingly more active, you will appreciate that the instrument can grow right along with it. The Lunt LS50THa Solar Telescope, complete with a Pressure Tuner, provides the basic essentials perfect for a first time introduction to solar observing. Also it including the newest technology for fine tuning, allowing basic research of the Sun’s disk and some surface details.
Doppler Tuning
True Doppler Tuning (Pressure Tuning) allows for a shift into and away from the user. Amazingly, this adds a 3D-like component to the viewing experience. Meanwhile it has minimal effect on proms due to their being at the edge of the disk, it does have an effect on filaments and active regions on the surface. Also, when looking at a filament at the center of the Sun, the user has the ability to Doppler shift from the base of the filament to the tip. Therefore, you’ll be able to follow the filament through it’s structure toward you and away from you. All of this allows for enhanced visual and imaging capability for the observer as well as a research tool for the avid hobbyist. Most importantly, the pressure tuning system provides an order of magnitude more precision to the tuning of the desired features.
Which blocking filter is right for you?
-
B400 – You are planning to use this telescope visually.
-
B600 – You want a wider field of view and/or plan to do some imaging
-
No Blocking Filter – only choose this package if you already have a Lunt Solar Systems blocking filter at your disposal. All Lunt Solar Systems h-alpha telescopes require a Lunt Blocking Filter!
Add the specially-designed LS50C compact double stack filter (sold separately) and lower the bandpass to less than <0.5 Angstroms.
Technical Specifications
- Telescope Type: Dedicated H-alpha
- Universal Capabilities: H-alpha
- Aperture: 50 mm
- Objective Type: Custom Doublet Optimized at 656 nm
- Objective Coating: Ion Assist Ultra-Narrowband AR (656 nm)
- Focal Ratio: F/7
- Focal Length: 350 mm
- Focuser Options: Helical or Feather Touch
- Mounting: CNC Clamshell and Vixen Style Dovetail
- Storage: Box with Fitted Foam, Hard Case Optional
- H-alpha Etalon Type: Internal Dedicated
- Etalon Wavelength: 656.28 nm
- Etalon Bandpass: <0.7 Å Single Stack, <0.5 Å Double Stack
- Etalon Material: UV Grade Fused Silica
- Etalon Tuning: Doppler True Barometric Pressure Tuning
- Doppler Shifting: Instant
- Blocking Filter Size: 4 mm, 6 mm Diagonal
- Blocking Filter Bandpass: 6 Å
- Sun Finder: TeleVue Sol Searcher compatible

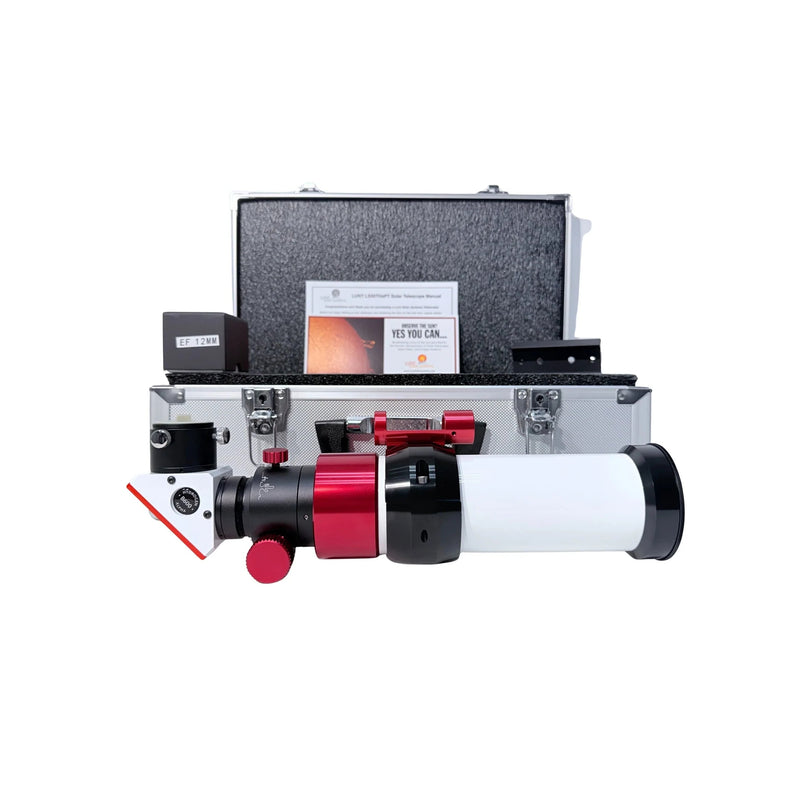

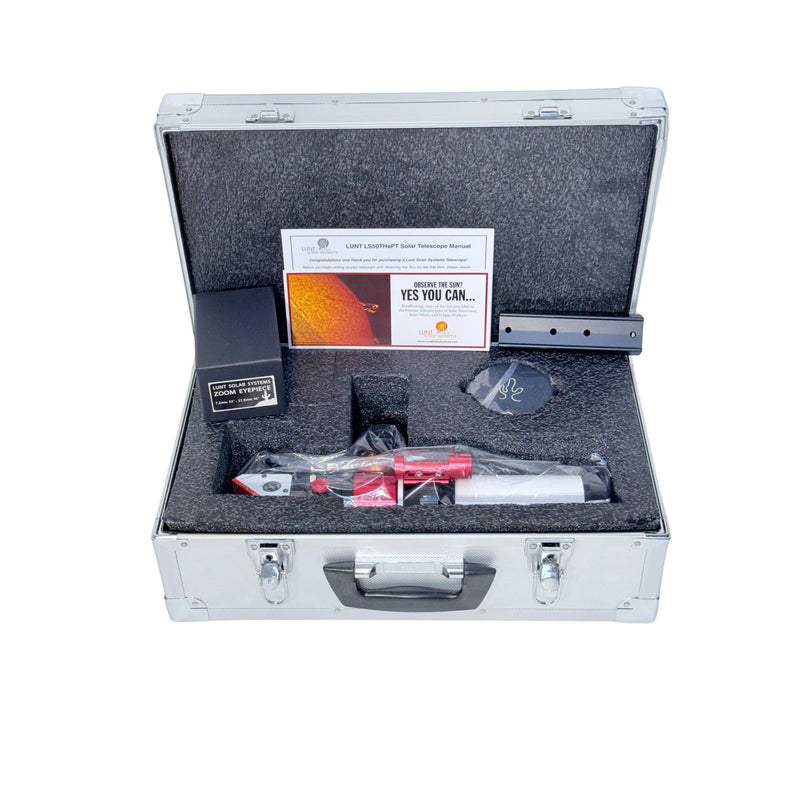

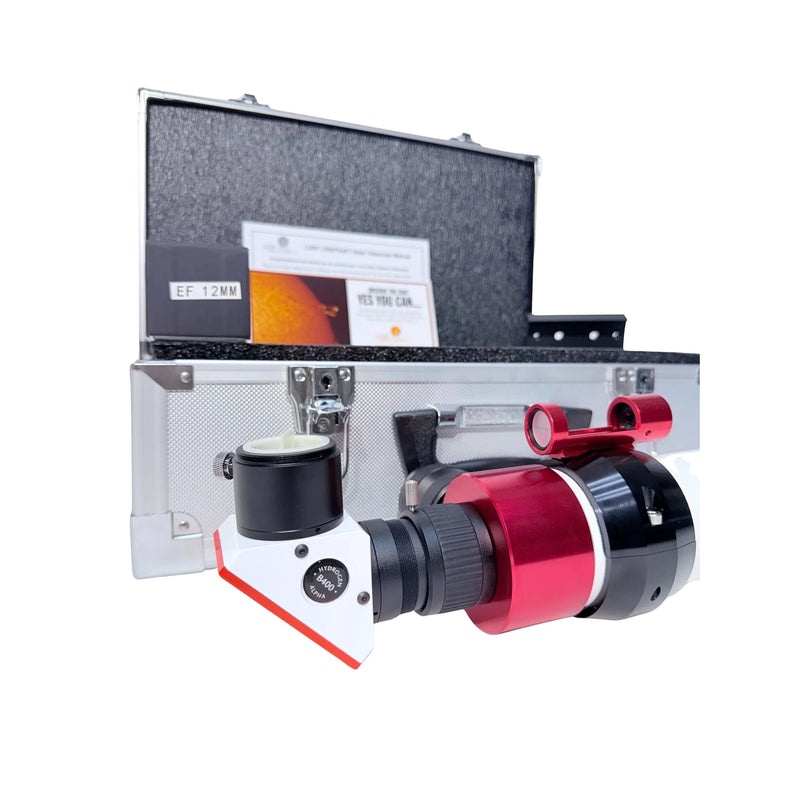

In the Box
Warranty & Manuals
Lunt 5-Year Warranty
