Lunt LS60MT 60mm Universal Day & Night Modular Telescope
The LS60MT is Lunt's most versatile solar telescope. This solar telescope is a true universal instrument built around a professional-grade 70mm ED doublet objective.
By day, the internal pressure-tuned H-alpha module delivers <0.35Å bandpass performance with Doppler True tuning.
By night, remove the solar module in minutes. You then have a premium 70mm f/6 refractor for lunar, planetary, and deep-sky observation.
The ED doublet objective provides the color correction and contrast that observers demand. This Lunt design is built for both visual use and imaging.
The 2" dual-speed focuser with 10:1 fine focus reduction handles heavy imaging loads. It also delivers the precision that narrow-band solar observation requires.
Pressure tuning eliminates the angle-dependent sweet spot of tilt-tuned systems. The entire 60mm aperture delivers uniform bandpass across the field.
Dial in prominences at the limb, then shift to surface detail with a twist of the pressure knob. That control is a key strength of this solar telescope.
What You'll See with This Solar Telescope
By day, you see the full hydrogen-alpha chromosphere at <0.35Å. Prominences arc off the solar limb, while filaments trace dark paths across the disk.
Active regions come alive with magnetic detail. Pressure tuning lets you scan through the chromosphere in depth.
As a 60mm solar instrument, it collects 50% more light than a 50mm instrument. That reveals finer structure and brighter prominences.
By night, the Moon appears in crisp, high-contrast detail. Planetary disks benefit from the color correction that an ED doublet provides.
Deep-sky objects are within the reach of a 70mm aperture, from double stars to bright clusters.
Why This Package
If you want one telescope that does it all, this is it. The LS60MT removes the choice between a dedicated solar scope and a nighttime refractor.
The modular design lets you switch modes in minutes. A 60mm telescope for solar work becomes a 70mm f/6 refractor for night use.
The 2" dual-speed focuser with 10:1 fine focus is included from the start. It provides the mechanical precision both applications demand.
ZWO EAF compatible for automated focus control. The 16mm flat-field eyepiece provides 26x magnification for solar observing.
Technical Specifications
| Specification |
Details |
| Native Aperture |
70mm (ED Doublet, FLP51 glass) |
| H-alpha Aperture |
60mm |
| Focal Length |
420mm |
| Focal Ratio |
f/6 (native), f/7 (H-alpha) |
| Etalon Type |
Internal, pressure-tuned (Doppler True) |
| Bandpass |
<0.35 Å |
| Blocking Filter |
B600 (6mm clear aperture) |
| Focuser |
2" CNC rack & pinion, 10:1 dual-speed, ZWO EAF compatible |
| Eyepiece |
16mm flat-field, 26x magnification |
| Weight |
~7 lbs |
| Night Use |
Yes — remove solar module for 70mm f/6 ED refractor |
| Telescope Type |
Universal day/night modular |

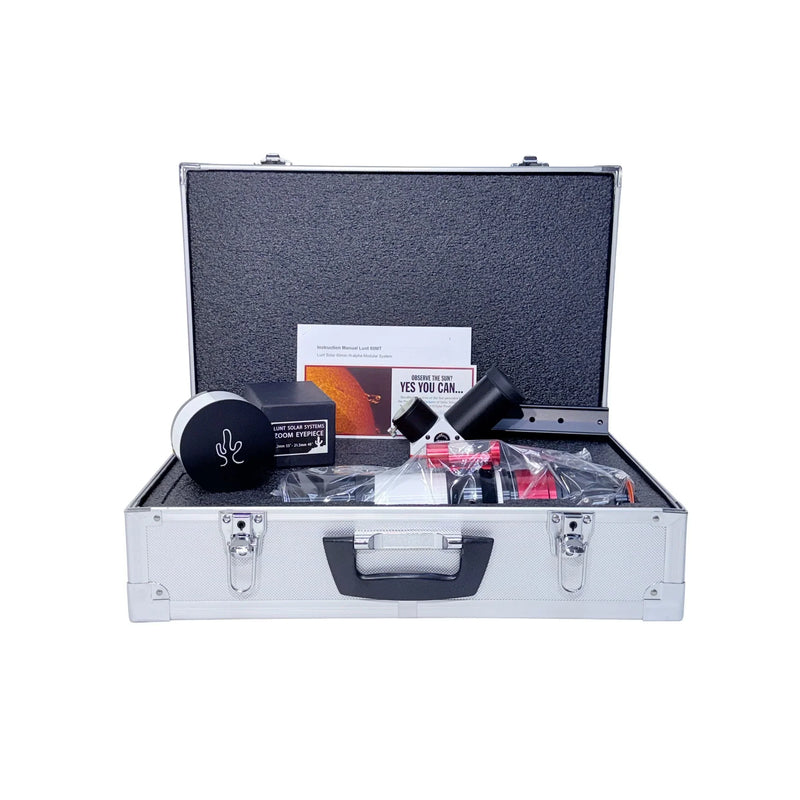

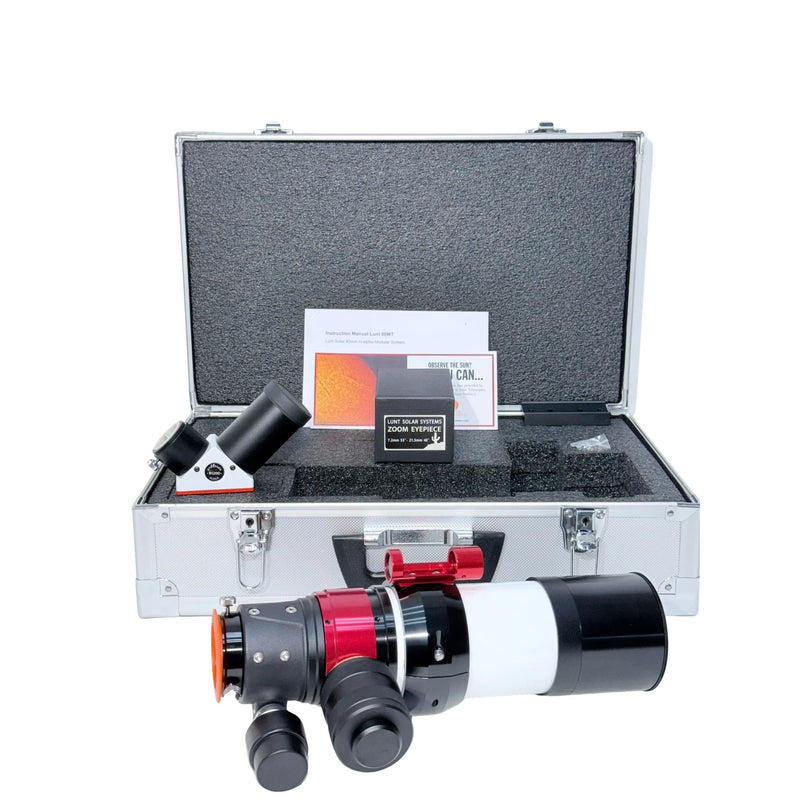

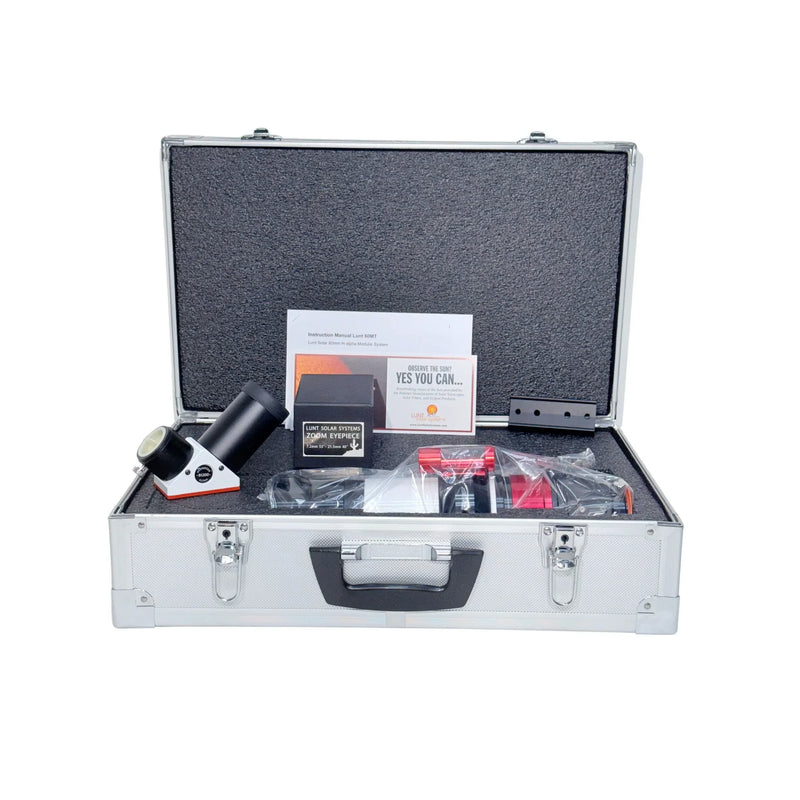

In the Box
Kit:
Standard:
- 60mm Universal Day & Night Telescope
- H-alpha w/ B600 blocking filter
- R&P focuser
- SunLock
- 4" dovetail
- 16mm eyepiece
- Hard case
Enhanced:
- 60mm Universal Day & Night Telescope
- H-alpha w/ B1200 blocking filter
- R&P focuser
- SunLock
- 4" dovetail
- Zoom eyepiece
- Hard case
Premium Plus:
- 60mm Universal Day & Night Telescope
- H-alpha w/ B1200 blocking filter
- R&P focuser
- LS50FHa 0.35A double stack filter
- SunLock
- 4" dovetail
- Zoom eyepiece
- Hard case
Warranty
Lunt 5-Year Warranty. This solar telescope also serves users seeking a compact 60mm solar setup.
