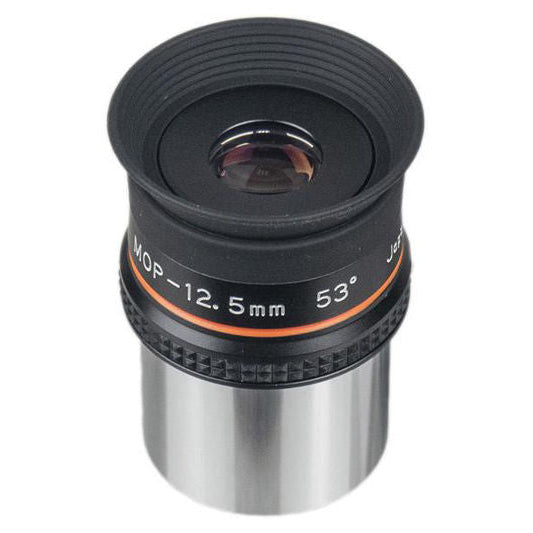

Masuyama 1.25" Ortho Plössl 12.5 mm Eyepiece 53°
Masuyama eyepieces are known for their clear and high contrast imaging and velvet black background. Masuyama eyepieces incorporate a five-element "hybrid Ortho-Plossl" design. They have much better performance towards the edge of the field and improved color performance compared to Plossls and other competing designs.
The good contrast of these high-end eyepieces is achieved with a special cut, internal diaphragms and the best possible internal blackening. Due to the elaborate lens design, the eyepieces get by with only 5 elements, with good correction at the same time.
The eyepieces were developed by renowned optician Dr. Masuyama. Among other things, Dr. Masuyama designed an eyepiece with a focal length of 100 mm, which was used on the historic 60-inch telescope at Mount Wilson Observatory in California. We are pleased to offer you these legendary eyepieces with the latest glass and coating technology.
- Focal length 12.5 mm
- Apparent field of view 53°
- Rubber eyecup for comfortable support of the eye or glasses
- 1.25" barrel without locking groove, with filter thread
- 5 elements in 3 groups
- Latest lenses and multi-layer coating technology
- Developed and manufactured by Ohi Kohki Co. in Japan
- Made in Japan
Technical Specifications
| Barrel size / Filter thread | 1 1/4" with filterthread |
| Field of view | 53° |
| Lenses / groups | 5 / 3 |
| Focal length | 12.5 mm |
| Diameter | 36mm |
| Eye relief | 8mm |
| Height | 53mm |
In the Box
- Eyepiece
- Lens Caps
Manuals & Warranty
Masuyama 1-Year Warranty
