Move Shoot Move Wedge for precise polar alignment

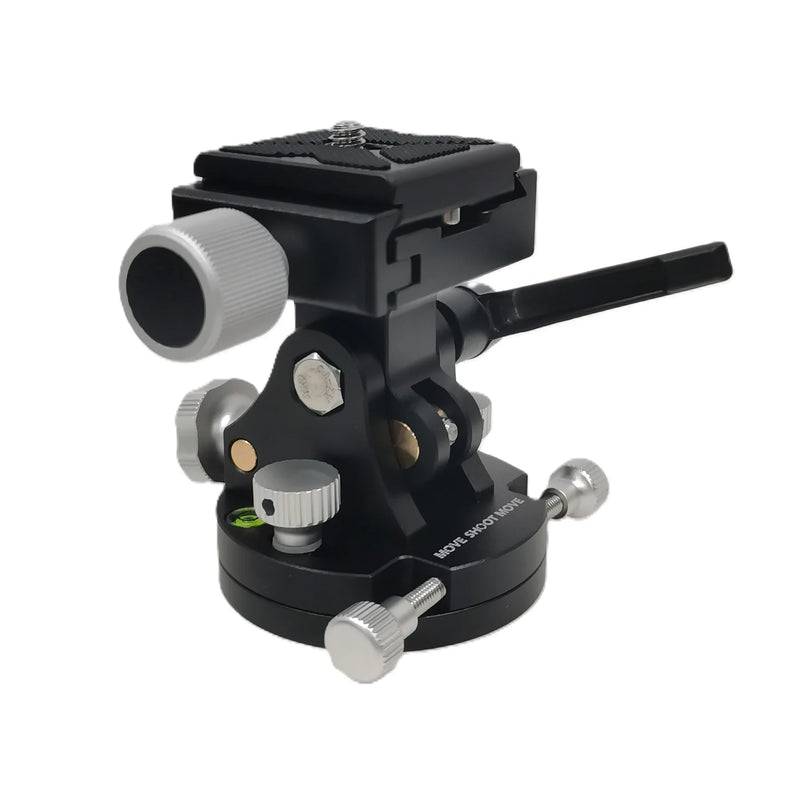

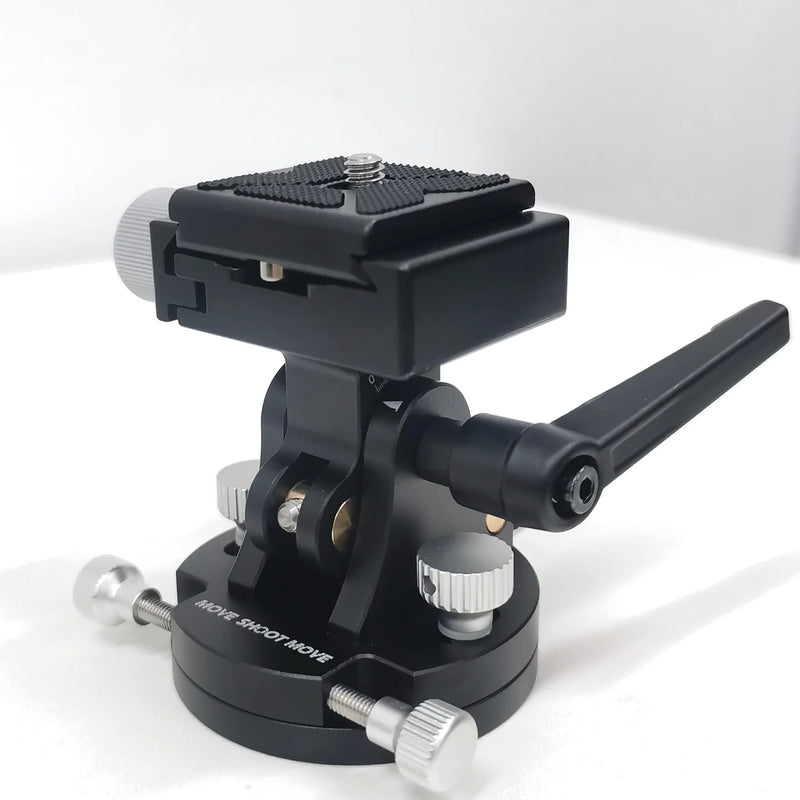

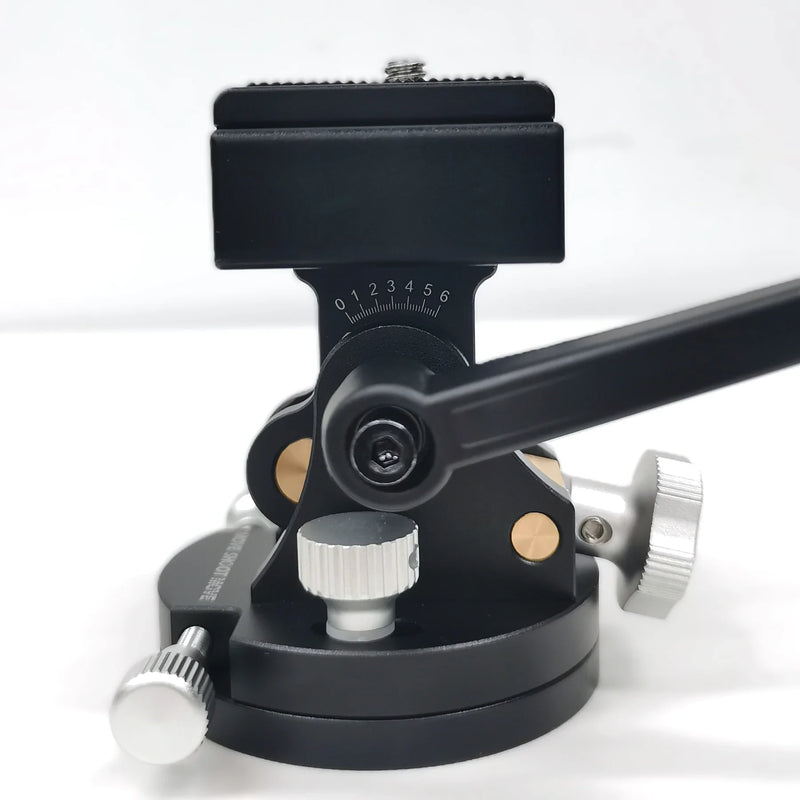

The MSM Wedge is designed for precise polar alignment, similar to a ballhead but with finer adjustment capabilities. It features four knobs and one handle, for multi-directional adjustments, allowing you to set your tracker or camera at various angles. On top of the Quick-Release Plate has a standard 1/4"-20 threaded screw so that you can attach anything with a 1/4"-20 threaded screw upon it.
Wedge + Panning Base. Why this combo?
-
The panning base lets you rotate your gear freely in any direction without moving the tripod—perfect for quick setup, especially in unfamiliar locations.
-
The wedge provides fine-tuned, precise adjustments, making polar alignment smoother and more accurate.
-
Together, they simplify both coarse and fine alignment, saving you time and effort in the field.
To attach the Seestar to the wedge, you'll need to obtain a 3/8'' to 1/4 screw adapter (optional) or 1/4" female - to - 3/8" male conversion adapter (optional)
Technical Specifications
Wedge Specifications
| Specification | Details |
|---|---|
| Total Height | 77.5 mm |
| Base Diameter | 58.8 mm |
| Net Weight | 0.70 lb (318.2 g) |
| Maximum Load | 11 lb (5 kg) |
| Arca Swiss Plate | Included |
| Bottom Screw Hole | 3/8" Screw Hole |
General Technical Data
| Specification | Details |
|---|---|
| Color | Black |
| Material | CNC-Milled Aluminum Alloy |
| Tilting Adjustment | 0° – 60° |
| Compatibility | Any rig with ARCA Swiss on the bottom (e.g., MSM Rotator, MSM NOMAD, Seestar S30, Seestar S50, Dwarf 2, Dwarf 3, etc.) |
Panning Base Specifications
| Specification | Details |
|---|---|
| Base Diameter | 60 mm |
| Height | 19 mm |
| Weight | 13.5 g |
| Scale Markings | Major gap: 15° |
| Minor mark: 2.5° (15° divided into 6 equal parts) |
The adjustment knob of the panning base extends slightly below the base, so it may not be compatible with tripods that have a large, flat mounting surface, as the knob could come into contact with the tripod.

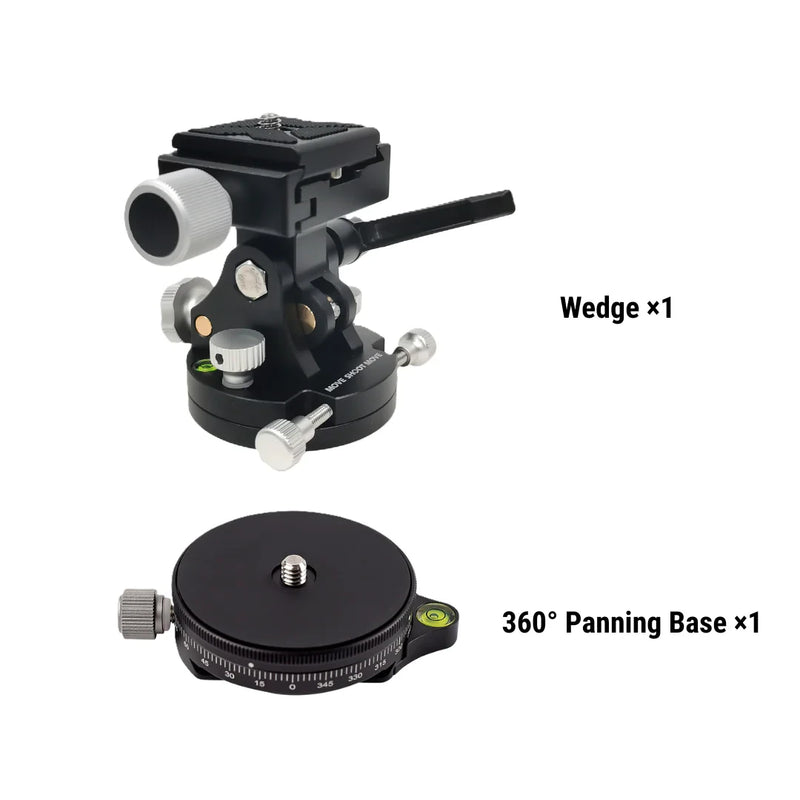

In the Box
- Move Shoot Move Wedge
- Panning base (optionnal)
