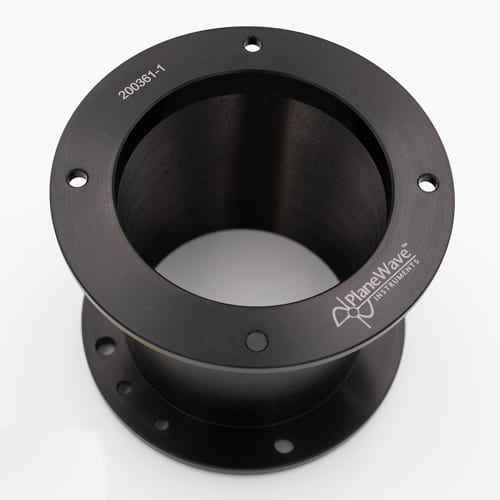

PlaneWave SecureFit Spacers For CDK 14,17,20, & 24

When you need a secure way to attach a CCD camera at the image plane of a CDK telescope, the Secure Fit Spacers get you the optimal back focus spacing. These spacers attach via four screws to the PlaneWave Hedrick and IRF90 Focusers.  When coupled with a PlaneWave SecureFit CCD Adapter, they practically eliminate slippage, movement, and equipment drops. The spacers come in eight different lengths: 2.1″, 3.8″, 4.5″, 5.2″, 5.9″, 6.75″, 7.5″, and 8.25″.

These spacers are made for the CDK14, 17, 20, and 24 and do not work with the CDK12.5.  The CDK12.5 Secure Fit Spacers have a different bore size.

Technical Specifications

In the Box

Selected adapter :

• 2.1"
• 3.8"
• 4.5"
• 5.2"
• 5.9"
• 6.75"
• 7.5"
• 8.25"
