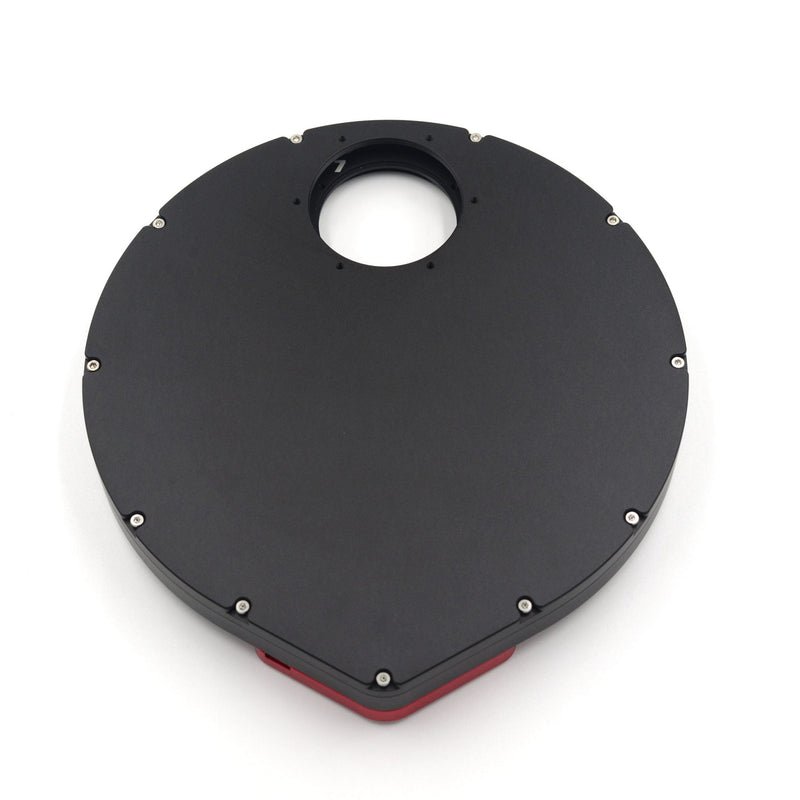

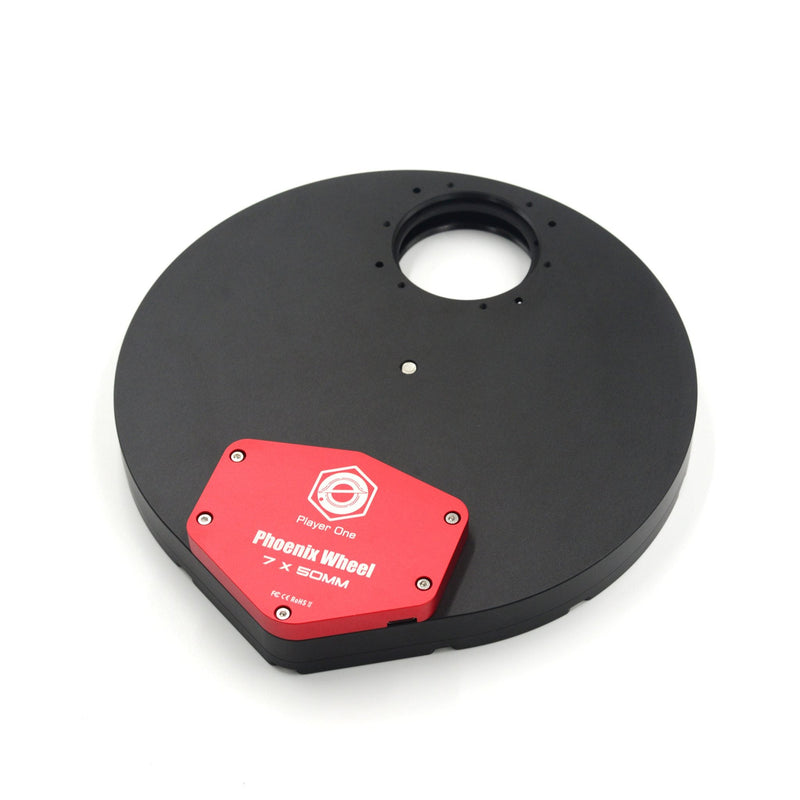

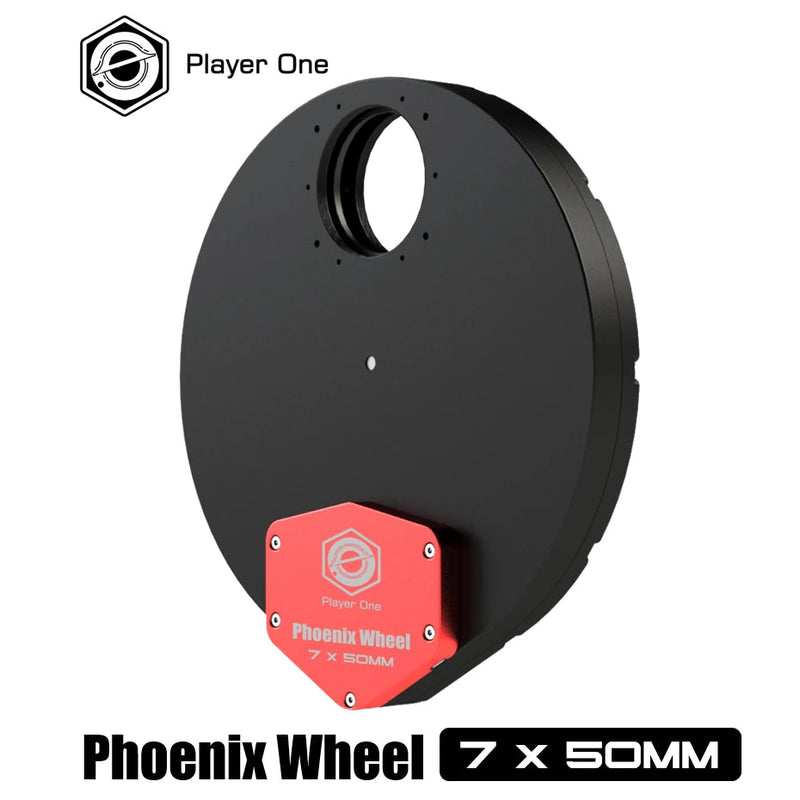

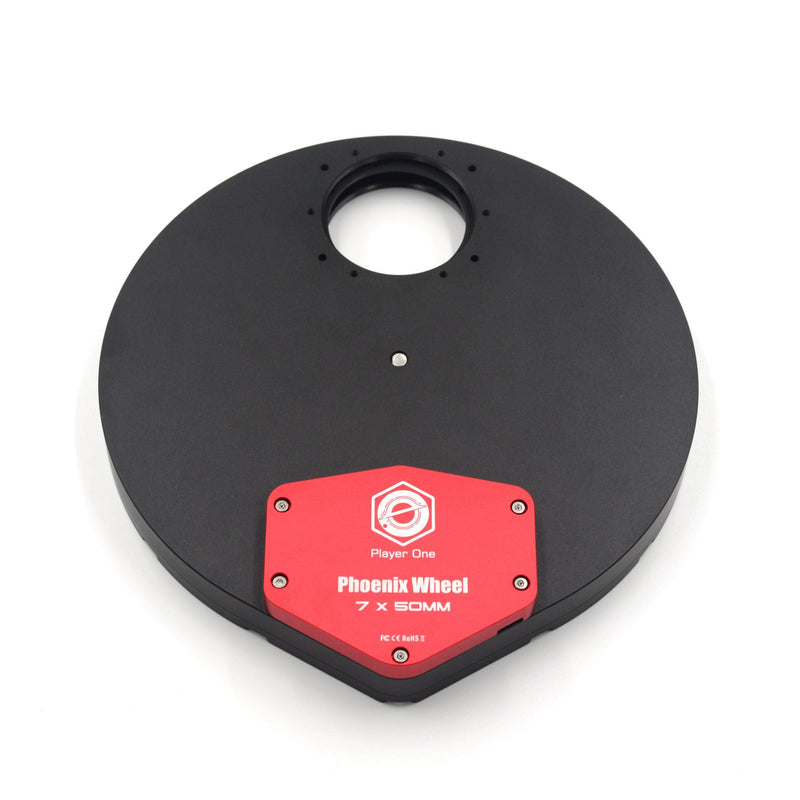

Player One Phoenix Wheel 7x50MM Filter Wheel (PW7X50)

Player One Phoenix Wheel 7x50MM Filter Wheel

Hall Sensing Technology

Traditional infrared sensor scanning positioning hole to locate position, this way positioning accuracy depends on the size of the positioning hole, the smaller the hole, the higher the accuracy, but the diameter of the hole must have at least 1mm diameter, otherwise it is difficult to manufacture.  But if use magnet on filter plate, Hall sensor will detect the center of the magnet, the positioning accuracy is better than infrared sensor.

Hybrid stepping motor

This super thin hybrid stepping motor can provide very smooth rotation, almost no vibration when change the filter position.

Type-C data port

Using USB Type-C port can reduce the thickness of red piece.

Support filters

Filter Positions of Phoenix Wheel 7x50mm support 50mm unmounted filter. Clear path diameter is 49mm which is bigger than 7×2″ wheel, can give less vignetting when using full-frame cameras.

Technical Specifications

Phoenix Filter Wheel 7x50MM

Support model: Poseidon series, Zeus series, Artemis series.

Body Threads: M54*0.75 on both sides

Filter size: 50mm unmounted filter is required

Material：Aluminum 6061-T6

Optical Length: 20mm

In the Box

1) Phoenix Wheel 7x50mm

2) Type-C to Type-A 2M USB2.0 Cable

3) A bag of Filter Mask

4) M54M-M48F Extender 17.5mm

4) A bag of M2 Screws

6) Screwdriver

7) M2 Hexagonal Wrench

Manuals & Warranty

Player One 2-Year Warranty

Manuals

Drivers and Softwares
