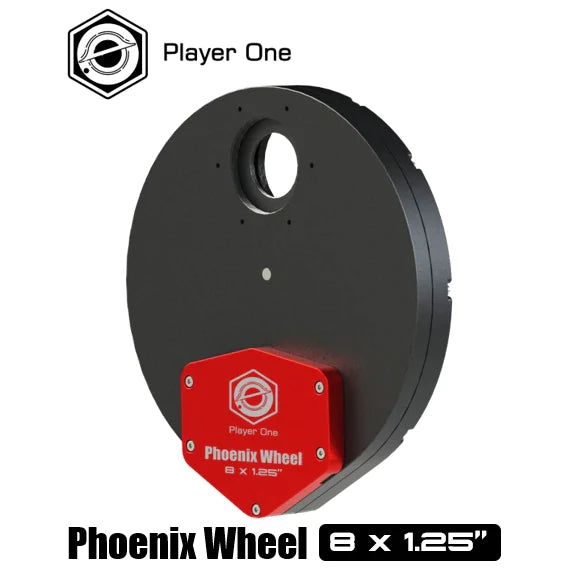

Player One Phoenix Wheel 8x1.25" Electronic Filter Wheel

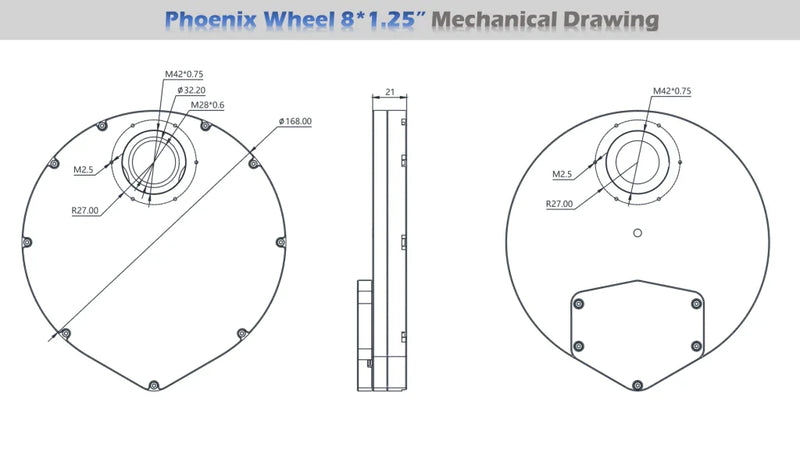

Body Threads: M42*0.75 on both sides
Filter size: 1.25"
Material:Aluminum 6061-T6
Optical Length: 20mm

Hall Sensing Technology
Traditional infrared sensor scanning positioning hole to locate position, this way positioning accuracy depends on the size of the positioning hole, the smaller the hole, the higher the accuracy, but the diameter of the hole must have at least 1mm diameter, otherwise it is difficult to manufacture. But if use magnet on filter plate, Hall sensor will detect the centre of the magnet, the positioning accuracy is better than infrared sensor.
Hybrid stepping motor
This super thin hybrid stepping motor can provide very smooth rotation, almost no vibration when change the filter position.

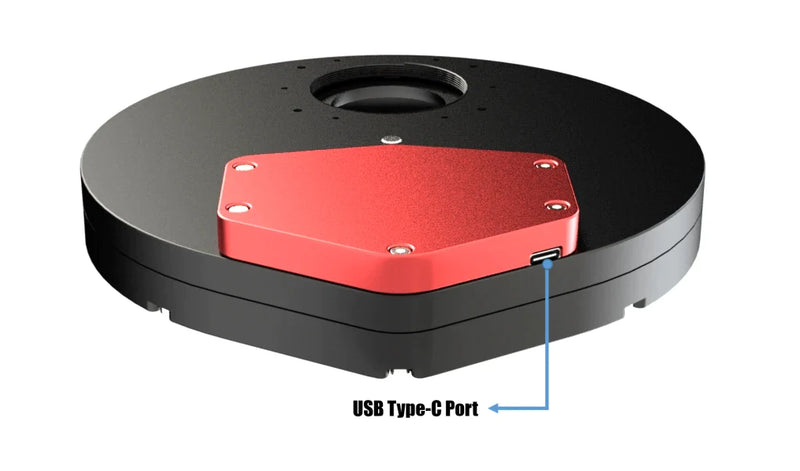

Type-C data port
Using USB Type-C port can reduce the thickness of motor housing.
In the Box
- Phoenix Wheel
- T2-T2 Adapter
- M42-1.25" Rotolock
- T-Mount & 1.25" Cover
- Type-C to Type-A 2M USB 2.0 Cable
- M2 Hexagonal Wrench
