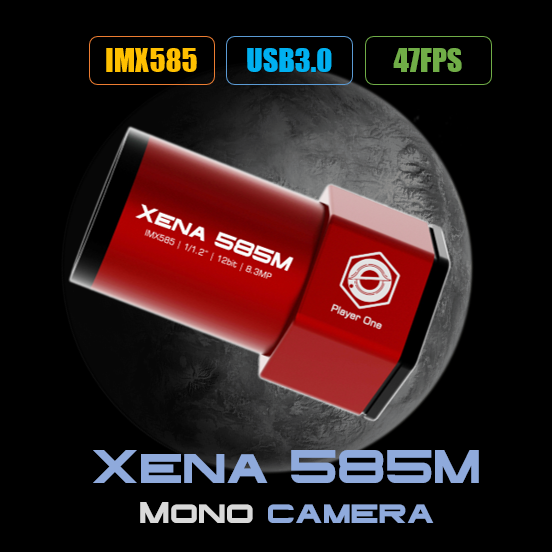

Player One Xena 585M USB3.0 (IMX 585) Mono Camera (XENA-585M)

Regular price $50300
Shipping calculated at checkout.

Pickup available at ASTRONOMY PLUS

Usually ready in 2 hours

FREE SHIPPING FOR ORDERS OVER $500* 🆓🚚

*Some exceptions may apply. More info

We Have it in Stock? We're on it, shipping your order on the same day.

*Ordered before 2PM ET & Business Hours only / This is an estimation and may vary

What if the product is not in stock?

🛫 If the item is unavailable: It may be in transit to us or on order with the supplier. If not, we will promptly place the order. In case of delays, we will do our best to keep you informed. Don't hesitate to email us for delays.

🇨🇦 Canadian Authorized Dealer

Buy with confidence from a trusted Canadian astronomy retailer. We provide full pre-sale and after-sale support, expert advice, warranty assistance, and real technical help from passionate astronomers.

Player One Xena 585M USB3.0 Mono Camera

Player One Astronomy guiding camera series, AKA Dwarf Planet Series, is design for guiding and imaging.

This series including 3 models, Ceres, Sedna and Xena.

Product Description

Xena 585M is a guiding camera developed by Player One Astronomy, which adopts the Sony IMX585 ,1/1.2” format sensor. The 2.9um pixel size accommodates a well depth of 47ke with a total of 8.3MP  (the resolution is 3856×2180), and the diagonal is 12.85mm.

STARVIS 2 Technology

Xena 585M based on Sony newest STARVIS2 technology, it is back-illuminated pixel technology used in CMOS  sensors.

Highlights

Dwarf planet series integrated USB3.0 data port(5Gbps), which can provide over 10 times speed than USB2.0 device(480Mbps).

When you use it for guiding or imaging, this camera series can handle it very well.

Body diameter Dwarf planet camera is 1.25″, it can slide into 1.25″ adapter of guiding scope, makes the whole setup shorter.

With a 5-100MM CS lens attached on the camera, it also can be used as a guider or finder.

Features:

The naming of Player One guiding cameras is interesting. Guiding camera is smaller than planetary camera, that’s why we choose dwarf planets to name it.

The size of each dwarf planet to a certain extent represents the size of camera sensors. We will name Ceres with a 1/3″ sensor camera, and for Xena, we will name it with a 1/1.2 inch sensor camera. All names will be engraved on the housing of the cameras.

Cutting-edge Design

The guiding cameras developed by Player One Astronomy uses technological regular hexagon to construct the main body line.

HDR mode

HDR (High Dynamic Range) mode is a new feature of IMX585 cameras, it will provide larger dynamic range and lower readout noise.

This feature will help users get better images in DSO imaging.

Link:https://player-one-astronomy.com/service/firmwares/

Manually replace the SDK manual

DPS technology

The guiding cameras from Player One Astronomy have DPS (Dead Pixel Suppression) technology. The DPS is anaylse many dark frames to find out thoes fixed abnormal pixel and record the map in camera memory. In imaging, each exposure frames, thoes position of dead pixels will be given a median value according to the active pixels around that abnormal pixel.

Overvoltage and overcurrent protection mechanism

Player One cameras produced by the number one player ensures the safety of your camera and other equipment through overvoltage and overcurrent protection mechanisms.


Data Port

When the camera is connected to the USB3.0 interface and full-resolution preview is used, it can reach 47 FPS in RAW8 mode (10bit ADC). When recording images, since the actual writing speed will be affected by the writing speed of the hard disk itself, when the hard disk writing speed is slow, the recording may not reach the theoretical speed. It is recommended that you use a high-quality solid state drive to record data to give full play to the performance of the camera.

Use the ST4 guide cable to connect the camera and the AUTO GUIDE port of the equatorial mount to do guiding.

Performance


Readout Noise

Regarding readout noise, we solemnly promise that all values are obtained from actual tests.  And for users, you could use Sharpcap 4 for testing. SC4 has a function called Sensor Analysis, provide a very simple way to test readout noise.

After many rigorous readout noise tests, the Xena 585M camera can reach a low readout noise of 0.7e at a gain of 500.

If you are interested in readout noise testing, you may try it yourself, which is very simple.


QE Curve

Xena 585M camera has about 91% QE peak.

Technical Specifications

Sensor

SONY IMX585 1/1.2" CMOS (mono)

Diagonal

12.85mm

Total Pixels

8.3 Mega Pixels

Max Resolution

3856×2180

Pixel Size

2.9μm

Chip Size

11.2mm×6.3mm

Frame Rate

47FPS(10bit)

Shutter

Rolling shutter

Exposure Range

32μs-2000s

Readout Noise

7.2e – 0.7e

QE Peak

≈91%

Full Well

47k e

ADC

12 bit

Data Port

USB3.0/USB2.0

Adapter

1.25″ / M28.5X0.6

Back Focal Length

7.5mm

Protective Window

D21*1.1MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating

Diameter

40mm

Weight

65g

Resolution and FPS

Under USB3.0 mode
Resolution Raw8 Raw16
3856×2180 46FPS 23FPS
3840×2160 47FPS 23.5FPS
2560 x 1440 105FPS 53FPS
1920×1080 187FPS 93.5FPS
1280×720 286FPS 188FPS
800×600 340FPS 223FPS
640×480 418FPS 275FPS
More resolution options could be setup in capture softewares!

Mechanical Drawing


In the Box

  • Camera
  • 2m USB3.0 cable
  • 2m ST4 Cable
  • 1.25'' Extender
  • 1.25'' Cover
  • Air Blower

Warranty & Manual

Player One 2-Year Warranty

Drivers and softwares download: http://player-one-astronomy.com/service/software/

Manuals download: http://player-one-astronomy.com/service/manuals/
