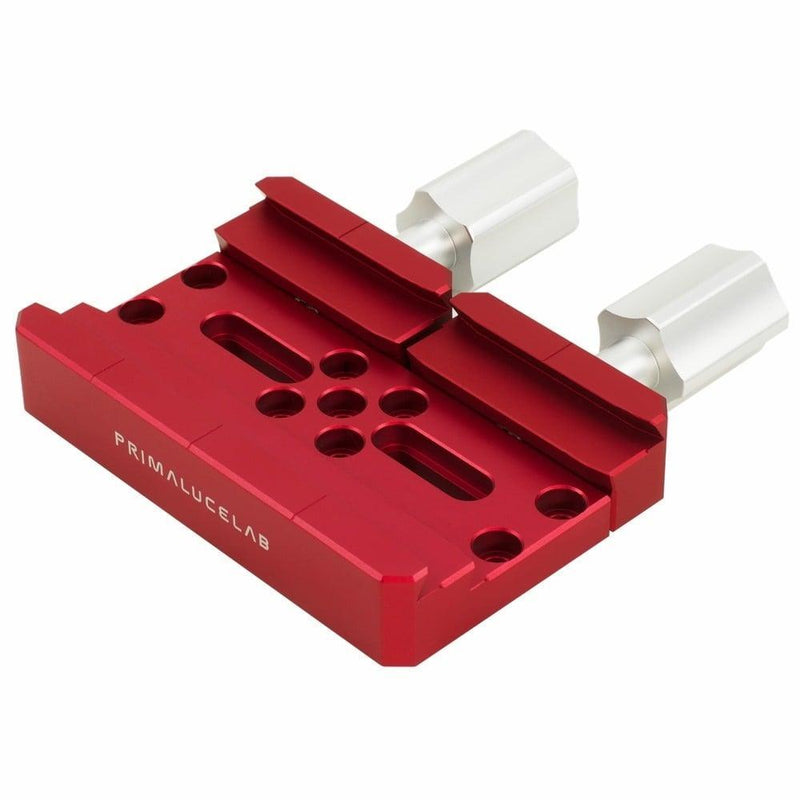

PrimaluceLab DV Series Big Dovetail Clamp PLUS
The PrimaluceLab DV Series Big Dovetail Clamp PLUS provides the connection to telescopes support plates and is useful to create support instruments like side-by-side plates (to support two telescopes in parallel on the same mount) or to allow the precise positioning of the guide rings (to adjust precisely the weight balance), or give the possibility to assemble the Losmandy dovetails to Skywatcher's HEQ5 and AZ-EQ5 mount. Our dovetail clamps, unlike the common ones, offer simultaneously the attack for Vixen and Losmandy plates.
In this way you will be free to install the plates you want and you do not need to change them if they will replace your telescope support plates! The Big Dovetail Clamp Vixen+Losmandy PLUS is part of our system PLUS (Prima Luce Universal System) which includes a large variety of support rings, plates, guide rings and dovetail clamps to offer you the maximum freedom to build your mechanical system of support, depending on the application that you want to achieve.
Indeed, all the PLUS elements have threaded holes, holes and slots suitable for connecting elements, always with maximum rigidity and comfort. The Big Dovetail Clamp Vixen+Losmandy PLUS is designed to support heavy loads.
For this application, we designed many elements, including the dovetail Clamp Vixen+Losmandy PLUS. Each component of the PLUS system is made of aluminum blocks that are high precision CNC machined. The aluminum is then sandblasted to achieve a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and protect it from oxidation.
Thanks to the particular design, the Dovetail Clamp Vixen+Losmandy PLUS can be:
- Installed (2 dovetail clamps) on any of our PLUS plates to achieve a side-by-side plate (which allows you to install two telescopes in parallel on the same mount). Thanks to the presence of all necessary threaded holes, you can create side-by-side plates either with Vixen or Losmandy connection plate for different mounts.
- installed over a Vixen or Losmandy plate positioned above the telescope support ring: if you install a Vixen or Losmandy PLUS plate above the support rings of your telescope, you can scroll through these dovetail clamps (with the guide rings screwed on) in perfect position to properly balance the weight of the guide telescope.
- Installed on Egle to connect it on Vixen and Losmandy style dovetails.
- With the right flange it allows to connect also Losmandy dovetail telescope on Skywatcher HEQ5 and AZ-EQ5 mount
If you have other brands mechanical accessories, you can still use all the elements of the PLUS system. Indeed we have provided a series of central slots that allow, for example, to fix on these dovetail clamps on plates or rings through a screw.
