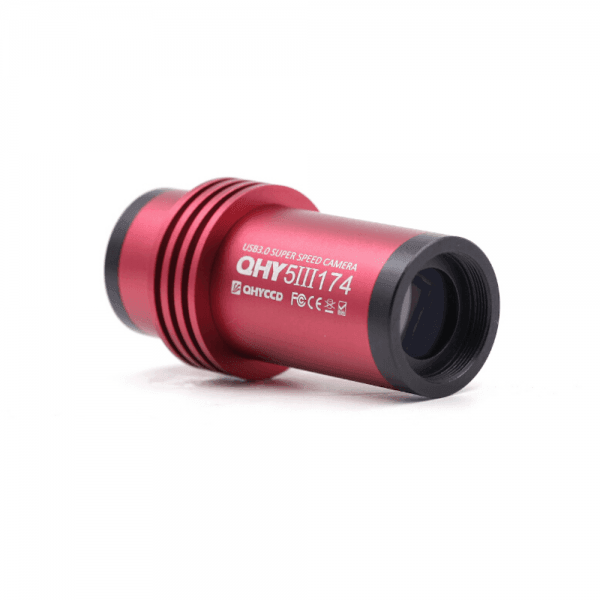

QHYCCD QHY5III174M Mono USB3.0
The QHYCCD QHY5III174M uses a 1/1.2-inch, 2.3 Megapixel, SONY Exmore IMX174 CMOS sensor with global shutter. The large sensor size is a great choice for solar imaging and the large pixel size and high QE (78%) makes it excellent for deep-sky imaging as well. Typical of all models in the QHY5III Series, this camera produces a high frame rates with the USB 3.0 interface, 138 frames per second at full resolution, up to 490 FPS at selected ROI. The cooled model with this sensor is the QHY174M/C
The QHY5III174 is the first in the new QHY5III series CMOS USB 3.0 cameras. The camera is designed to be an excellent planetary, lunar, solar and meteor capture video camera. With a 50mm, F/1.4 C-mount lens it will record 8th to 9th magnitude stars at 30 frames per second (33 ms exposure). This high sensitivity with HD resolution will push video astronomy to new heights.
Sony introduced a new global shutter (GS) CMOS imaging technology called PregiusTM that redefines the global shutter imaging category and provides the best of both worlds: fast frame rates and CCD-like imaging performance. The technology also offers reduced dark noise, which enables higher gains without compromising image quality, as well as higher quantum efficiency.
The global shutter eliminates pixelization when imaging the moon and planets and moon caused by atmospheric agitation and high frame rates.
The unique QHYCCD design retains the 1.25-inch eyepiece design of the QHY5-II series but adds features for better cooling. This design is more efficient in transfer of heat to the outer case enabling lower noise especially in high ambient temperatures. The 1.25 inch design also offers the shortest possible backfocus, making the camera ideal for off-axis guiding. In addition, the QHY5III174 uses a more robust LEMO style connector for the guide port. These connectors are known for being both rugged and reliable.
The QHY5III174 is available in both mono and color versions. The camera is well suited for solar imaging using short focal length telescopes that will capture a full solar disk within the FOV.
|Sensor Optical Format
|Frame Rate@Full Frame
|Frame rate @ROI readout
|Ful Well Capacity
||1.6e- to 5.3e-
||Electric Global Shutter
|Non-volatile memory / On camera storage
||Build-in total 512Kbytes Flash Memory. 100Kbytes user-accessible space for stellar ROI frames for analysis of exoplanet investigation, occultations, atmospheric seeing messurement, focus , optic analysis etc. Support 100*100 image x 10frames 50*50 image x40frames. 25*25 image x160frames 10*10 image * 1000 frames （total frame numbers is based on 8bit image）
||Standard 6-pin RJ11 Guide Port
||1.25-inch, CS mount
In the Box
1.5m USB3.0 Cable
1.5m 5-pin lemo to RJ11 guide cable
Manual & Warranty
QHYCCD 2-Years Warranty
