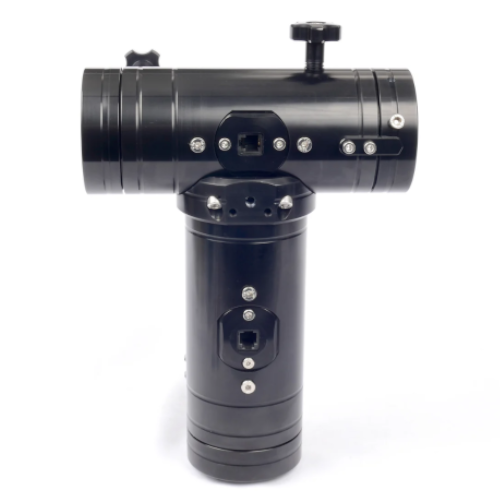

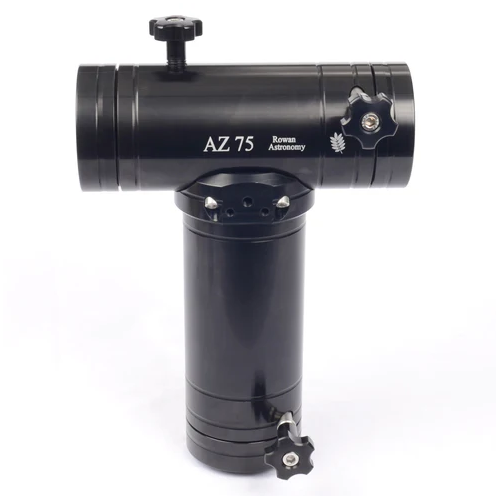

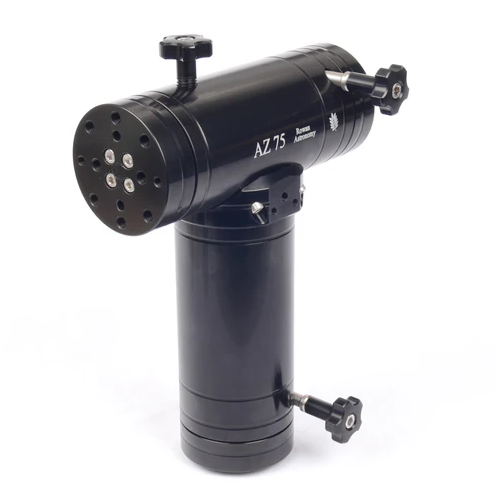

Rowan Astronomy AZ75 Alt-Azimuth Mount
The Rowan AZ75 is like a miniature version of the AZ100 but without slow-motion controls. One may think of it as a dual mount version of our venerable Stellarvue M002C mount both in its lighter capacity and function. It operates using friction clutches to control the drag in place of the slow-motion controls used on the AZ100 mounts.
CNC machined and black anodised finished and fitted with stainless steel hardware. Features include adjustable friction clutches on both axis for smooth push-to observing. 32mm diameter aluminium axis shafts supported in high quality ball and taper bearings. Load capacity is 15 kg each side depending on scope length. Top elevation axis lock for eyepiece changes.
Mount weight 4.1kg
Mount weight with 2 x V saddles 4.4kg

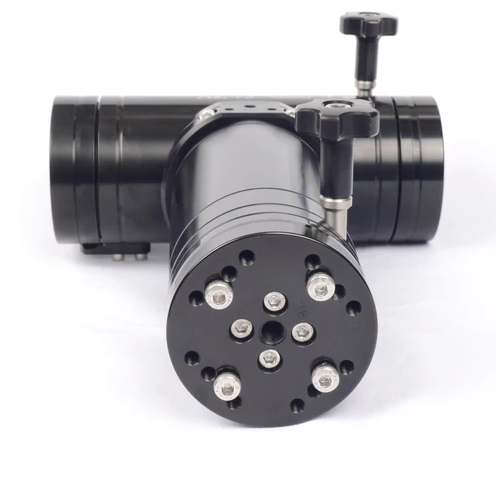

Mount base can be supplied with option for M12, M10 or 3/8" unc tapped hole to attach to tripods.
*AZ75 is compatible with AZ100 saddles*
- Available Features
- Internally mounted Renishaw 122,000 step encoders.
- Renishaw 122,000 step encoders.
- Nexus DSC Pro WiFi
Nexus DSC Pro is an advanced digital setting circles computer that packs all the latest technologies into a device designed for your telescope.
The Nexus DSC Pro boasts a powerful CPU and larger flash memory & RAM that allow you to spend more time doing what you really want: looking at the sky.
With the Pro’s upgraded CPU, memory, RAM, and sensors, you can store more objects in the database, search the database quicker, use encoder speeds of up to 100 million steps per second, and understand the environment around you better. The Pro will also have multi-lingual support, planned for the future.
You can use the Nexus DSC Pro with planetarium software (such as SkySafari Plus/Pro, Starry Night, Cartes du Ciel, and TheSky) on WiFi-enabled computing devices (iPhone, iPad, iPod Touch, Apple Computers, Android phones/tablets, Kindle Fire, and Windows based PCs/tablets).
- Rowan DSC100 digital setting circle controller
The DSC100 provides a wireless connection to a phone or tablet to display the built in planetarium or connection to Sky Safari
The DSC100 is supplied in a CNC machined aluminum enclosure, aluminum mounting bracket and 5-12vdc USB power converter cable.
*A separate 5Vdc USB power pack or 12Vdc power supply is required*
- Compact 'V' section saddle. 170mm long with 2 clamps.
- Pan-tilt handle.
- Counterweights and counterweight shaft.
Technical Specifications
| Mount weight |
4.1 kg |
| Mount weight with two v saddles |
4.4 kg |
| Mount Base option : |
M12, M10, 3/8” UNC |
| Load Capacity |
15kg on each side |
| Axis shaft diameter |
32mm |
In the Box
Combo 1
Combo 2
- AZ75 Alt-Az mount
- Renishaw encoders fitted
Combo 3
- AZ75 Alt-Az mount
- Renishaw encoders fitted
- Nexus DSC Pro Wifi
Combo 4
- AZ75 Alt-Az mount
- Renishaw encoders fitted
- Nexus II
Combo 5
- AZ75 Alt-Az mount
- Renishaw encoders fitted
- Rowan DSC100
Manual & Warranty
Rowan's 1 year warranty
