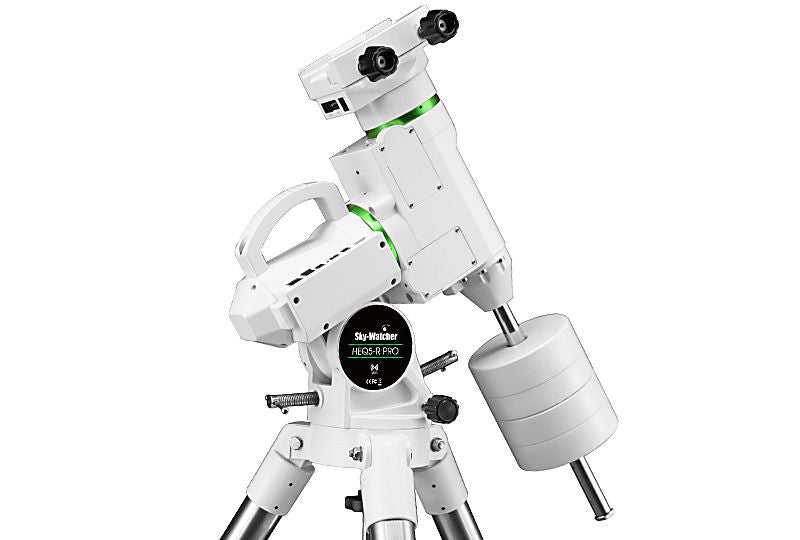

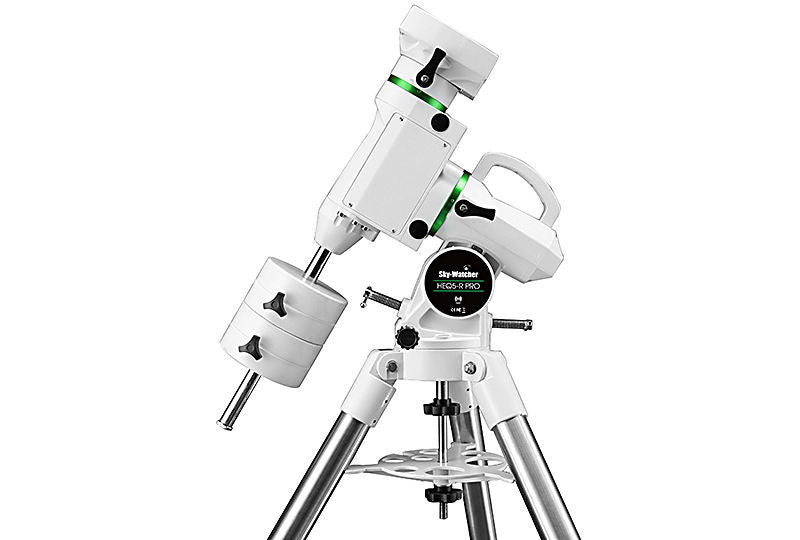

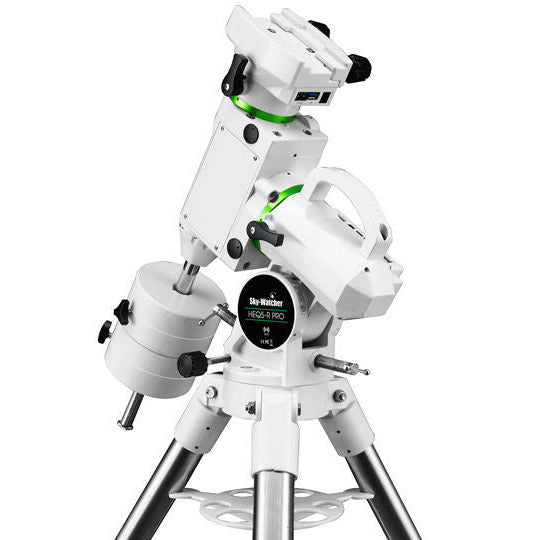

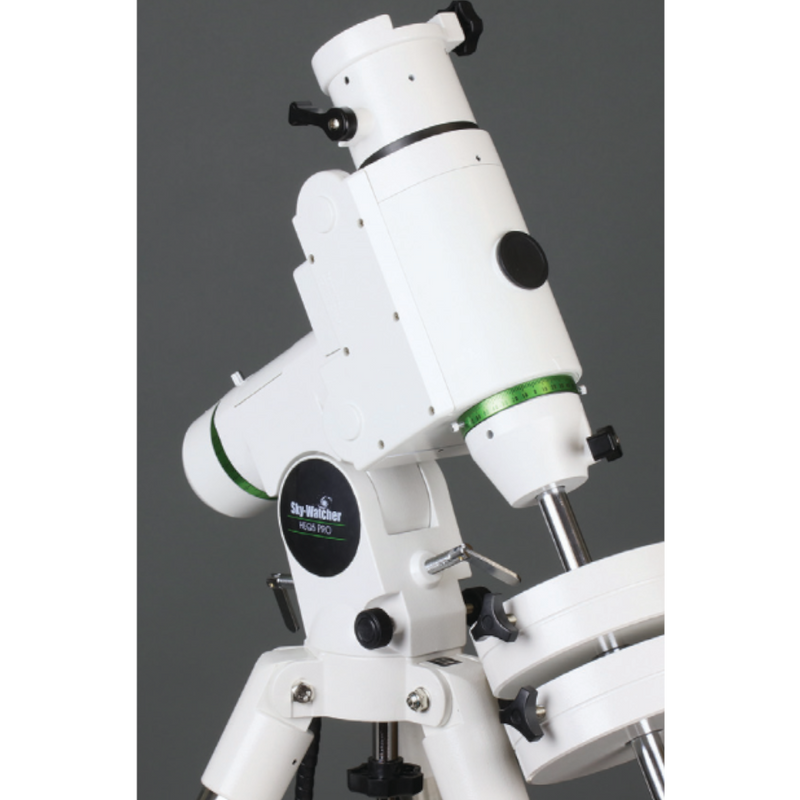

Sky-Watcher HEQ5-R Pro GoTo Mount
AC Adapter NOT INCLUDED, if you want one, here is the AC/DC power adapter
Features
- All metal gears on both axes.
- Stepper motors with 1.8° step angle and 64 micro steps driven.
- Slewing speed up to 3.4°/sec (800x).
- Latitude adjustment screws.
- Auto Guider Interface for astrophotography.
- Guiding speed selectable from 0.25x, 0.50x, 0.75x or 1x.
- Object database containing complete Messier, NGC and IC catalogs.
- Minimal vibration for steady long-exposure photography.
- PC compatibility.
- Upgradeable hand control via internet download.
Powerful, Compact, Precise
66-Pounds Fully Assembled
The HEQ5-R’s light weight – along with its 33-pound payload capacity – makes it the ideal travelling companion for any astronomer.
Perfect For All Applications
Precision tracking, no external motor cables, all-metal bearings and belt drive means the HEQ5-R is the perfect platform for the beginning to the advanced astronomer, visual or astrophotographic.
SynScan Computerized Hand Controller
With an internal database of over 42,000 astronomical objects, the SynScan controller provides hours of effortless navigation of the universe.

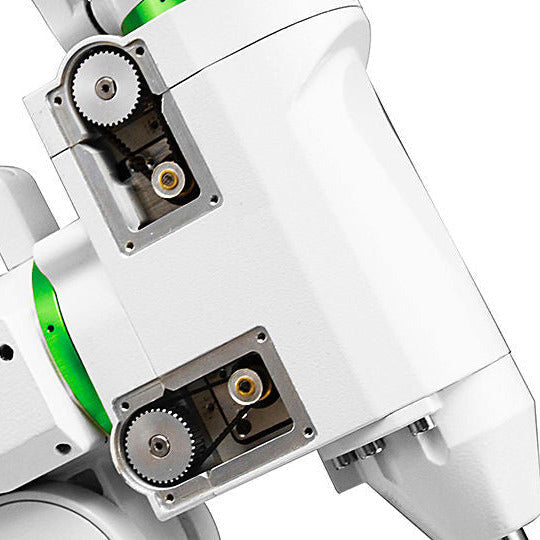

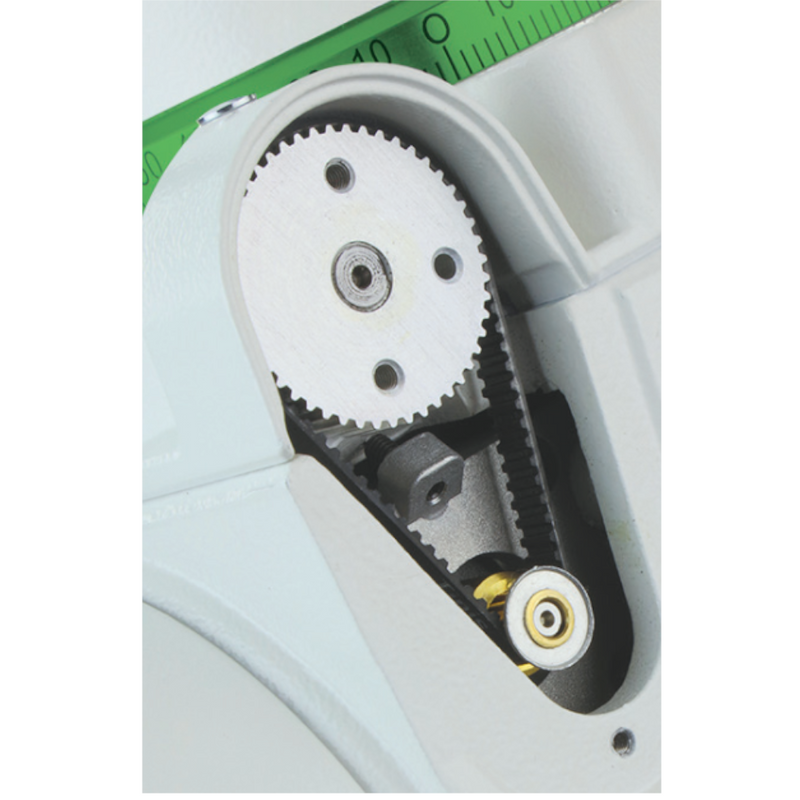

Dual-axis belt drives deliver whisper-quiet, extremely accurate movement for both axes.
All internal motor cables prevent snagging and make remot observing more reliable.

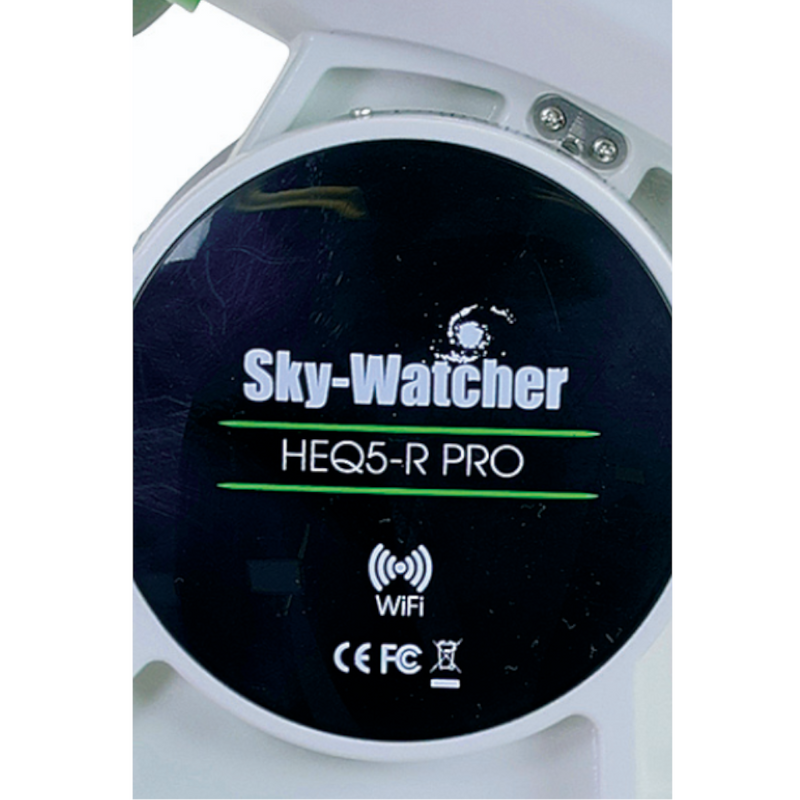

Wi-Fi provides untethered control of mount functions and access to all of the SynScan Pro app features.
Sky-Watcher SynScan mounts have been designed for use by novices and experts alike. These mounts provide extremely high precision tracking and have built-in autoguider ports. Even the most demanding experts will be impressed by the capability of these mounts for astrophotography
For novices the user-friendly menu allows automatic slewing to 42,900+ objects. Even an inexperienced astronomer can master its variety of features in a few observing sessions. The SynScan hand controller also has the ability to connect to a computer via a USB cable. Once the connection has been established between the computer and SynScan hand control, many commercially available planetarium software programs can be used to control the HEQ5-R Pro mounts
Technical Specifications
| Model |
HEQ5-R Pro |
| SKU |
S30450 |
| UPC |
810098970907 |
| Base type |
Motorized equatorial |
| Tripod |
Adjustable height, steel tripod legs, accessory tray |
| Power Requirements |
9–12.6V DC |
| Motor Drive |
DC servo, stepper motors |
| Slew Speeds |
1000x, 800x, 600x, 400x, 200x, 32x, 16x, 8x, 2x, 1x |
| Tracking Rates |
Sidereal, Lunar, Solar |
| Tracking Modes |
Dual Axis Tracking |
| Alignment Procedures |
One-, two- and three-star alignment |
| Computer Hand Control |
SynScan hand controller, flash upgradeable |
| Database |
Complete Messier, NGC, IC and SAO catalogs, 25 user defined objects, total 42,900 objects |
| Dovetail Saddle |
D/V-style |
| Mount weight (pounds) |
66 (fully loaded with two 11-pound counterweights) |
| Payload capacity (pounds) |
33.0 |
In the Box
- Sky-Watcher HEQ5 Mount
- Adjustable 1.75" Rolled Steel Tripod
- SynScan GoTo w/ 42,900+ object database
- Metal Tray Accessory
- Dual-Style Dovetail Saddle
- SynScan V5 Hand Controller
- 12V DC Power Cord with Cigarette Lighter Adapter
- Two 11 lb. Counterweights
- AC Adapter NOT INCLUDED, if you want one, here is the AC/DC power adapter
Warranty & Manuals
Sky-Watcher 2-Year Warranty
