Takahashi  |  SKU: TAK-TKA37580

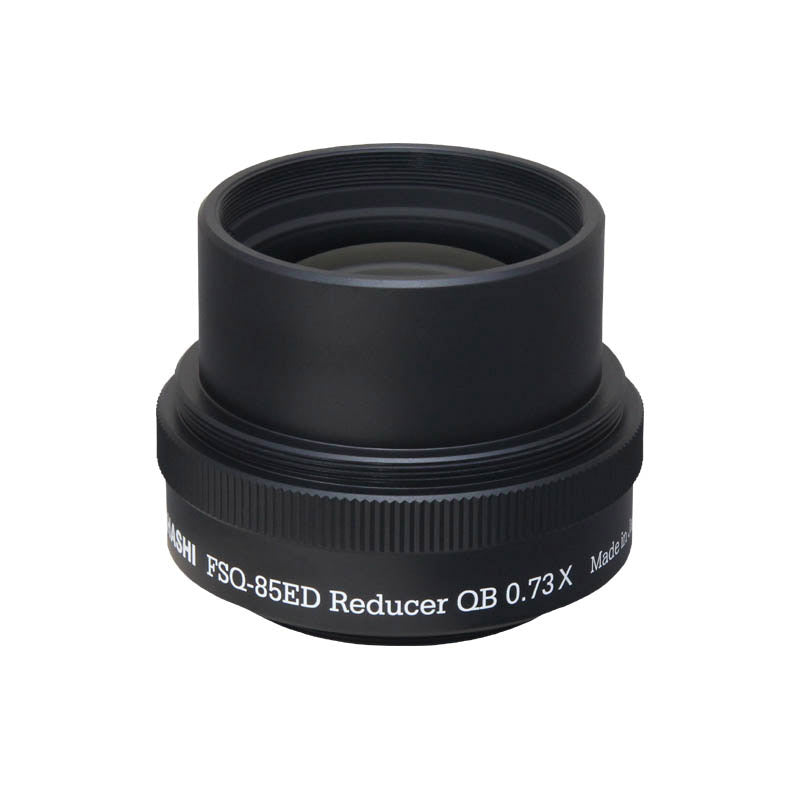

Takahashi QB0.73X Focal Reducer for FSQ-85EDX (TKA37580)

Regular price $95200
Shipping calculated at checkout.

Takahashi QB0.73X Focal Reducer for FSQ-85EDX (TKA37580) is backordered and will ship as soon as it is back in stock.

Pickup available at ASTRONOMY PLUS

Usually ready in 2 hours

FREE SHIPPING FOR ORDERS OVER $500* 🆓🚚

*Some exceptions may apply. More info

We Have it in Stock? We're on it, shipping your order on the same day.

*Ordered before 2PM ET & Business Hours only / This is an estimation and may vary

What if the product is not in stock?

🛫 If the item is unavailable: It may be in transit to us or on order with the supplier. If not, we will promptly place the order. In case of delays, we will do our best to keep you informed. Don't hesitate to email us for delays.

🇨🇦 Canadian Authorized Dealer

Buy with confidence from a trusted Canadian astronomy retailer. We provide full pre-sale and after-sale support, expert advice, warranty assistance, and real technical help from passionate astronomers.

Takahashi QB0.73X Focal Reducer for FSQ-85EDX

 The focal reducer for full-frame imaging with Takahashi FSQ-85EDX refractor.

 The classic Petzval design of the Takahashi FSQ was sufficient to offer high-end optical performance with APS-C format cameras. Central aberration was corrected and peripheral field curvature contained. But with the advent of small-pixel, full-format sensors, the existing QE0.73x reducer was showing its limitations. Takahashi therefore decided to modernize the specific reducer of its FSQ-85EDX astrograph to adapt it to the constraints of the digital sensors currently on the market, thus restoring its full astrophotographic potential.

The revision of the 0.73x reducer on the Takahashi FSQ-85EDX is the logical follow-up to the introduction of the 1.01x field corrector, whose aim was to enable the astrograph to cover full format perfectly. With the QB0.73x reducer, field curvature is improved and focal length is reduced by almost a quarter, to 330 mm (F/3.9).

The reducer uses a new, highly refractive and low dispersion ED glass. It is composed of 4 lenses in 2 groups. Chromatism is further reduced, and the size of the RMS spot at the edge of the field is halved, reducing the size of the stars by a third. At the center, the spot radius is 1.6 microns RMS, 1.9 microns at the APS-C format periphery and 3.9 microns at the APN format limit. With these performances, the FSQ-85EDX confirms its reputation for excellence in astrophotography, even when combined with today's full-frame digital sensors.

The QB0.73x reducer screws directly onto the CAA (Camera Angle Adjuster).

The mechanical backfocus of the corrector is 72.2 mm and the output thread is M56x0.75 male. To recover the 56.2 mm required for mounting a wide-field T-ring and camera, it is imperative to use the CA-35 photo adapter (SKY-90, #TATKA35201) at the reducer output.

A ZWO camera is mounted in the same way, using the CA-35 (SKY-90). To recover the input threads of ZWO accessory trains (M48 or M42 threads), you'll need to use the OU073 conversion ring specially designed by Optique Unterlinden.

Spot-diagrams

Takahashi RDQB0.73x focal reducer

Takahashi RDQE0.73x focale reducer

 Above, a FSQ-85EDX equipped with a QB0.73x reducer. Below, a FSQ-85EDX equipped with a old QE0.73x reducer.

Technical Specifications

Characteristic Takahashi QB0.73X focal reducer
Item number TKA37580
Optical design 4 lenses (2 groups)
Corrected image circle 44 mm
Input mechanical interface M72x1 thread, male
Output mechanical interface M56x0.75 thread, male
Metal back distance 72.2 mm
Size 78 mm x 63 mm
Weight 520 g



In the Box

  • QB0.73X Focal Reducer for FSQ-85EDX (TKA37580)

Manual & Warranty

Takahashi 5-Years Warranty

FSQ85EDX System Chart
