Tele Vue TV-76 White
76mm, f/6.3, APO (Doublet) Refractor.
From astronomical, to spotting, to birding, the Tele Vue-76 combines compact size with the APO optical performance of the Tele Vue-85.
5.5° / 200x (Max. Visual Field / Max. Rec. Power)
The expansive 5.5° rich-field of the Tele Vue TV-76 drizzles your view with delicate jewel-like stars, while the APO performance of the Nagler designed, fully multi-coated 2-element objective and optional 2″ Everbrite diagonal produce natural stellar and planetary color rendition even at the highest useful powers.
Small size and lighter weight permit use of lighter-duty tripods for easy field carrying and transportation. The padded shoulder bag provides protection and room for the scope and six eyepieces.
If your interests crossover from astronomical to spotting or birding, and you demand the ultimate in portable performance the Tele Vue-76 is always waiting to deliver.
Technical Specifications
TV-76 Specifications
Type: APO (Doublet) Refractor
(Elements/Groups: 2/1)
Objective (mm): 76
Focal Length (mm): 480
Focal Ratio (f/#): 6.3
Length OTA (inch): 14.5
Length with diagonal (inch): 17.4 (with 2-inch diagonal)
Weight OTA/Std. Config (lbs): 5 / 5
Drawtube/Focuser: 2-inch, Focusmate dual-speed rack/pinion
Maximum Visual Field (deg.): 5.5 (with 2-inch 55mm Plössl)
Maximum Recommended Power (x): 200
Tele Vue Eyepiece Performance: View Eyepiece Chart

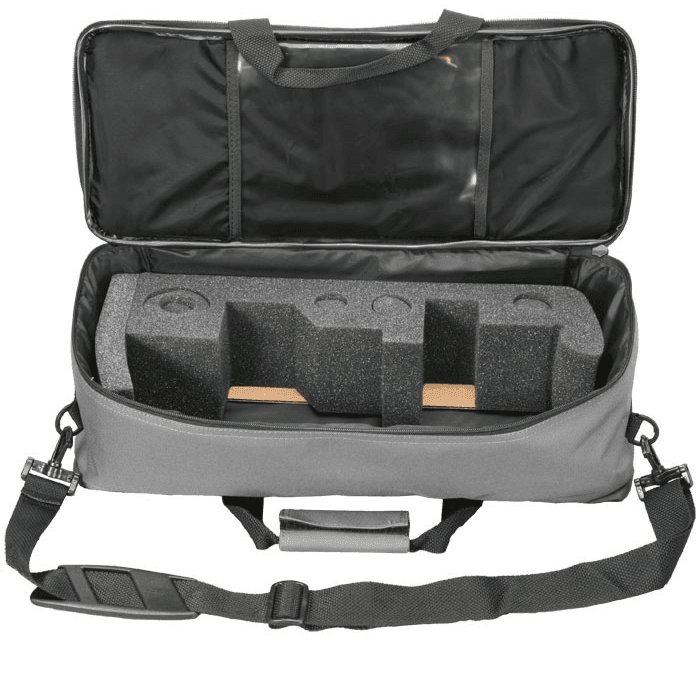

Soft Case Specifications
Custom fitted case fits TV-76.
Dual hand-carry straps with padded palm closure.
Adjustable shoulder strap with pad.
Dual zippers on lid.
Ring Mount, Digital Indicator, and Starbeam friendly.
Foam cutouts for Starbeam, 1 x 1¼” or 2″ eyepiece, and 3 x 1¼” eyepiece.
Approximate maximum exterior dimensions (excluding handles and strap): 20 x 9 x 6-inches (51 x 23 x 15-cm).
Approximate empty weight: 1.75-lb (0.8-kg).
In the Box

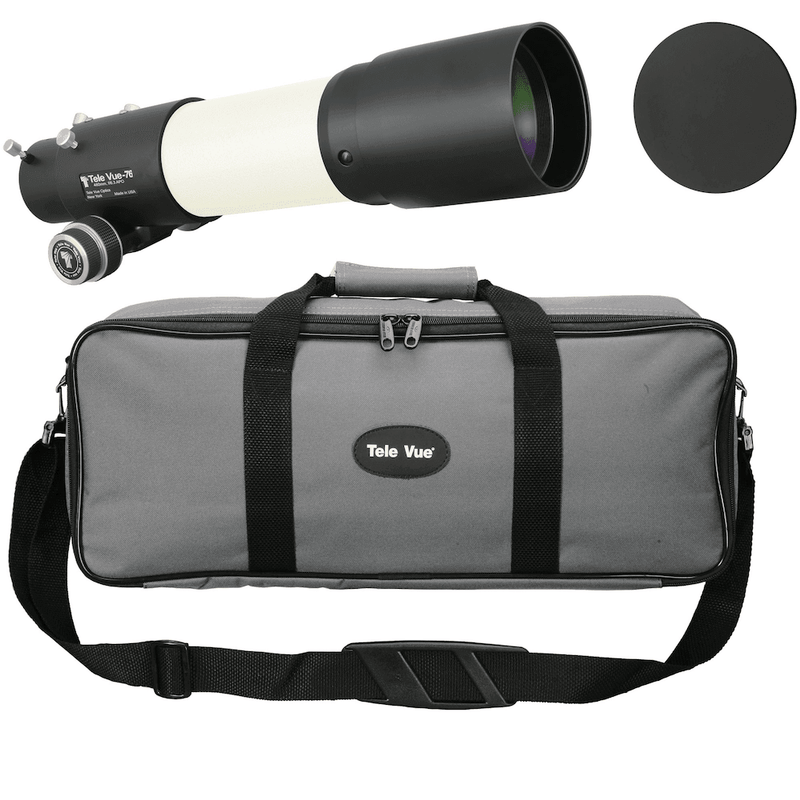

TV-76
Sliding metal dew shield
Screw-on metal lens cover
Focusmate dual-speed focuser 10:1
Soft carry case
Manuals & Warranty
Tele Vue 5-Years Warranty
Tele Vue TV-76 Operating Guide
