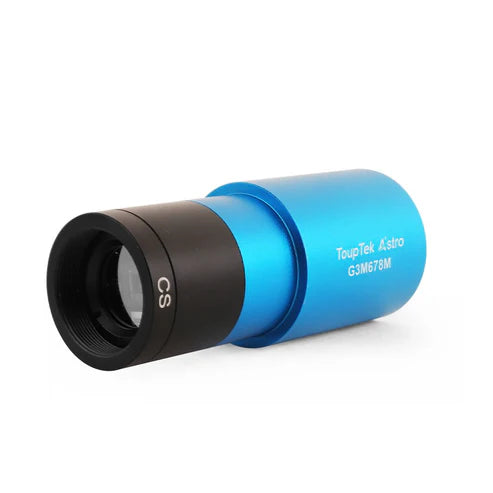

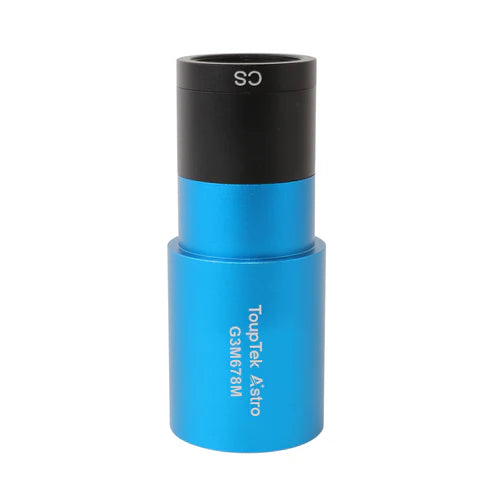

Touptek G3M678M Planetary Mono Camera USB3.0 (IMX678)

The ultimate monochrome planetary imaging tool featuring Sony IMX678 STARVIS 2 sensor with 8.3MP resolution and ultra-high-speed 1500+ fps capture capability

8.3MP
Monochrome Resolution
Maximum detail capture

1500+
FPS in ROI Mode
8-bit at 3840×40 resolution

2.0μm
Pixel Size
Optimal sensitivity balance

1/1.8"
Sensor Size
Large format imaging

Monochrome Sensor Advantage

The monochrome sensor eliminates the Bayer filter array, delivering superior light sensitivity, sharper detail resolution, and enhanced performance with narrowband filters for advanced astronomical imaging.

High-Efficiency Near-Infrared Imaging

The G3M678M's monochrome sensor exhibits exceptional sensitivity in the near-infrared (NIR) band, significantly enhancing the texture and detail rendition of planets. Without the color filter array limitations, the monochrome sensor captures maximum photons across all wavelengths.

Planetary Imaging Excellence

When paired with an 850nm IR-pass filter or 890nm methane filter, the G3M678M enables targeted imaging of Jupiter and Saturn, revealing atmospheric details invisible in visible light with maximum clarity.

Superior Atmospheric Penetration

NIR imaging offers higher stability and greater resistance to atmospheric seeing disturbances, ideal for capturing the Sun, lunar surface, and other celestial bodies with unprecedented detail.

STARVIS 2 Technology

The G3M678M incorporates Sony's STARVIS 2 image sensor technology in monochrome configuration, delivering a broader photosensitivity range and superior dynamic performance. STARVIS 2 enhances infrared-band imaging capabilities in low-light environments, featuring significantly reduced dark current and lower readout noise. It maintains high SNR (Signal-to-Noise Ratio) and exceptional clarity even when capturing high-contrast subjects.

DDR3 High-Speed Buffer

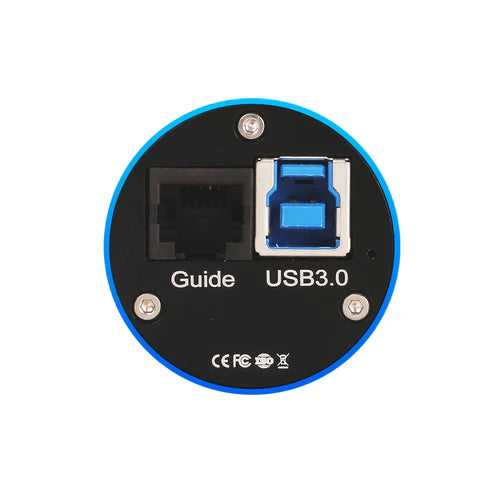

Equipped with a USB 3.0 high-speed interface and 512MB DDR3 high-speed buffer, this camera significantly reduces amp-glow caused by image data buffering. The advanced buffer system ensures stable and smooth data transmission for uninterrupted imaging sessions.

Zero Amp-Glow Technology

The G3M678M achieves "zero amp-glow" at the hardware level. Whether under long exposure or high gain settings, your resulting images remain pristine and clean, free from unwanted thermal artifacts.

Flexible & High-Efficiency ROI High Frame Rate Imaging

The G3M678M features a USB 3.0 high-speed interface with upgraded drivers that deliver exceptional frame rate performance in ROI mode, meeting precision requirements for diverse observation scenarios.

1500+ FPS
8-bit depth (3840×40 resolution)
Ultra-high-speed capture mode

740 FPS
16-bit depth (3840×40 resolution)
High dynamic range mode

*Note: At ultra-high frame rates (≥1500fps), dropped frame probability may vary depending on the user's video capture hardware. When using performance-limited capture devices, 740fps in 16-bit mode is recommended.

Technical Specifications

Multi-Mode Flexible Switching

The G3M678M supports switching between HCG (High Conversion Gain) and LCG (Low Conversion Gain) modes, allowing you to optimize performance based on your specific imaging requirements.

HCG Mode Performance

Camera settings: Full resolution, RAW 12-bit mode

LCG Mode Performance

Camera settings: Full resolution, RAW 12-bit mode



In the Box



Warranty

Touptek 2-Year Warranty
