Touptek  |  SKU: TOU-G3M715C

Touptek G3M715C Planetary Color Camera USB3.0 (IMX715)

Regular price $23700
Shipping calculated at checkout.

Touptek G3M715C Planetary Color Camera USB3.0 (IMX715) is backordered and will ship as soon as it is back in stock.

Pickup available at ASTRONOMY PLUS

Usually ready in 2 hours

FREE SHIPPING FOR ORDERS OVER $500* 🆓🚚

*Some exceptions may apply. More info

We Have it in Stock? We're on it, shipping your order on the same day.

*Ordered before 2PM ET & Business Hours only / This is an estimation and may vary

What if the product is not in stock?

🛫 If the item is unavailable: It may be in transit to us or on order with the supplier. If not, we will promptly place the order. In case of delays, we will do our best to keep you informed. Don't hesitate to email us for delays.

🇨🇦 Canadian Authorized Dealer

Buy with confidence from a trusted Canadian astronomy retailer. We provide full pre-sale and after-sale support, expert advice, warranty assistance, and real technical help from passionate astronomers.

Touptek G3M715C Planetary Color Camera USB3.0 (IMX715)

4K resolution planetary camera with Sony IMX715 sensor featuring ultra-small 1.45μm pixels for exceptional detail capture without additional magnification

4K
Resolution
3840×2160 pixels

1.45μm
Ultra-Small Pixels
No Barlow lens needed

0.57e⁻
Minimum Read Noise
Exceptional SNR

850nm
High NIR QE
Superior infrared sensitivity

Ultra-Small Pixels for Maximum Detail

The G3M715C's 1.45μm pixel size represents a breakthrough in planetary imaging technology. This ultra-small pixel design allows direct capture of intricate celestial details through high-resolution characteristics without requiring costly additional magnifying lenses. By eliminating the need for Barlow lenses, you avoid optical losses while achieving superior image quality and maintaining a simplified, efficient imaging setup.

High-Efficiency Near-Infrared Imaging

The G3M715C demonstrates exceptional sensitivity in the near-infrared band, with extremely high quantum efficiency at 850nm. This capability significantly enhances imaging efficiency for specialized astronomical applications.

Planetary Atmosphere Studies

When paired with 850nm IR-pass or 890nm methane filters, the G3M715C enables targeted imaging of Jupiter and Saturn, revealing atmospheric structures invisible to the human eye.

Enhanced Atmospheric Stability

NIR imaging provides superior stability and resistance to atmospheric turbulence, ideal for capturing the Sun, lunar surface, and planetary details in challenging conditions.

DDR3 High-Speed Buffer

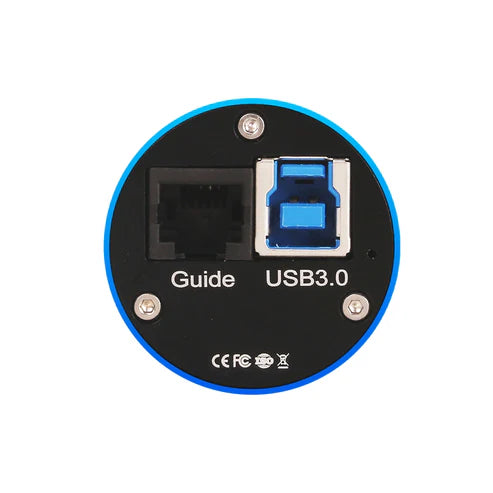

Equipped with a USB 3.0 high-speed interface and 512MB DDR3 high-speed buffer, this camera significantly reduces amp-glow caused by image data buffering. The advanced buffer system ensures stable and smooth data transmission for uninterrupted imaging sessions.

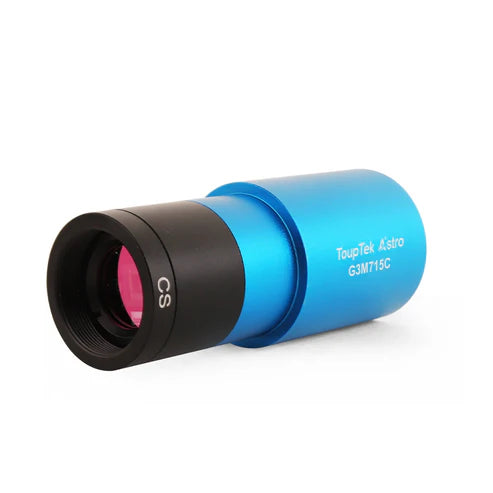

High-Compatibility Front-End Design

Standard Version (C-mount)

Classic C-mount design for maximum compatibility with standard accessories and telescopes.

Extended Version (CS-mount)

Longer front barrel with shorter flange focal distance, ensuring compatibility with OAGs from more brands.

Both versions accommodate 1.25-inch filters when connected to a 1.25-inch extender.

Versatile High-FPS Imaging via ROI

The G3M715C supports hardware-based ROI (Region of Interest) functionality, enabling users to define custom imaging areas for specific targets. Smaller ROI areas yield significantly higher frame rates, delivering the precision and flexibility required for diverse observation scenarios ranging from full-disk solar imaging to high-magnification planetary detail capture.

Ultra-Low Readout Noise

Readout noise is a critical benchmark for measuring camera performance. Lower readout noise translates directly to superior SNR (Signal-to-Noise Ratio) and enhanced image quality. The G3M715C achieves remarkably low readout noise, reaching a minimum of just 0.57e⁻ as gain increases, ensuring exceptional performance even in challenging imaging conditions.

Technical Specifications



In the Box



Warranty

Touptek 2-Year Warranty
