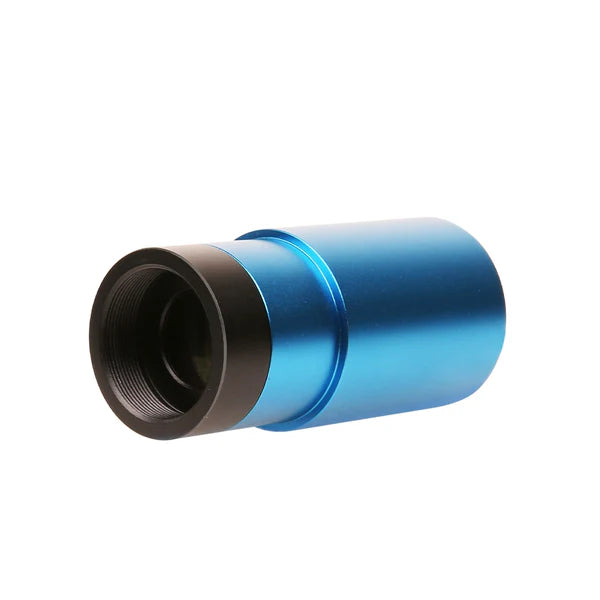

Touptek IMX225C Color Guiding Camera









Technical Specifications
-
Sensor Model: Sony IMX225 (color)
-
Sensor Type: CMOS
-
Sensor Format: 1/3″ (approx. 4.8 × 3.6 mm)
-
Resolution: 1280 × 960 (1.2 MP)
-
Pixel Size: 3.75 µm × 3.75 µm
-
ADC: 12-bit (color)
-
Frame Rate: Up to ~30 fps at 1280 × 960
-
Binning: 1×1, 2×2 support
-
Exposure Range: ~0.4 ms – 800 s
-
Spectral Response:
-
With IR-cut filter: ~380 – 690 nm
-
With anti-reflective window: ~350 – 1050 nm
-
-
Read Noise: ~0.84 e- (varies with pixel and conditions)
-
Dynamic Range & Sensitivity: Typical performance consistent with IMX225 class sensors
-
Data Interface: USB 2.0 (camera is USB-powered, 5 V)
-
Autoguiding Output: ST-4 compatible port for direct mount guiding control
-
Driver/SDK Support: Compatible with Windows, macOS, Linux, and platform SDKs (C/C++, Python, Java, etc.)
-
Mount/Connection:
-
1.25″ telescope nosepiece (outer)
-
Standard C-mount thread (inner) for adapters
-
-
Housing: CNC-machined aluminum body
-
Protective Window/Filter: IR-cut or anti-reflective protective optical window (depending on variant)
