Walter Digital Infinity Microscope (1008D5)
Walter Digital Infinity Microscope (1008D5) is backordered and will ship as soon as it is back in stock.
Pickup available at ASTRONOMY PLUS
Usually ready in 2 hours
FREE SHIPPING FOR ORDERS OVER $500* 🆓🚚
FREE SHIPPING FOR ORDERS OVER $500* 🆓🚚
*Some exceptions may apply. More info
We Have it in Stock? We're on it, shipping your order on the same day.
We Have it in Stock? We're on it, shipping your order on the same day.
*Ordered before 2PM ET & Business Hours only / This is an estimation and may vary
What if the product is not in stock?
What if the product is not in stock?
🛫 If the item is unavailable: It may be in transit to us or on order with the supplier. If not, we will promptly place the order. In case of delays, we will do our best to keep you informed. Don't hesitate to email us for delays.
🇨🇦 Canadian Authorized Dealer
🇨🇦 Canadian Authorized Dealer
Buy with confidence from a trusted Canadian astronomy retailer. We provide full pre-sale and after-sale support, expert advice, warranty assistance, and real technical help from passionate astronomers.
Walter Digital Infinity Microscope (1008D5) is backordered and will ship as soon as it is back in stock.

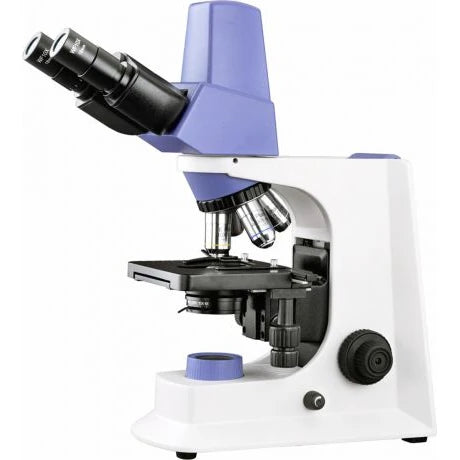

Walter Digital Infinity Microscope
- Siedentopf binocular head, 30º inclined, rotates 360º
- Quadruple reverse nosepiece gives easy access to the workspace & slide
- Infinity optical system with semi-plan infinity DIN objectives
- Built in mechanical stage and large 145 x 140mm rectangular stage with Vernier scales that allows smooth cross travel motion of 76 x 52mm
- 3W LED light system with light intensity control provides cool, bright, and even illumination
- Rectangular shape and cast aluminum stand provides a strong and stable operating base
- Built-in 5MP digital camera with easy-to-use software
The 1008D5 microscope delivers quality results. Microscope features infinity corrected optics that enhance image quality and allows objectives to remain parfocaled when optical components are added or removed. The rectangular shape and cast aluminum stand are vibration proof and provides a strong and stable operating base. The frame and handle makes this microscope easy to carry and moved around any work space.The 5MP digital WiFi camera offers plug-and-play capabilities with our free and easy-to-use software when using USB2.0 connection. Comes complete with a dust cover and instruction manual. 5-year limited warranty on microscope, 1-year warranty on camera.
| ITEM NO. | RESOLUTION | HEAD | INFINITY SEMI-PLAN DIN OBJECTIVES |
ILLUMINATION |
| 1008D5 | 5MP | Binocular | 4X, 10X, 40XR, 100XR | 3W LED |
Technical Specifications
Microscope Specifications:
| Body | Cast aluminum with enamel finish, rectangular shape |
| Head |
Sidentopf binocular, 30° inclined, rotates 360°; Interpupillary adjustment: 50mm - 75mm |
| Eyepiece | 10X wide-field eyepieces |
| Nosepiece | Four position reversed nosepiece |
| Objectives | 4X, 10X, 40XR, 100XR Infinity corrected, semi-plan DIN objectives |
| Stage | 145mm X 140mm Built-in double layer mechanical stage, Vernier scales, smooth X/Y calibrated movement with cross travel range of 76mm X 52mm |
| Condenser | 1.25 N.A. Abbe condenser with diaphragm position guide markings for their respective objectives |
| Focusing System |
Low position coaxial coarse and fine focusing knobs, 26mm coarse movement stroke, fine focus graduation of 2µm |
| Illumination | 3W LED illumination, light intensity control |
| Power | 3-wire ground power cord |
| Accessories | Vinyl dust cover and user manual |
| Warranty | Limited 5 year |
Camera Specifications:
| Image Sensor | CMOS |
| Resolution | 5 mega pixels |
| Max Resolution | 2952 x 1944 |
| Frame Speed | 6-30 frames per second |
| Data Output | USB2.0 port, 480mps |
| Power | USB cable connected to computer |
| Compatibility | Windows 2000/XP/Vista/7/8/10 operating systems |
| Software | OPT Pro |
| Accessories | USB cable, CD with software |
| Warranty | 1 year |
In the Box
- Walter Digital Infinity Microscope
- Vinyl dust cover
- User manual
- Camera
- USB Cable
- CD with software
Manual & Warranty
Walter Products 5 years warranty
