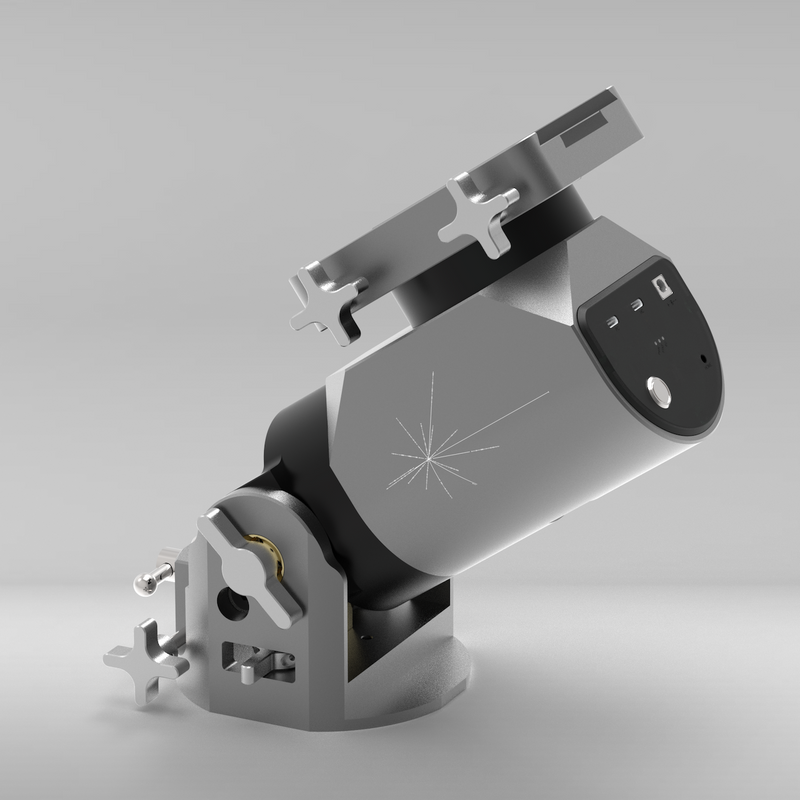

True axis feedback. Power delivered at the saddle.
Servo Direct Drive and high-resolution absolute feedback at the final RA axis provide precise, responsive motion control. Dual USB-C power ports place flexible power delivery close to the camera and accessories, creating a cleaner and more convenient imaging setup.
Servo Direct Drive. True Axis Feedback. Individually Verified.
WD-20EP adds two intelligent USB-C power outputs directly at the saddle, bringing power closer to the telescope, camera and compatible accessories.
This reduces the need to route multiple long power cables around the moving axes, helping create a cleaner installation with fewer loose cables to manage during tracking and slewing.
![]()
Technical Specifications
| Specification |
Details |
| Mount Type |
Equatorial / Altazimuth |
| Reduction Gear |
RA: 20 Strain Wave Reducer; DEC: 17 Strain Wave Reducer |
| Drive |
RA: Dual Encoder Servo Direct-Drive; DEC: Servo Direct-Drive |
| Motor |
BLDC Servo Motor |
| Weight |
5.7 kg (12.5 lb) |
| Load Capacity*1 |
50 Nm (Recommended) / 60 Nm (Max Allowed); 22 kg / 44 lb (without counterweights); 30 kg / 66 lb (with counterweights) |
| Material |
AL6061, Stainless Steel, Brass, ABS |
| Brake |
RA Axis (45 Nm) |
| Saddle |
Vixen & Losmandy |
| Saddle Port A |
PD3.1: 5/9/12/15 V @ 3 A; 20 V @ 5 A / PPS: 0–20 V @ 6 A |
| Saddle Port B |
PD3.1: 5/9/12/15/20 V @ 3 A; PPS: 0–20 V @ 3 A; Mount PC Connection |
| Counterweight Shaft |
M12 Shaft (1.75 mm Pitch) |
| Slew Rate |
5°/s (Standard, 1/2 Max); 10°/s (Max) |
| Adjustment Range |
ALT: 0–90° (3-position coarse adjustment, 30° fine adjustment); AZ: ±8° |
| Operating Temperature |
−25°C to 45°C |
| Periodic Error |
±3 arcsec (Encoder Corrected) |
| Communication Protocol |
ASCOM / INDI / LX200 / INDIGO |
| Home Control |
RA: Absolute Encoder; DEC: Optical Homing Sensor |
| Time / Location |
GPS on Advanced Hand Controller |
| Power |
12–25 V, 10 A; 5.5 × 2.5 mm DC |
| Wireless*2 |
Wi-Fi (AP/Station Modes) / BLE on Advanced Hand Controller |
| Advanced Hand Controller |
2-inch OLED Touch Display, Hall Joystick, GPS, Wireless, BLE |
*1. Recommended: For normal operation and optimal tracking performance. Maximum: Upper operational limit; the safe upper operating load the mount can support and slew
*2. Wireless functionality may vary by country and region.
In the Box
- WD-20EP Mount Head * 1
- Advanced Hand Controller(2026 version, Color OLED Touch Display) * 1
- USB Type-C to A Data Cable (PC connection) * 1
- USB Type-C to C 1m Cable * 1 (Hand controller connection)
- PD Type-C to DC 5.5*2.5mm 12V 3A 1.5m cable * 1
- PD Type-C to DC 5.5*2.5mm 12V 5A 1m cable * 1
- 200W 24V AC Adapter
- Tracking Accuracy Report
- Aluminum Case with EVA Foam
- 3mm Hex wrench
Manuals & Warranty
Warpastron 3-Year Warranty
WD-20EP Drawing
