WarpAstron WD-15E Servo Direct Harmonic Mount - Dual Encoder

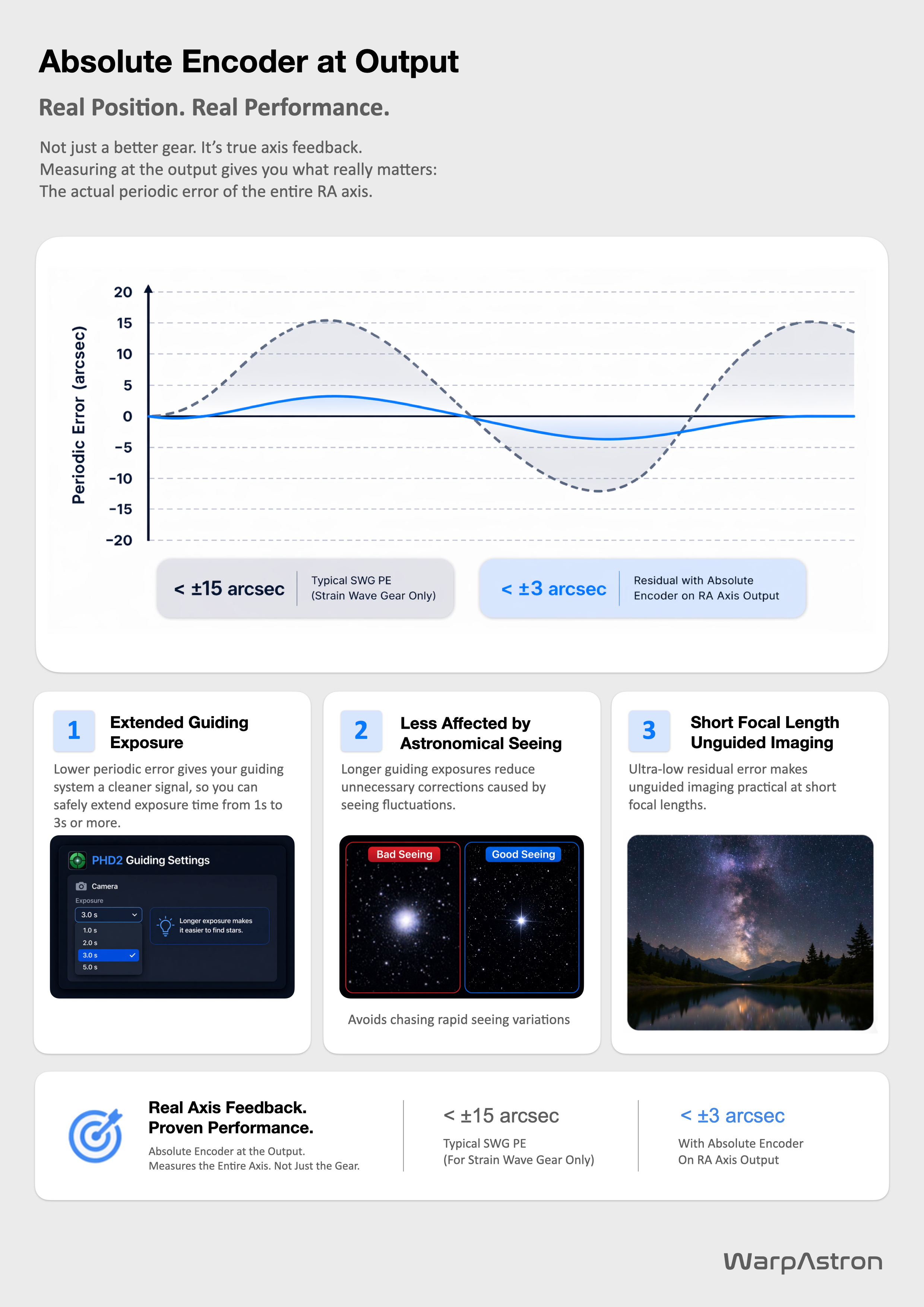

The all-new WD-15E builds on WarpAstron’s trusted Servo Direct Drive architecture and goes further with the addition of a newly integrated RA output absolute encoder.

By combining fast input-side correction with true output-axis feedback, WD-15E reduces total periodic error while preserving the high response and efficiency inherent to servo direct drive. Each unit is individually calibrated using WarpAstron’s proprietary process to ensure consistent, verifiable low PE performance.

With an absolute encoder placed directly on the RA output within a belt-less servo direct drive system, WD-15E represents a more efficient next-generation solution for achieving ultra-low periodic error.

Flexible power. Play it your way.

Dual saddle ports — power on the left, data on the right. USB-PD up to 100W (12V 5A) for mini PCs and more.

Technical Specifications

Mount Type: Equatorial/Altazimuth
Reduction Gear: RA: 14 Strain Wave Reducer, DEC: 14 Strain Wave Reducer
Drive: RA: Dual Encoder Servo Direct-drive motor with SWR, DEC: Direct-drive motor with SWR
Motor: BLDC Servo Motor
Weight: 3.2kg/7lbs
Load Capacity*1: 8kg/13kg(with counterweights) @20cm RA
Material: AL6061, Stainless Steel, Brass, ABS
Brake: No mechanical brake (Motor provides holding torque when powered)
Saddle: Vixen & Losmandy
Saddle Port A: 5/9/12/15/20V PD3.1/ 0~20V PPS 5A@Max
Saddle Port B: USB Mount PC Connection
Counterweight Shaft: M12 Shaft (1.75mm Pitch)
Slew Rate: 5°/s (Standard 1/2Max), 10°/s (Max)
Adjustment Range: ALT 0~90° (3-position coarse adjustment, 30° fine adjustment), AZ ±8°
Operating Temp.: -25℃ ~ 45℃
Communication Protocol: ASCOM/INDI/LX200/INDIGO
Home Control: RA: absolute encoder DEC: optical homing sensor
Time/Location: Built-in GPS
Power: USB Type-C PD3.0 20V 5A / DC 5.5*2.5mm to USB Type-C Cable 12V-24V 5A
Wireless*2: WIFI 802.11g/Bluetooth

*1. Standard: Recommend for better performance; Max Allowed: Load can be moved by mount; User should also consider the tripod stability and center of gravity to use counterweights properly.

*2. Wireless functionality may vary by country and region.

In the Box

WD-15E Mount Head * 1
Hand Controller * 1
USB Type-C to A Data Cable (for PC connection) * 1
USB Type-C to C 1m Cable * 1 (for hand controller connection or 100W PD)
USB Type-C to C 2m Cable * 1 (Mount power cable)
PD Type-C to DC 5.5*2.5mm 12V 5A 1m cable * 1
Soft case
Hex wrench

Manuals & Warranty

Warpastron 3-Year Warranty

WD-15E Drawing
