ZWO AM3N Harmonic Equatorial Mount

Please Note : Power cable not included: ZWO-DC12V5A-US

Why AM3N ?

AM3N vs AM3

Engineered for simplicity: two cables deliver a clean, efficient setup that gets you imaging faster than ever.

Strain Wave Gears for Precision Control

Astrophotography demands both stability and accuracy, and the adoption of a custom-engineered strain wave gear system addresses these needs directly. The gear train is designed to minimize periodic error, provide exceptionally smooth motion, and deliver high torque capacity—factors critical for long-exposure imaging.

Within the mount, a strain wave gear reducer works in concert with a synchronous belt drive, yielding precise control and a notable 300:1 reduction ratio. Each unit undergoes individual testing, and a periodic error (PE) curve report is supplied with every mount, offering users verified performance data for confidence in the field.

ZWO Quality Control

ZWO measures each mount and equips it with an exclusive PE curve before it leaves our factory.

The X-axis represents the drive angle, and the Y-axis shows the periodic error, which is consistently maintained within ±15 arcseconds.

Integrated Type-C and DC Power Ports

The upgraded AM3N weighs just 4.1 kg (9.04 lbs), with a newly optimized design for improved portability and cable management. The dovetail saddle now integrates Type-C and 12V DC ports to minimize clutter, while a magnetic hex key attaches directly to the mount for convenient storage.

Powerful Payload Capacity: 8 –13 kg

The mount supports up to 8 kg (17.6 lbs) without counterweights—double its own weight—and up to 13 kg (28.7 lbs) with counterweights, more than triple its weight.

This payload capacity easily accommodates a wide range of telescopes, providing a stable and reliable foundation for your viewing and imaging needs.

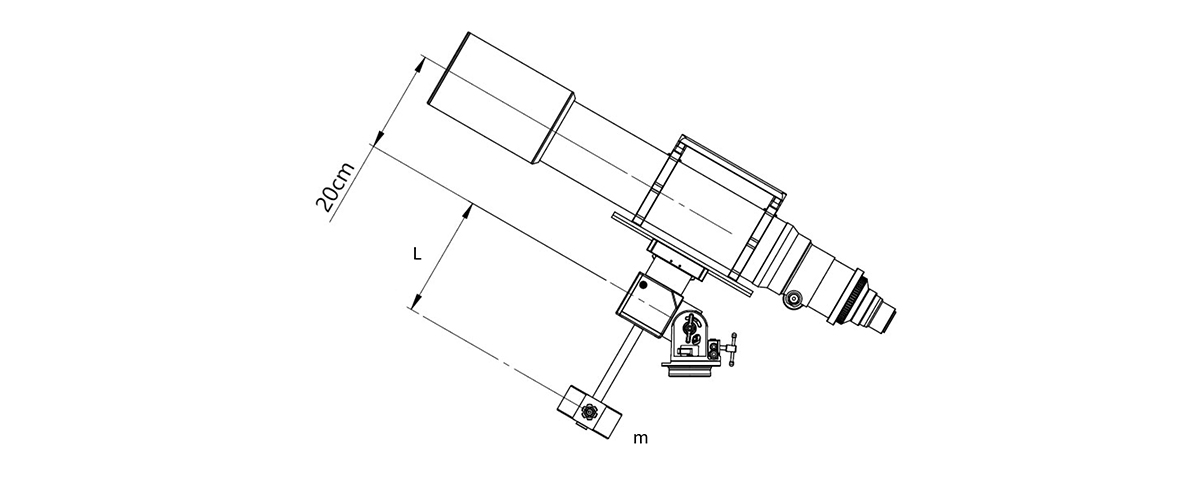

It is recommended to use a counterweight of ≤5 kg. When using a 5 kg counterweight, the lever arm should be installed within the range of 20 cm to 30 cm.
For counterweights of other masses, the installation position can be calculated as follows:
Assume the counterweight mass is m kg. The allowable lever arm length L is defined by:
10 N·m ≤ m × g × L ≤ 15 N·m
where g = 9.8 m/s², which can be approximated as 10 m/s².
For example, if a 2 kg counterweight is used, the allowable range of L is from
10 N·m / (2 × 10 m/s²) = 0.5 m to
15 N·m / (2 × 10 m/s²) = 0.75 m.

Equatorial Mode / Alt-azimuth Mode

Can be switched via SkyAtlas App or Hand Controller.

Status Light Indicator

All-round 0°-90° Altitude Scale

The AM3N features a versatile altitude adjustment design ranging from 0° to 90°, allowing for unrestricted use across both low-and high-latitude regions.

Gear 1: Rotate the altitude tension knob for adjustment between 0 and 60.
Gear 2: Loosen the M6 hex screw, and allows adjustment from 30 and 90.

Evolved Portable Control Wi-Fi & Bluetooth Connectivity

The AM3N supports Bluetooth control, enabling direct smartphone control — no Hand Controller required.  Wi-Fi functionality is available through the hand controller, which contains the WiFi transmitter. Ideal for travel and field use, just bring your phone and you're ready to observe or image.

Wireless Control via Mobile Apps

Operate the mount directly from your phone with an intuitive app featuring an on-screen joystick, Tonight’s Target, GOTO, Live Preview, and more.

The mount is compatible with ASCOM, INDI, ASIAIR, and other platforms.

Seamless ASIAIR Integration

Experience astrophotography at its best with the ZWO Ecosystem—where every component works together in perfect harmony.

Technical Specifications

In the Box

• Carrying Case

• AM3N Mount
• 2m USB2.0 cable (Type-B to Type-A)
• 1-meter USB 2.0 Cable (Type-C to Type-A)
• Performance Sheet (Periodic error test report)
• Quick Start Guide
• Hand Controller
• 2m Hand Controller Cable
• M6 Allen key
