ZWO ASI294MC Pro Color Cooled (ASI294MC-P)

by ZWO
SKU ZWO-ASI294MC-P
Original price $0
Original price $1,419.00 - Original price $1,419.00
Original price
Current price $1,419.00
$1,419.00 - $1,419.00
Current price $1,419.00
🟢In Stock ! / En Inventaire !
 More payment options

We Have it in Stock? We're on it, shipping your order on the same day. *(Ordered before 1PM & Business Hours only)

If the item is unavailable: It may be in transit to us or on order with the supplier. If not, we will promptly place the order. In case of delays, we will keep you informed.

Description

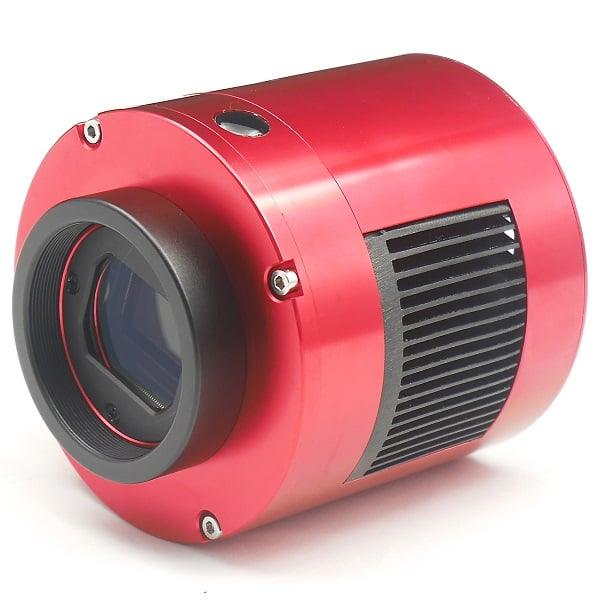

ZWO ASI294MC Pro Color Cooled

The ZWO ASI294MC Pro Color uses the Sony IMX294 sensor with a diagonal of 23.2mm. It has a 14bit ADC and low read noise.


IMX294CJK

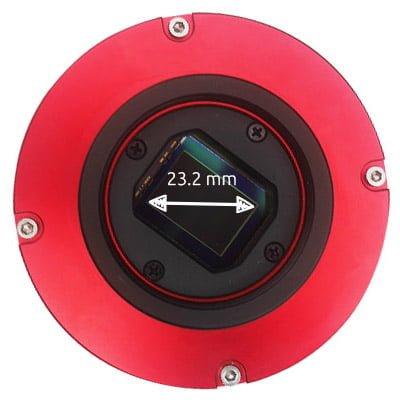

Sony 10.71M-Effective Pixel Color CMOS Image Sensor (official description from Sony site), with a diagonal of 21.63mm (4/3 format). ZWO has refined the sensor and remolded it to increase the diagonal to 23.2mm with approximately 11.71M-Effective pixels (4/3 format).

High-Sensitivity Type 4/3 CMOS Image Sensor that Supports 4K for Astronomic Cameras and Industrial Applications

The IMX294CJK sensor is the first in-house image sensor for astronomic cameras to adopt the 4/3 format and provides the necessary number of pixels for true 4k output at 120 frames per second (w/ ADC 10-bit output mode, the ASI294MC can run up to 25fps at 4k format when used with USB 3.0). In addition, the use of larger-sized pixels achieves SNR1s of 0.14 lx* which is very close to the value of the ASI224 (0.13 lx*).

Exceptional low-illumination performance

Exceptional low-illumination performance of SNR1s: 0.14 lx is realized by use of a large-size optical system and by expanding the area per pixel to 4.63 µm. This makes the IMX294CJK ideal for astronomic camera market applications that require low-illumination performance.

USB3.0 & 256M DDR3 Memory

The ASI294MC Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.


14bit ADC w/ 13 stops DR

The ASI294 has a 14bit ADC unit, allowing it to achieve 13 stops of dynamic range. This is an excellent characteristic for deep sky imaging, which is inherently high dynamic range. At 13 stops, the ASI294 has even more dynamic range than the ASI1600.

HCG Mode

HCG (high conversion gain) mode, which reduces read noise to even lower levels at higher gain without loss to dynamic range, is automatically enabled when the gain setting is 120 or higher. Read noise will drop under 2e-, while dynamic range will remain at 13 stops.


Full well Capacity

63700e full well, which is 3 times than ASI1600’s capacity. Even bright stars won’t saturate under long exposure.This camera can achieve higher SNR(signal to noise ratio) with just one single exposure.

Reliable Mechanics

ASI294MC Pro has same mechanics as ASI1600 Pro. There are four screws that seal the sensor chamber. Our camera design has been extensively tested and is very stable. Even when used in higher humidity environments, ASI294MC Pro will still work fine without dew problems.

High QE

Technical Specifications
