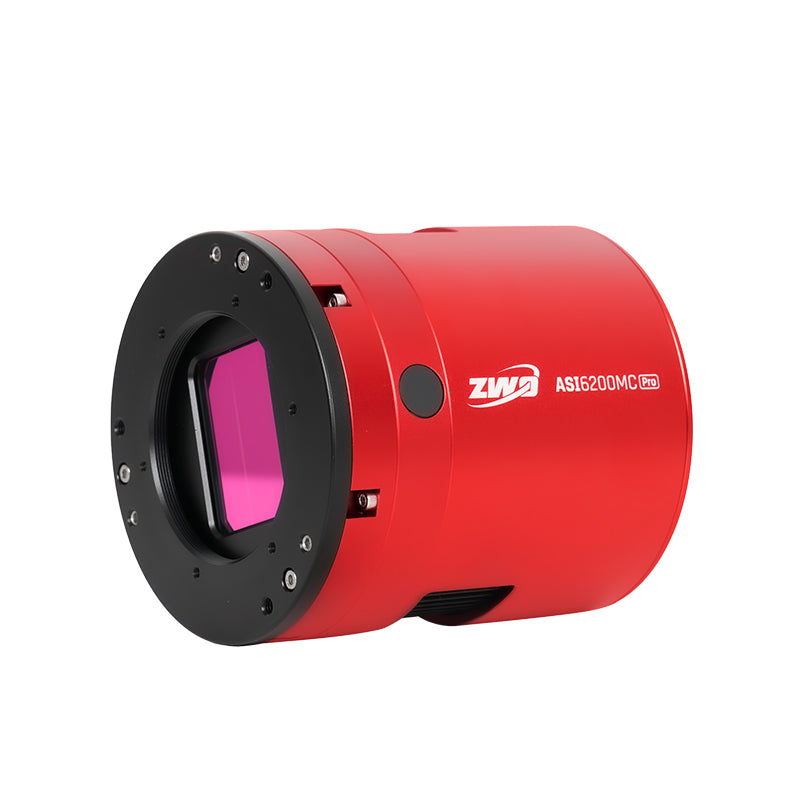

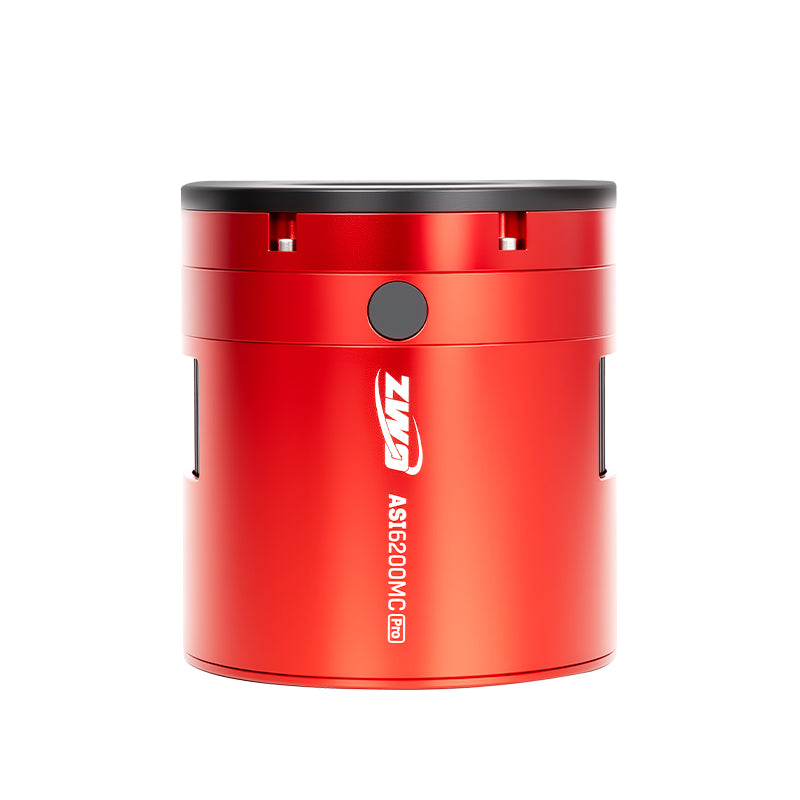

ZWO ASI6200MC Pro Color Cooled (ASI6200MC-P)

ZWO ASI6200MC Pro Color Cooled

The ZWO ASI6200MC Pro Color uses Sony’s latest back-illuminated IMX455 Full Frame format native 16-bit ADC sensor. It has 3.76µm, ultra-low 1.2e readout noise and an innovative breakthrough resulting in zero amp-glow.

Amazing Craftsmanship, Lightweight body, Solid image quality

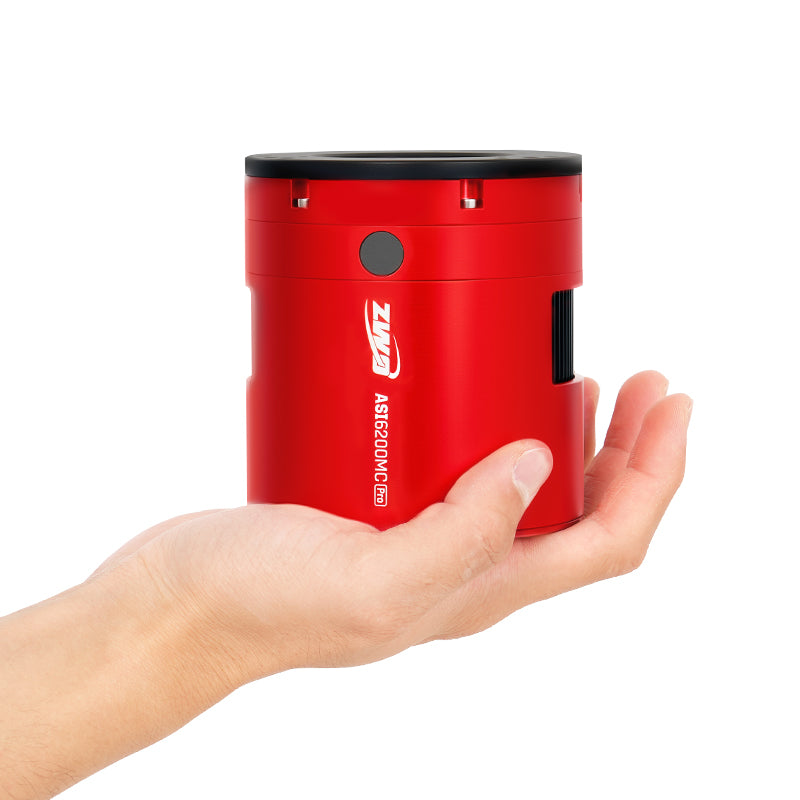

We have been working hard to reduce the weight of the camera while improving the performance of the camera. After years of technical accumulation and repeated weight loss experiments by ZWO engineers, ZWO finally concentrated the ASI6200 to 0.7KG

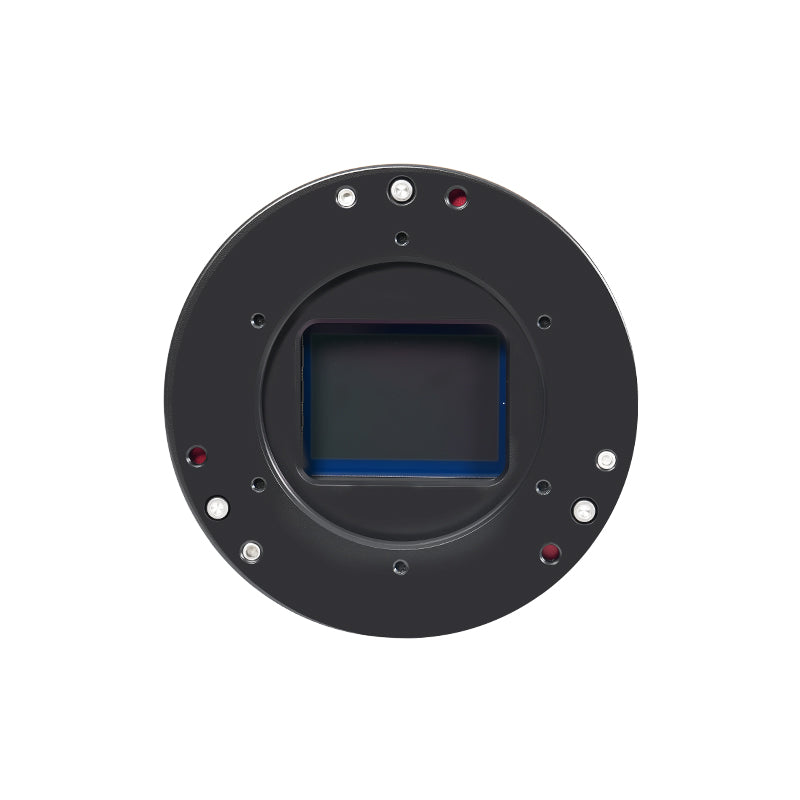

Full Frame format

The ZWO ASI6200MC Pro Mono uses full frame format, the sensor length and width are 36mm x 24mm and the diagonal is 43.3mm. This is a 62MP camera with a small pixel size of 3.76um that can accommodate a large well depth of 51.4ke.

Native 16bit ADC

ASI6200MC Pro is our first batch of CMOS astronomy cameras with 16bit ADC. This 16bit ADC is not a CCD 16bit ADC, and it can really achieve a dynamic range output of 14 stops. This significantly improves the image sharpness and contrast, and the color changes are smoother and more natural.

IMX455 backlit sensor

Sony’s back-illuminated CMOS image sensor improves sensitivity and noise reduction – the key factors to enhancing image quality, while radically realigning their fundamental pixel structure from front-illumination to back-illumination. It has retained the advantages of CMOS image sensors such as low power consumption and high-speed operation.

With a conventional front-illumination structure, the metal wiring and transistors on the surface of the silicon substrate that form the sensor’s light-sensitive area (photo-diode) impede photon gathering carried out by the on-chip lens. A back-illuminated structure minimizes the degradation of sensitivity to optical angle response, while also increasing the amount of light that enters each pixel due to the lack of obstacles such as metal wiring and transistors that have been moved to the reverse of the silicon substrate.

Sony has newly developed a unique photo-diode structure and on-chip lens optimized for back-illuminated structures, that achieves a higher sensitivity and a lower random noise without light by reducing noise, dark current and defect pixels compared to the conventional front-illuminated structure.

Camera Performance

The ASI6200MC Pro has excellent performance with a dynamic range of up to 14stops. When the gain value is 100, the magical HCG high gain mode is turned on, the readout noise is greatly reduced, and the dynamic range is basically unchanged. It is recommended to set the gain to 0 or gain 100 in deep space.

Zero Amp Glow

Traditional CMOS sensors produce a weak infrared light source during operation quite often seen in the corner of uncalibrated images as the tell tale signs of ‘amp glow’. As the ASI6200MC Pro uses zero amp glow circuitry, you won’t have to worry about amp glow even when using high gain, long exposure imaging.

Anti-dew

ASI6200MC Pro comes with the polyimide heater that can avoid any dew problems. The heater can be turned off in software if you want to save power.

QE value

We suppose that the QE peak value of the ASI6200MC Pro is above 80%.

Two-stage TEC cooling, ultra-low dark current

ASI6200MC Pro uses two stage TEC cooling that can lower the CMOS sensor temperature to more that 35c below ambient, which can greatly reduce dark current generation and sensor noise even with extended exposure times.

The unique dark current suppression technology can even further reduce dark current noise.

At a cooling temperature of 0 °, the dark current noise is only 0.003e/s/pix. Which means 300s exposure can only cause 0.9e dark current noise, which is completely negligible!

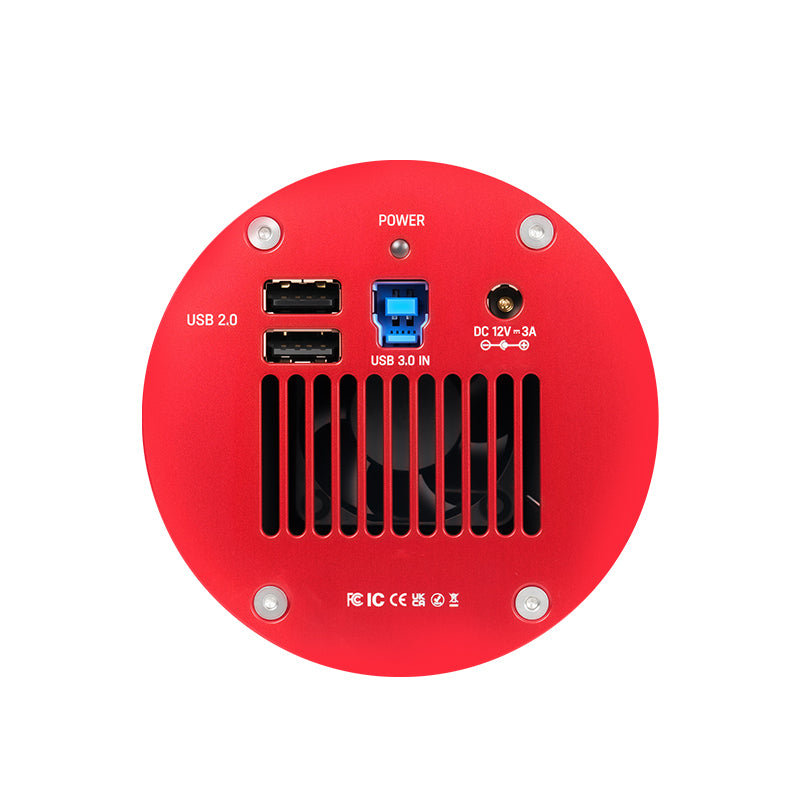

USB3.0 & 256M DDR3 Memory

The ASI6200MC Pro is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 cache to ensure stable and secure data transmission. Under long exposure, it effectively avoids frame dropping and greatly reduces the glow effect caused by slow reading speed.

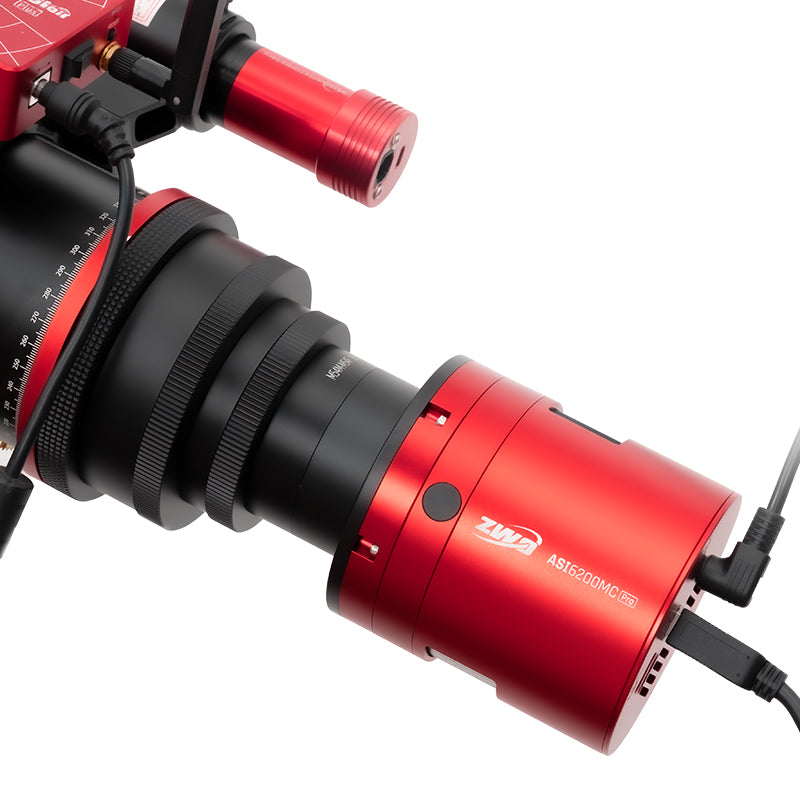

Connecting Lens Diagram

1. Nikon-M54 adapter
2. EOS-M54 adapter
3. Nikon lens
4. Canon lens

Technical Specifications

In the Box

• Camera
• M48-M42 Adapter
• 2m USB3.0 Cable
• 2x 0.5m USB2.0 Cable
• M54-M48 21mm Adapter
• M54-M48 16.5mm Adapter
• 2″ Cover
• Hexagon Wrench

Manuals & Warranty

ZWO 2-Years Warranty

ZWO General Product & Software Manuals

ZWO ASI6200 55mm Back Focus Solution

ZWO ASI6200 Mechanical Drawing
