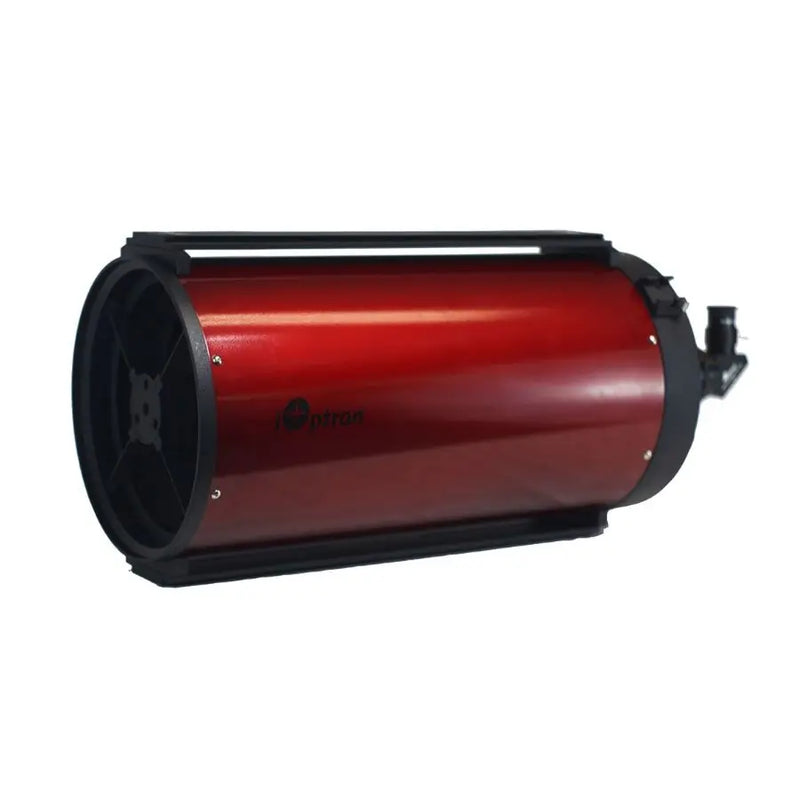

iOptron Photron 10" Ritchey-Chrétien Telescope (6113)

The iOptron® Photron™ Ritchey-Cretien design telescopes, feature low thermal expansion quartz primary and secondary mirrors with ninety-nine percent reflective dietetic coatings. The RC optical design delivers coma, spherical and chromatic aberration free results, perfect for color or monochrome imaging. A fixed position primary mirror eliminates image shift that occurs from focusing with other telescope designs. The iOptron RC10 comes with a 3" dual-speed linear-bearing Crayford focuser. Three focuser extension rings are provided for a “flex-free” solid extension as a means to take up any unneeded back focus. Its steel tube is equipped with 10 knife edge baffles to diminish contrast reducing stray light, improving the instrument in both visual and imaging uses. A RC10 model comes with top and bottom dovetail plates adding rigidity to the tube while providing attachment points for the mount and other accessories to be used.

Features

• Coma free, chromatic aberration-free, spherical aberration-free optics
• 250mm (10") optical aperture
• 2000mm focal length
• f/8 focal ratio
• Fixed primary
• Low thermal expansion quartz mirrors

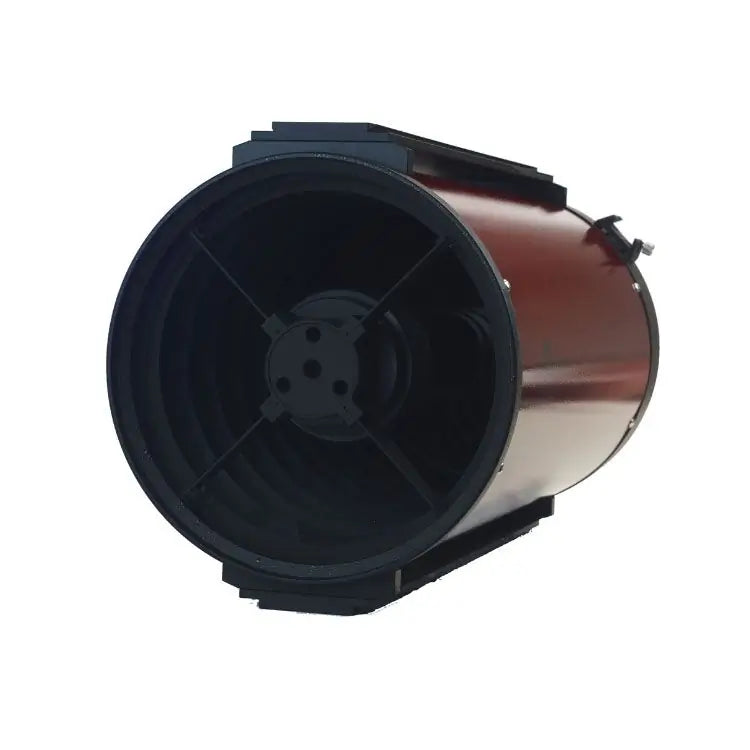

• Multiple Knife-Edge Baffle System
• 3.3" Dual-dpeed Crayford focuser
• Finder scope base and two dovetails bars
• Optional finder scope, diagonal and 1.25" eyepiece
• Optional iOptron Electronic Focuser (#8451)

Technical Specifications

Optical Design	Ritchey-Chretien
Clear Aperture	250mm
Focal Length	2000mm
Focal Ratio	f/8
Resolving Power	0.46 arc seconds
Limiting Magnitude	14.7
Highest Useful Magnification	295X
Secondary Mirror Size	110mm in diameter

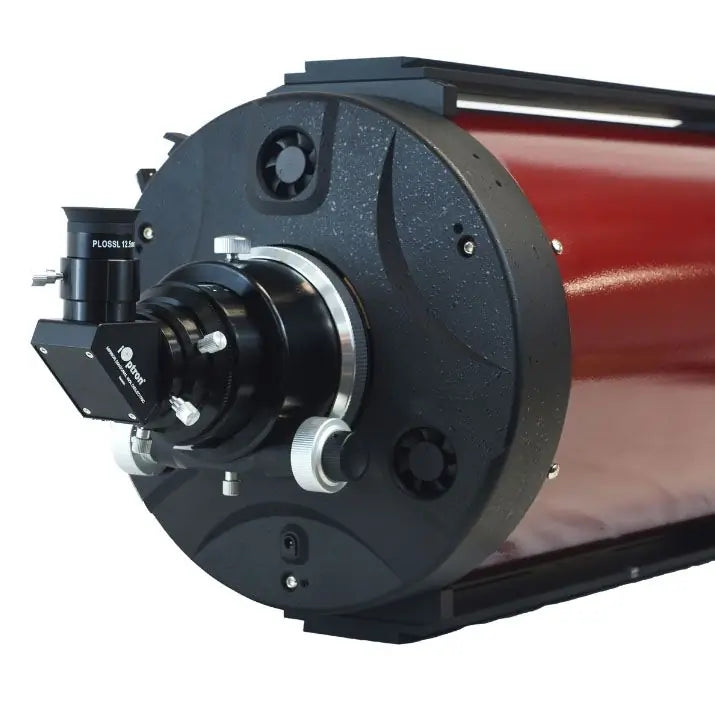

Focuser	10:1 Crayford dual-speed
Focuser size	3.3”
Dovetail Bar	Losmandy-style
Mounting Bar (Top)	Losmandy-style
Finderscope Base	Yes
Finder scope	Optional
Tube material	Steel
Tube Length	28.4”
Tube Weight	35 lbs
OTA Primary Mirror Cooling Fan	Yes (three built-in fan, with battery holder)
Other Accessories	2” to 1.25” compression ring adapter; 1" long extension tube X2 2" long extension tube X1
Gross Weight	48 lbs
Warranty	One year limited

In the Box

• iOptron Photron 10" Ritchey-Chrétien Telescope

• 3" dual-speed Crayford focuser
• 2X25mm, 1X 50mm focus extension
• 1.25" accessory adapter
• Top and bottom Losmandy dovetail bars

Warranty & Manuals

iOptron 1-Year Warranty
