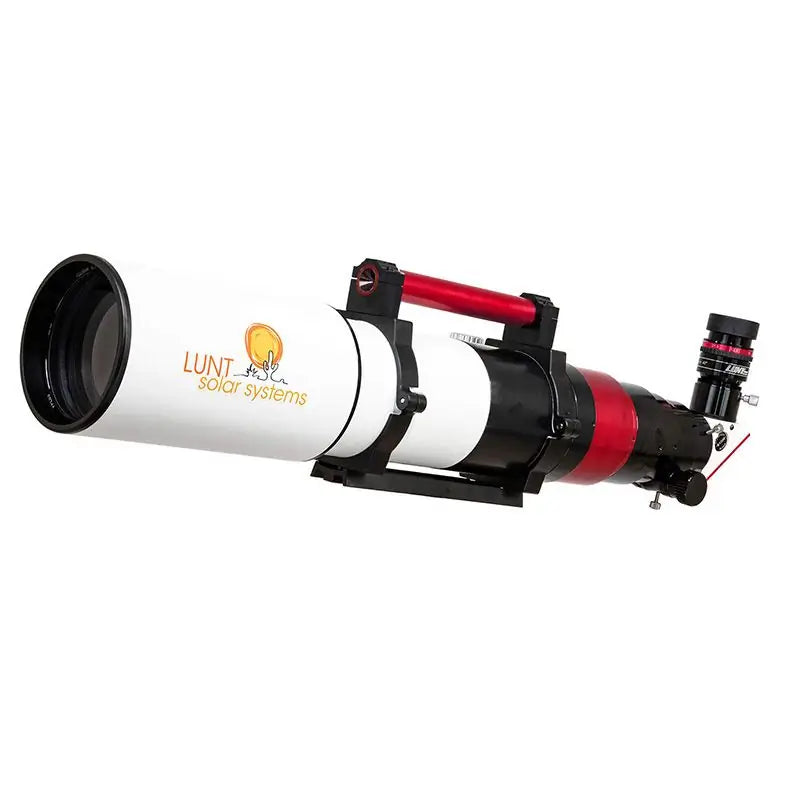

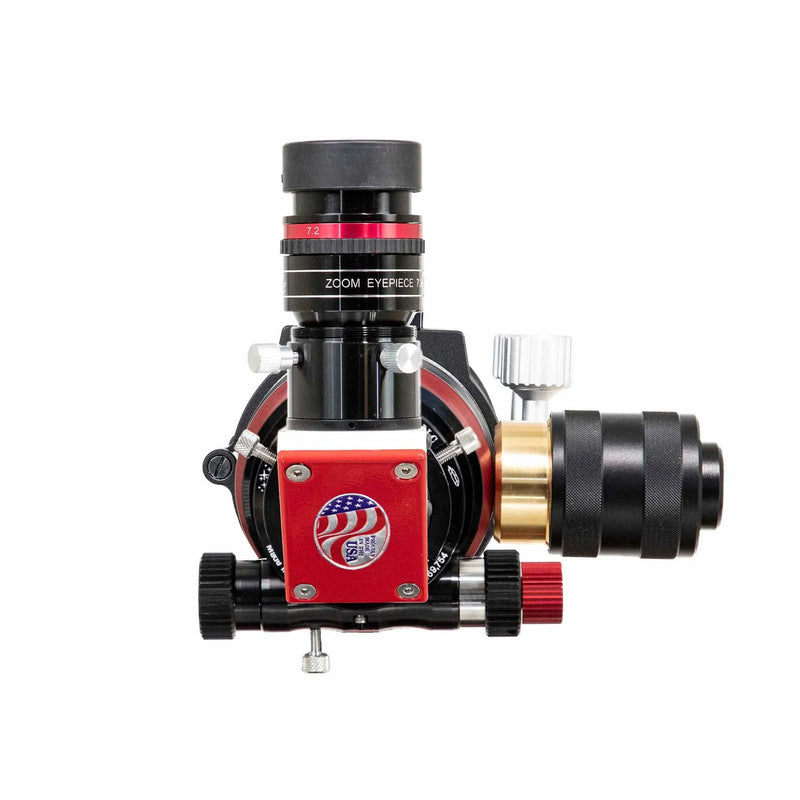

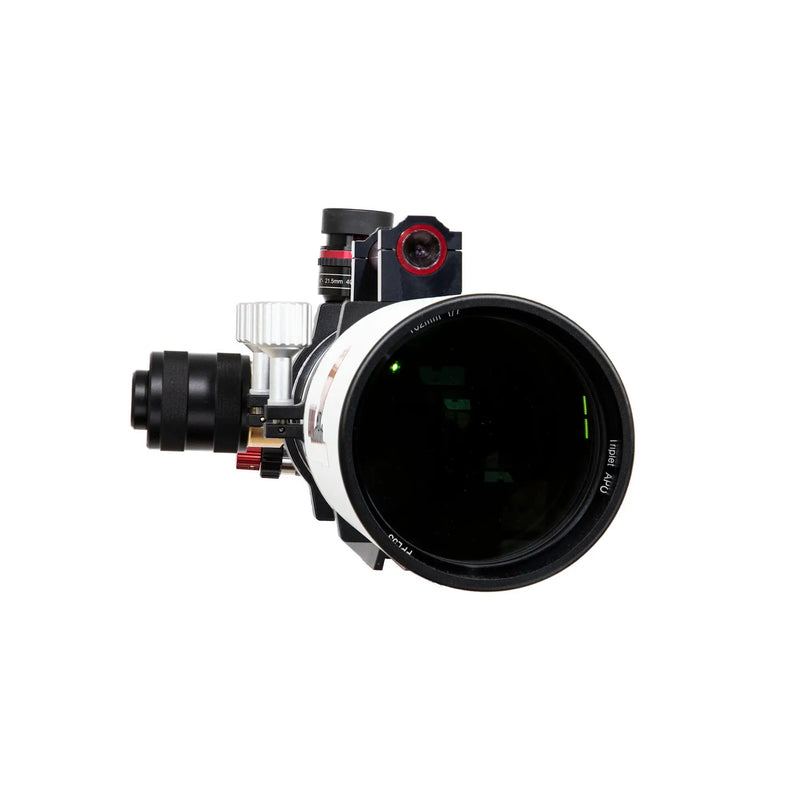

Lunt 100 mm Universal Telescope
Enjoy everything the Sun has to offer — prominences, surface granulation, active regions, filaments and more seem to leap from our closest star, all captured in the stellar quality performance you expect from a Lunt Telescope.
When the Sun sets, simply remove your hydrogen alpha module, replace your focuser, and let the nighttime in!
The Lunt 100 mm packs a powerful triplet ED APO lens (FPL53 glass) that will guide you across the Milky Way in stunning detail. Now you have a top-of-the-line, extra-low dispersion (ED) nighttime telescope to view planets, stars, the Moon and anything else in between!
* Blocking Filter is required to use this solar telescope.
Technical Specifications
Telescope Type: Universal Day and Night
Universal Capabilities: H-alpha, CaK, White Light, Lunar, Planetary, Deep Space, Terrestrial.
Aperture: 100 mm
Objective Type: Professional Grade APO Triplet
Objective Material: FLP53
Objective Coating: Ion Assist Broadband AR
Focal Ratio: F/7
Focal Length: 714 mm
Focuser Options: Dual Speed Lunt Crayford or Dual Speed Rack and Pinion.
Mounting: CNC Mounting Rings and Vixen Style Dovetail
Storage: Aluminum Finished Hard Case with Fitted Foam
H-alphaEtalon Type: Modular
Etalon Wavelength: 656.28 nm
Etalon Bandpass: <0.65 Å Single Stack, <0.45 Å Double Stack
Etalon Material: UV Grade Fused Silica
Telescope Weight: 12.7lbs
Etalon Tuning: Doppler True Barometric Pressure Tuning
Doppler Shifting: Instant
Blocking Filter Size: 12 mm, 18 mm, 34 mm, Diagonal and Straight Through
Blocking Filter Bandpass: 6 Å
Sun Finder: Red Dot Sun Finder Handle
CaK* Filter Type: Rear Mount CaK Diagonal
Filter Sizes: 12 mm, 18 mm, Diagonal and Straight Through
Filter Wavelength: 393.4 nm
Filter Bandpass: 2.2 Å
White Light* Filter Type: Front Mount Film Filter, Rear Mount White Light Wedge
Filter Bandpass: Broadband White Light. AR/UV Blocking
Lunar, Planetary, Deep Space, Terrestrial: Converts to a conventional professional grade APO triplet for all your nighttime requirements. See optional equipment for additional specifications.
Theoretical Max Magnification: 175 x
*Optional Capabilities
In the Box
-
Lunt 100 mm Universal Day & Night OTA
-
Ring set assembly (with dovetail & Red Dot Sun Finder handle)
-
Hard case with custom foam insert.
Kit:
Standard:
- 100mm ED Doublet Universal Day & Night Telescope
- H-alpha w/ B1200 blocking filter
- R&P focuser
- Mounting rings
- Red Dot Sun Finder
- 8" dovetail
- Hard case
- 19mm eyepiece
Enhanced:
- 100mm Universal Day & Night Telescope
- H-alpha w/ B1800 blocking filter
- R&P focuser
- Mounting rings
- Red Dot Sun Finder
- 8" dovetail
- Hard case
- 8mm, 12mm, 16mm, and 19mm eyepiece.
Premium Plus:
- 100mm Universal Day & Night Telescope
- H-alpha w/ B1800 blocking filter
- R&P focuser
- SFPT internal 0.35A double stack filter
- Mounting rings
- Red Dot Sun Finder
- 8" dovetail
- Hard case
- Zoom eyepiece
Warranty & Manuals
Lunt 5-Year Warranty
