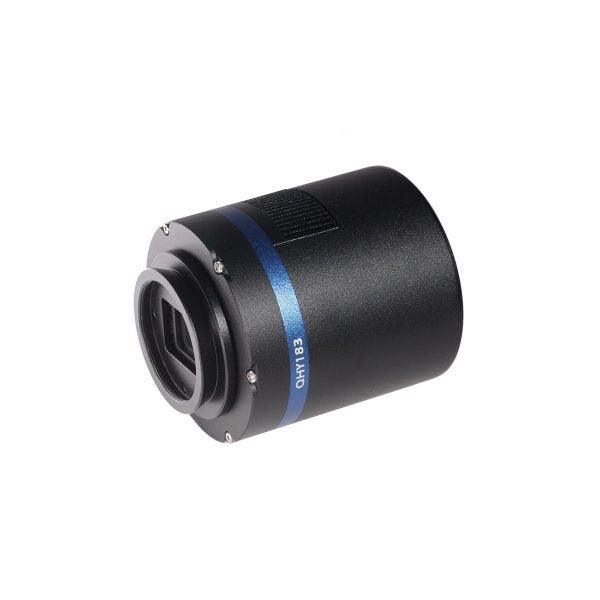

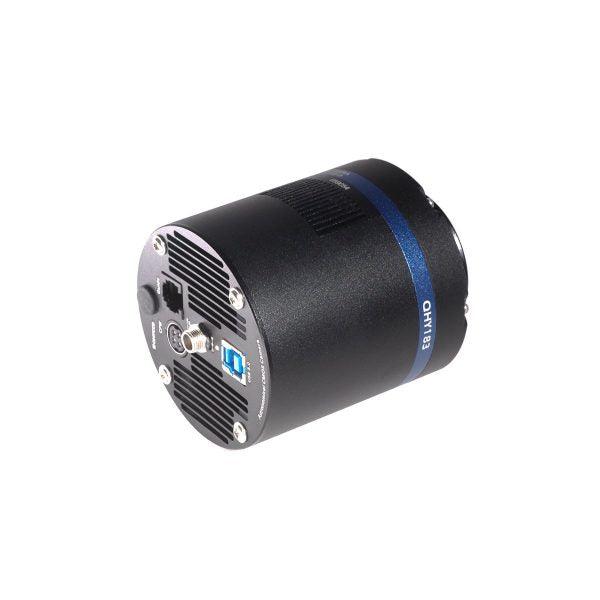

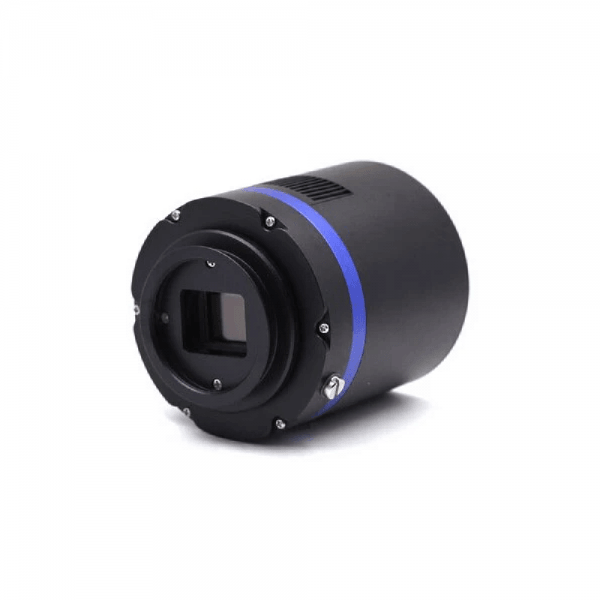

QHY183C/M Cooled CMOS Camera

Name: QHY183C/M Cooled CMOS Camera
Brand: qhyccd
SKU: QHY-QHY183M
Price: 1328.67 CAD
Availability: InStock

by qhyccd

SKU

$929.00 - $1,328.67

$929.00

$929.00 - $1,328.67

$929.00

Quantity

In Stock Product, We Try our best Shipping the same day you place the order. (Open Business Day)

QHY QHY183 Cooled CMOS Camera

Performance | 84% QE Back-Illuminated CMOS

The QHY183M and QHY183C use a 1-inch SONY back-illuminated IMX183 sensor with 20.48 million pixels at 2.4um. This sensor has high sensitivity with 84% QE and a read noise as low as one electron. The full well capacity is 15 - 16,000 electrons. Two-stage cooling yields -40C cooling delta. Because of the small pixels, high QE, good sensor size and the cooled design. The QHY183M/C is suitable for both DSO imaging and planetary imaging. And with the affordable price this camera is idea for both beginner and experienced astronomy photographer. Been selected as S&T.

High Resolution | 20.48 Megapixels Planets and DSO

With 20.48 megapixels, high resolution 2.4 um pixel size and up to 19 FPS frame rate, this camera is ideal for EAA real-time deep space observation, lucky imaging of deep space objects by capturing and stacking many short exposures. This can take great advantage of high resolution telescope optics, reduce the effects of atmospheric jitter, and obtain deep-sky images with rich details and high resolution. At the same time, short exposure can also reduce the requirements for tracking accuracy making the night more productive.

Image | 4K Ultra HD Video Support

Support 4096 × 2160 31FPS 4K Ultra HD 1:1 video output. In full resolution size it can output max 19FPS. In the ROI it can get much more higher in 8bit. This feature is idea for the planetary imaging and the astronomical live video broadcast.

Large Capacity Frame Buffer | Built-in 128MB DDRII Image Cache

The QHY183M/C has built-in 128MB DDRII full frame buffer that can help tremendously with slower computers. It also helps with USB2.0 connections by avoiding loss of frames after exposure and improves the data transfer stability with flow control.

Cooled CMOS | 1-Inch Format, 20.48MP High Value for Money

Back-illuminated imaging technology places the circuitry and electrodes behind the pixels on the back of the sensor, avoiding reflection and loss of light. The QHY183M\C back-illuminated CMOS camera not only has the high sensitivity of a back-illuminated sensor, but also ultra-low read noise, as low as one electron, making this camera extremely cost-effective.

USB3.0

Support 4096 × 2160 31FPS 4K Ultra HD 1:1 video output.

Amp Glow Supression

QHYCCD has developed a CMOS glow suppression function that greatly eliminates the amplifier glow during long exposures.

Anti-Fog Window Design

Two-stage cooling reduces the sensor temperature to -40° C below ambient. But the optical window has a built-in heating plate to prevent condensation, even in humid environments.

Technical Specifications

Model	QHY183M(Monochrome) QHY183C(Color)
CMOS Sensor	SONY IMX183 BSI CMOS
AR Coating On Sensor	Yes
Pixel Size	2.4um*2.4um
Effective Pixel Area	5544*3694
Effective Pixels	20 mega
Effective Image Area	13.3mm*8.87mm
Fullwell	15.5ke-
Peak QE	84% (Monochrome)
AD Sample Depth	12bit (output as 16bit and 8bit)
Sensor Size	Typical 1 inch
Max Full Frame Rate and ROI Frame Rate	55443864 Full Resolution 19FPS@8BIT 7.5FPS@12BIT 40962160 4K HD Video 31FPS@8BIT 12FPS@12BIT* 19201080 HD Video 60FPS@8BIT 24FPS@12BIT 800600 SVGA 106FPS@8BIT 42FPS@12BIT 640480 VGA 130FPS@8BIT 53FPS@12BIT And more resolutions (Support any region ROI)*Note: The 16bit ROI for above 7.5FPS requires the QHYCCD SDK (qhyccd.dll) version 2019.2.27 or later. The old SDK only support 7.5FPS fixed frame rate. You can go to https://www.qhyccd.com/index.php?m=content&c=index&a=show&catid=127&id=162 to obtain the lastest SDK.
Readout Noise	2.7e-@lowest gain 1.0e@high gain
Dark Current	0.0024e/pixel/sec @ -15C
Exposure Time Range	50us-3600sec
Anti-Glow Control	Yes
Shutter Type	Electric Rolling Shutter
Computer Interface	USB3.0
Built-in Image Buffer	128MByte DDR2 memory
Non-volatile memory / On camera storage	Build-in total 512Kbytes Flash Memory. 100Kbytes user-accessible space for stellar ROI frames for analysis of exoplanet investigation, occultations, atmospheric seeing messurement, focus , optic analysis etc. Support 100100 image x 10rames 5050 image x40frames. 2525 image x160frames 1010 image * 1000 frames （total frame numbers is based on 8bit image）
Cooling System	Dual Stage TEC cooler (-40C below ambient）
Anti-Dew Heater	Yes
Telescope Interface	M42/0.75
Optic Window Type	QHY183M: AR+AR High Quality Multi-Layer Anti-Reflection Coating QHY183C: IR cut filter
Back Focal Length	see the setup combination table in the bottom of this page
Weigth	650g
