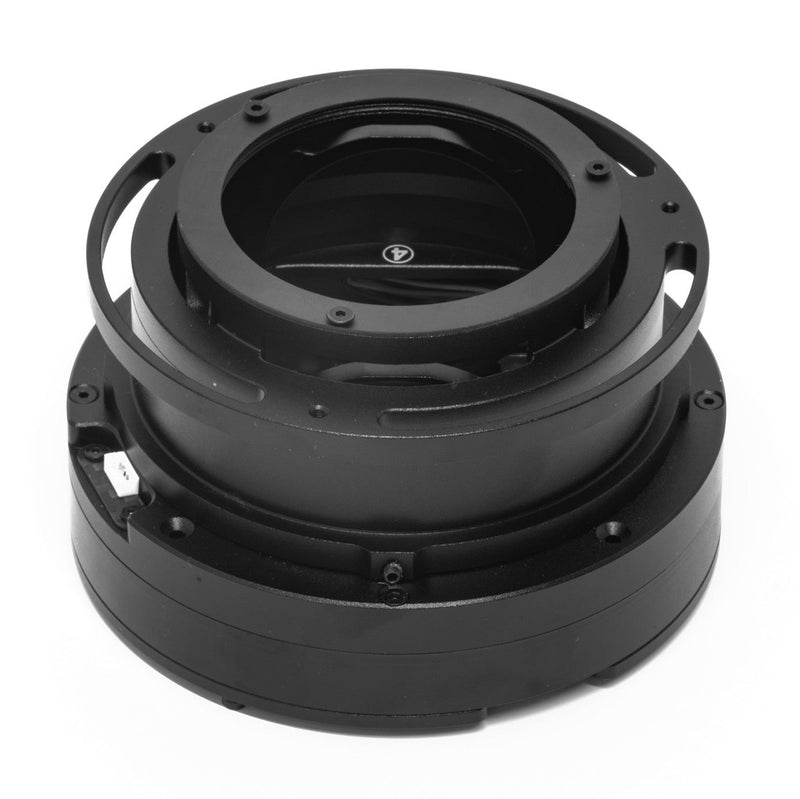

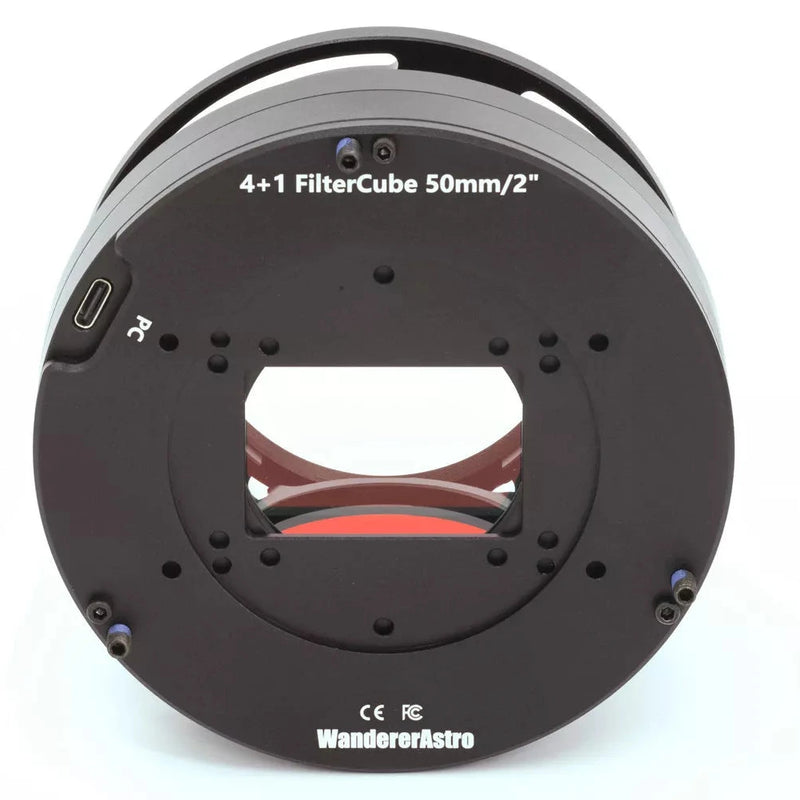

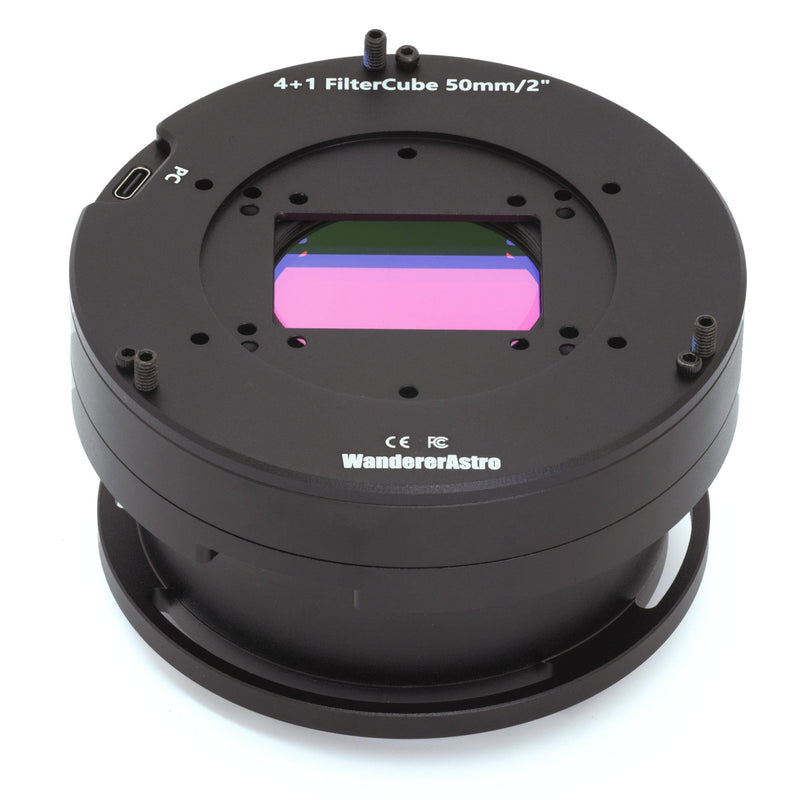

WandererAstro FilterCube 2"/50mm
Highlights
- 5-Position Filter Wheel
- Supports 2" / 50mm Filters
- Built-in Manual CAA
- Built-in Rear Tilt Adjuster
- Full Anti-Reflection Design
- Zero Obstruction for RASA 11/36
Patented Side-Flip Filter System
4 Side-Flip Filter Positions + 1 Dedicated L Position. Supports 2" Mounted & 50mm Unmounted Filters
*Images on this page are for demonstration purposes only. Filters, cameras, telescopes, and other accessories shown are not included.
Zero Optical Obstruction
With an outer diameter of only 114mm, the Wanderer FilterCube introduces zero optical obstruction when installed on RASA 11/36 systems. It’s not just the magic of space efficiency — it’s a showcase of WandererAstro’s uncompromising industrial design philosophy. (HyperStar NOT supported!)
Compatible with Most Cameras
With an optical thickness of 60.3mm, the Wanderer FilterCube meets the back focus requirements of the RASA 11 when used with cameras featuring a 12.5mm back focus without any additional adapters. For RASA 36 systems, the Wanderer FilterCube supports cameras with a back focus less than 17.5mm requiring additional adapters from WandererAstro, including Moravian C1x cameras.
Built-in CAA & Tilt Adjuster
Integrated manual CAA and a 3-point rear tilt adjuster make operation simpler. A unique access-slot design also allows collimation when FilterCube is installed. Professional means thinking through every detail — with no compromises.
Anti-Reflection Design
After countless rounds of testing and real-world imaging, we engineered the FilterCube with optimized mechanical dimensions and extensive anti-reflection measures to minimize common RASA imaging issues such as ghosting, rainbow artifacts, strange halos, and flat frames calibration problems.
Lightweight and Rigid
Constructed from robust aluminum alloy with partial carbon fiber components, the Wanderer FilterCube weighs only 385g while maintaining exceptional rigidity and durability.
Multiple ASCOM Connections
You can connect multiple Wanderer FilterCubes to a single PC and control each device independently. This is especially useful for sky survey systems and users running multiple RASA telescopes simultaneously.
Technical Specifications
| Model |
Position |
Supported Filters |
Weight |
| WFC50 |
5 |
2’’ Mounted filters (Filter Cell excluding threads ≤ 6mm, threads ≤ 3mm) and 50mm unmounted filter (1.9 – 3.5mm) |
385g |
| Unmounted filters thinner than 2.5mm require additional filter shims (sold separately) |
| Data / Power : USB 2.0 Type-C 0.5A |
In the Box
- FilterCube
- 0.2m Type-C Cable
- 0.5m Type-C Cable
- Filter Masks
- M2.5x10 Countersunk screws
- M2.5x6 Countersunk Screws
- M3x5 Countersunk Screws
- M2x4 Cup Head Screws
- 1.5mm Hex key
- 2mm Hex key
Warranty
Wanderer Astro's 2-year Warranty
